Configured with a Block Kit With Factory Overload (2-leaf) rear lift and Nitro Series shocks. The Nitro Series features an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.
Overview

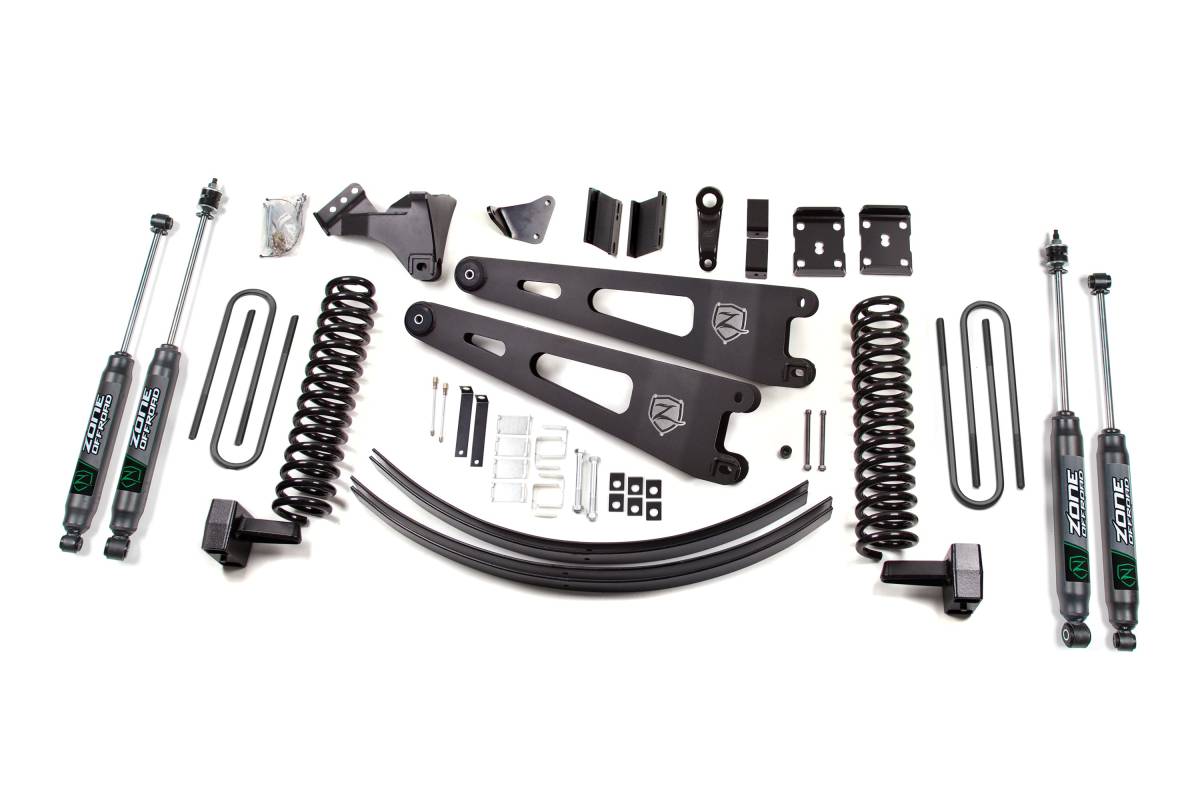

This 6-inch Radius Arm Lift Kit is designed for 2008–2010 Ford F-250 and F-350 Super Duty 4WD Diesel trucks. The kit provides 6 inches of front lift via coil spring and drop bracket and 4 inches of rear lift via block and add-a-leaf, enabling clearance for up to 37-inch tires. High-strength radius arms correct caster, improve tire clearance, and maximize ground clearance.
Features
- Brake line relocation brackets allow re-use of factory brake lines
- Bump stop extensions properly limit up-travel to protect the vehicle
- Dual rear Add-A-Leaf Kit provides additional lift and improves weight capacity
- Heavy-duty radius arms improve strength, allow additional tire clearance, and increase ground clearance over radius arm drop kits
- High-strength, 1/4-inch steel radius arms correct caster, improve tire clearance, and maximize ground clearance
- Rear lift block and longer U-bolts for easy installation and level stance
- Steering components included to ensure smooth post-installation operation of the steering system and factory-consistent vehicle handling characteristics
- Sway bar relocation brackets maintain operating angle for reduced body roll
Specifications
- Front Lift Method: Coil Spring & Drop Bracket
- Front Lift Height: 6 inches
- Rear Lift Method: Block & Add-A-Leaf
- Rear Lift Height: 4 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 6 hours
- Installation Difficulty: Moderate
Important Notes
- Although extremely rare, front and/or rear drive-line vibration may occur and require drive-line modification.
- Factory wheels fit when paired with factory/original equipment tire size.
- This kit is not designed for dually models, but may be easily adapted to accommodate your truck. Please contact customer support for assistance.
- This lift will require replacing your truck's factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
- Exhaust modification may be required to clear the front driveshaft on gas models. See installation instructions for more information.
- Two-piece rear drive shaft: Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
