Configured with Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, a 2-inch diameter black powder-coated steel body, and application-specific valving with a long-lasting clear anodized finish.
Overview

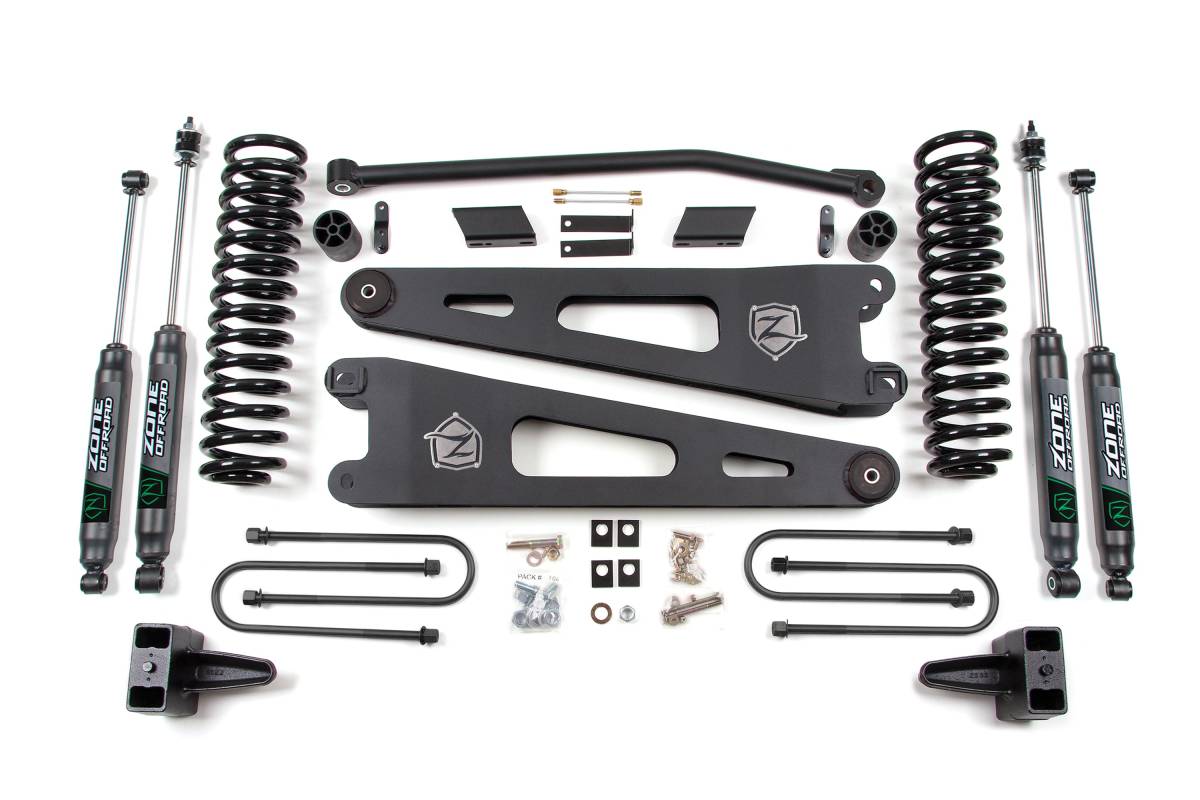

This 4-inch Radius Arm Lift Kit with rear block lift is designed for 4WD 2008–2010 Ford F-250 and F-350 (Gas) trucks. It provides additional ground clearance and accommodates tires up to 33 inches in diameter.
Features
- Full-length replacement coil springs add ride height while maintaining ride quality
- Heavy-duty track bar re-centers the front axle, adds strength, and limits lateral movement
- High-strength 1/4-inch steel radius arm construction corrects caster, improves tire clearance, and maximizes ground clearance
- Rear lift block and longer U-bolts for easy installation and a level stance
Specifications
- Front Lift Method: Coil Spring & Drop Bracket
- Front Lift Height: 4 inches
- Rear Lift Method: Block
- Rear Lift Height: 5 inches
- Shocks Included: Yes
Installation
- Estimated Time: 6 hours
- Difficulty: Moderately Easy
Important Notes
- If your vehicle is equipped with both a stock 4-inch rear block and a top-mounted overload/helper spring, select the longer 18.5-inch Rear U-Bolts.
- This kit is not designed for dually models, but may be easily adapted to accommodate your truck. Please contact customer support for assistance.
- This lift will require replacing your truck's factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
- Exhaust modification may be required to clear the front driveshaft on gas models. See installation instructions for more information.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
