7 Inch Radius Arm Lift Kit | 2023-2026 Ford F250/F350 Super Duty 4WD Diesel | w/ Nitro Series Shocks | Zone Offroad

Configured with Nitro Series shocks for reliable everyday and off-road performance.

Overview

Zone Offroad offers 7" radius arm lift kits for 2023–2026 Ford F250/F350 Super Duty 4WD diesel trucks. These kits include everything needed to properly lift your Super Duty and provide clearance for up to 37" tires. All Zone lift kits are backed by Factory Protection Plus, which includes a 5-year/60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

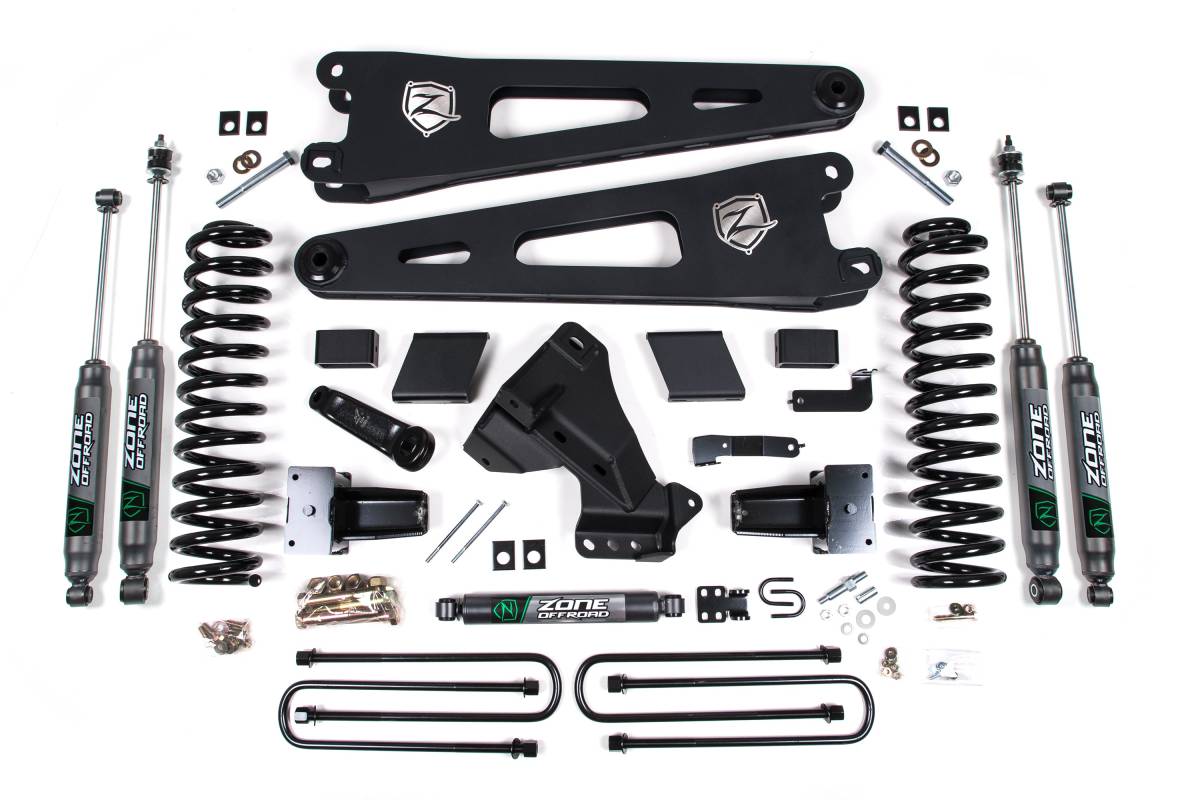

Features

• Heavy-duty fabricated steel radius arms that correct caster alignment while maximizing ground clearance
• Forged pitman arm to correct steering angles
• Heavy-duty fabricated track bar relocation bracket to recenter the front axle
• Full-length coil springs — gas or diesel specific

Specifications

• Front Lift Method: Coil Spring & Radius Arm
• Front Lift Height: 7"
• Rear Lift Method: Block
• Rear Lift Height: 4.5"
• Lift Height Range: 6–7.5"
• Shocks Included: Yes

Installation

• Estimated Time: 4–6 hours
• Difficulty: Difficult
• Tools Required: 30mm Socket, 46mm Socket, Hydraulic Floor Jack and Jack Stands, Pitman Arm Puller

Important Notes

• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
• When adding the Dual Stabilizer option, you will get the dual opposing steering stabilizer in addition to the single OE Replacement.
• Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• Some trucks with a rear drive-line vibration may have a recall from Ford regarding the rear axle (Safety Recall 21S31). Zone recommends having this performed prior to installing the lift.
• Does not fit vehicles with radius arm mounted ride height sensors.
• Fits SRW models only.
• Recalibration of your vehicle's Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
• 37x12.50 tires may require minor trimming.
• Factory wheels fit when paired with factory/original equipment tire size.
