Configured with a Block Kit and Add-A-Leaf rear lift option, delivering a 4" rear lift height and a total lift range of 6"–7.5". The add-a-leaf helps refresh worn factory leaf springs and improves rear performance. Includes steel rear lift blocks with new center pins designed for correct pinion angles.

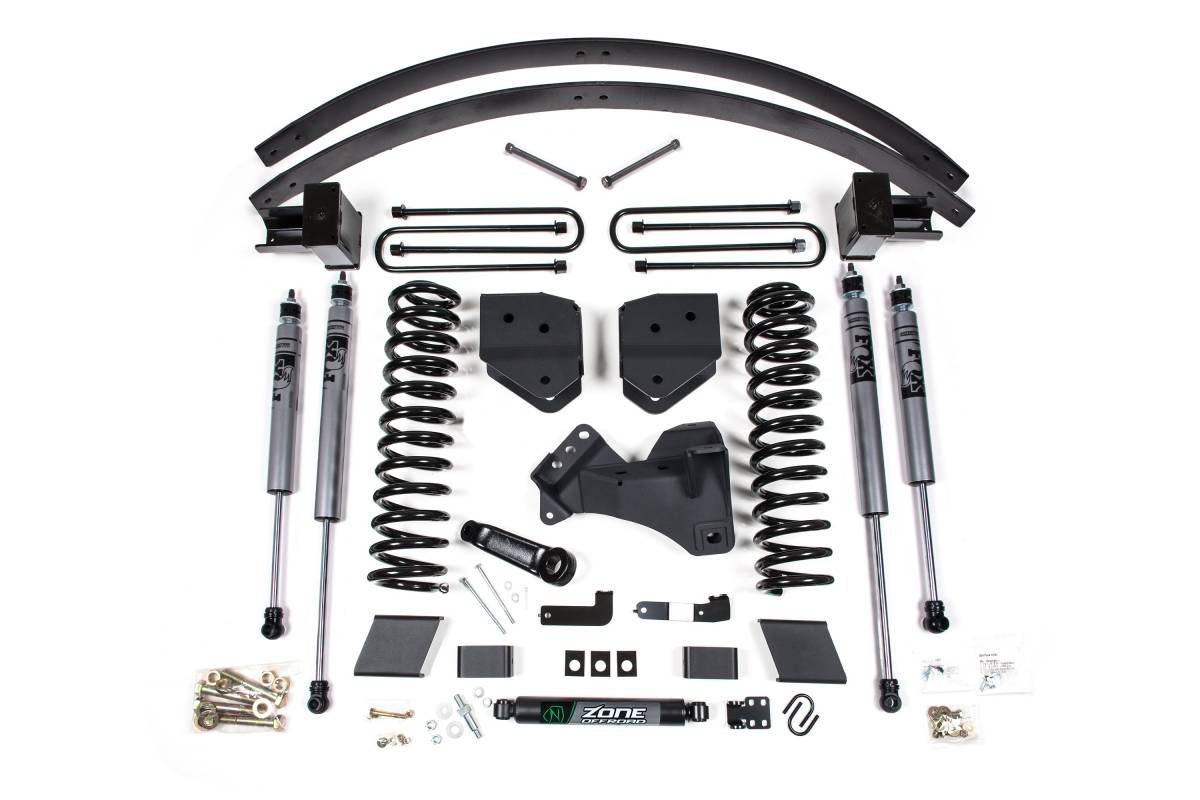

Paired with FOX 2.0 Adventure Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8" hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a clear anodized finish.
Overview

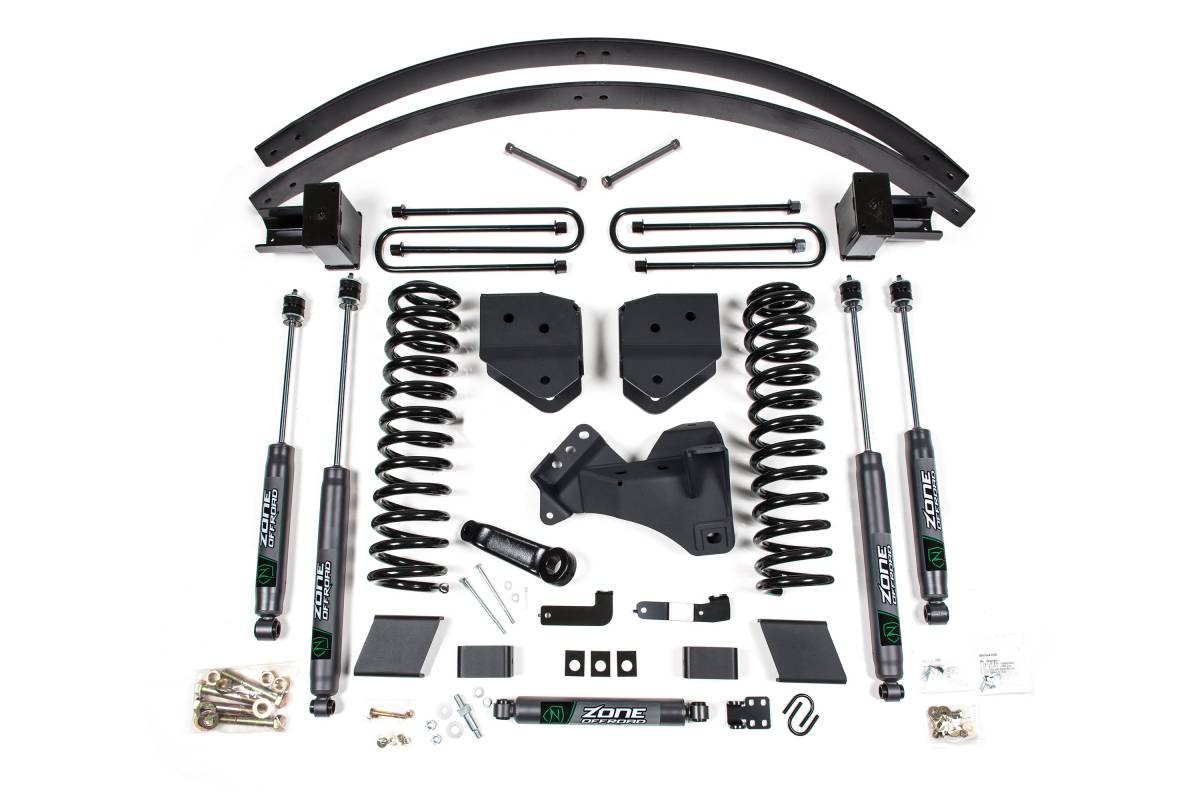

This 6" lift kit from Zone Offroad is designed for 2017–2019 Ford F-250/F-350 Super Duty 4WD Diesel trucks (SRW models). The kit includes everything needed to reliably lift your truck and provides the capability to run up to 37" tires. Components include high-strength coil springs, radius arm drop brackets, steering correction hardware, and a choice of rear lift configuration. Shock upgrade options are available in Nitro Series Gas Shocks or FOX 2.0 Adventure Series. All Zone lift kits are backed by Factory Protection Plus, which includes a 5-year/60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Features
- High-strength front coil springs to improve ride quality
- Radius arm drop brackets to correct caster and maintain suspension geometry
- Forged pitman arm and track bar relocation bracket to correct steering angles and re-center the front axle
- Bump stop relocation, sway bar relocation, and brake line relocation to maintain factory-like operating angles
- Choice of 3" rear lift block kit for a leveled stance, or Block Kit with Add-A-Leaf for 4" net rear lift and improved performance
- Supports fitment of up to 37" tires
- Backed by Factory Protection Plus: 5-year/60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty
Specifications
- Front Lift Method: Coil Spring & Drop Bracket
- Front Lift Height: 6"
- Rear Lift Method: Block Kit (3") or Block Kit & Add-A-Leaf (4") — see variant selection
- Shocks Included: Yes — see variant selection for shock model
- Total Lift Range: Up to 6"–7.5" (with Add-A-Leaf configuration)
- Rear lift blocks: Steel (standard) or cast iron (Block Kit only) with new center pins
- Fits: SRW models only
Installation
- Estimated Time: 4–6 hours
- Difficulty: Moderate
- Tools Required: Basic hand tools
Important Notes
- Check your rear springs to determine if your truck is equipped with standard, 2-leaf main, or heavy payload 3-leaf main spring pack with an overload spring.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- Fits SRW models only.
- 37x12.50 tires may require minor trimming.
- Factory wheels fit when paired with factory/original equipment tire size.
