4.5 Inch Lift Kit w/ Radius Arms | Ram 2500 (2019-2024) 4WD Diesel | FOX 2.0 Adventure Series Shocks | Zone Offroad

Configured with FOX 2.0 Adventure Series IFP shocks featuring an internal floating piston monotube design, large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish for improved ride quality and off-road performance.

Overview

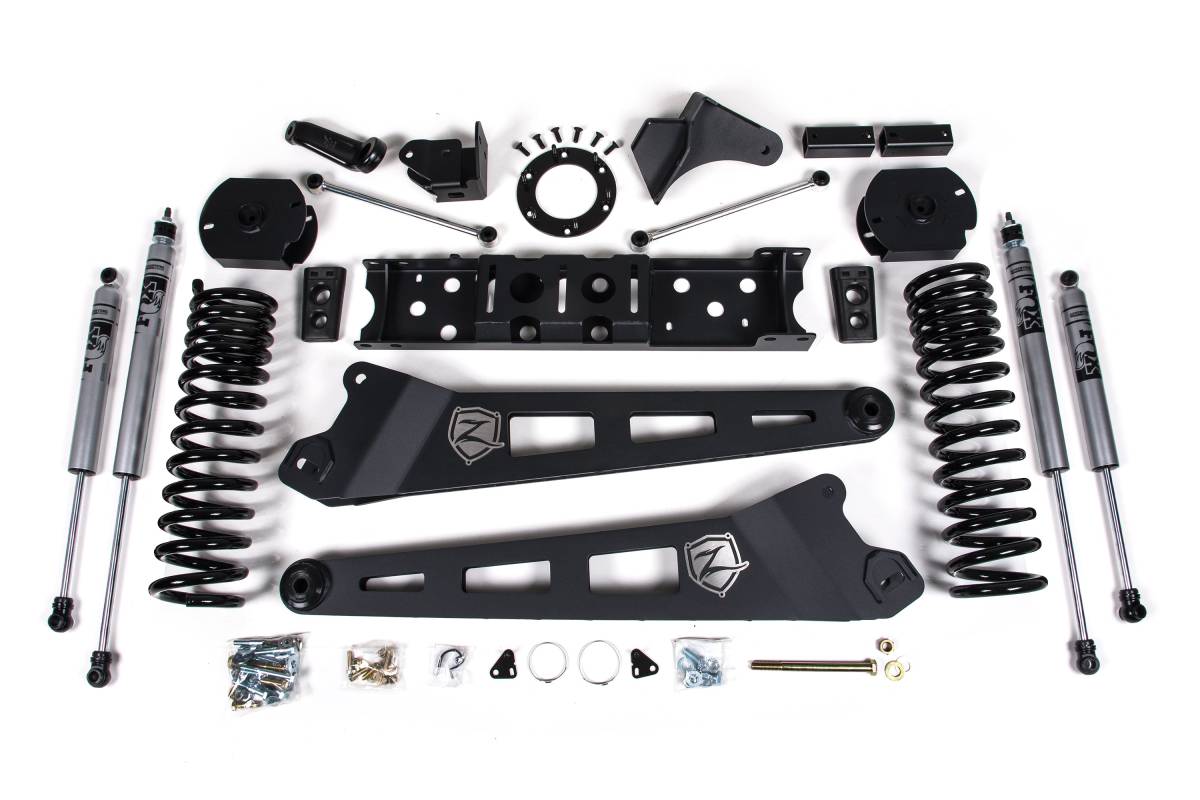

This 4.5 inch lift kit is engineered specifically for 2019–2024 Ram 2500 4WD Diesel trucks. Up front, a pair of progressive rate, diesel-specific 4.5" coil springs provides the extra height and smooth handling across demanding terrain. A forged drop pitman arm corrects steering angles, while polyurethane bump stops limit up-travel and brake line relocation brackets allow the suspension to reach full droop. Heavy-duty replacement radius arms bolt directly into the factory location, built from 1/4" American-made steel and internally gusseted with a lower cam adjustment to dial in front-end caster — a significant upgrade over the factory stamped units.

A heavy-duty replacement transmission crossmember and transfer case indexing ring reposition the front driveline output to correct driveline angles and maintain use of 4WD with factory drivelines. In the rear, 2.5" heavy-duty coil spacers level the stance while retaining factory ride quality without affecting tow capacity. Extended rear sway bar end links, new bump stops, and a track bar bracket are included to compensate for the lift and re-center the rear axle.

Features

• Heavy-duty 1/4" steel, laser cut, internally gusseted radius arms improve strength, increase ground clearance, and correct caster
• High-strength progressive rate front coil springs for improved ride on any terrain
• Front and rear HD track bar relocation brackets to correctly position both axles under the truck
• Forged drop pitman arm to correct steering angles
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles
• Nitro Series gas or FOX Adventure Series IFP gas shocks to improve ride and off-road performance
• Allows clearance for up to 37" tires

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 4.5"
• Rear Lift Method: Coil Spacer
• Rear Lift Height: 2.5"
• Shocks Included: Yes
• Radius Arm Material: 1/4" American-made steel, laser cut, internally gusseted

Installation

• Estimated Installation Time: 7–9 hours
• Difficulty: Difficult
• Special Tools Required: Pitman Arm Puller

Important Notes

• Will NOT fit air-ride equipped models
• Diesel models only
• Vehicles with a Manual Shift Transfer Case require a Manual T-Case Indexing Kit — add ZOND5409 in kit configuration
• Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)
