6.5 Inch Lift Kit | Ram 2500 4WD (2014-2018) | w/ Nitro Series Shocks | Zone Offroad

Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.

Overview

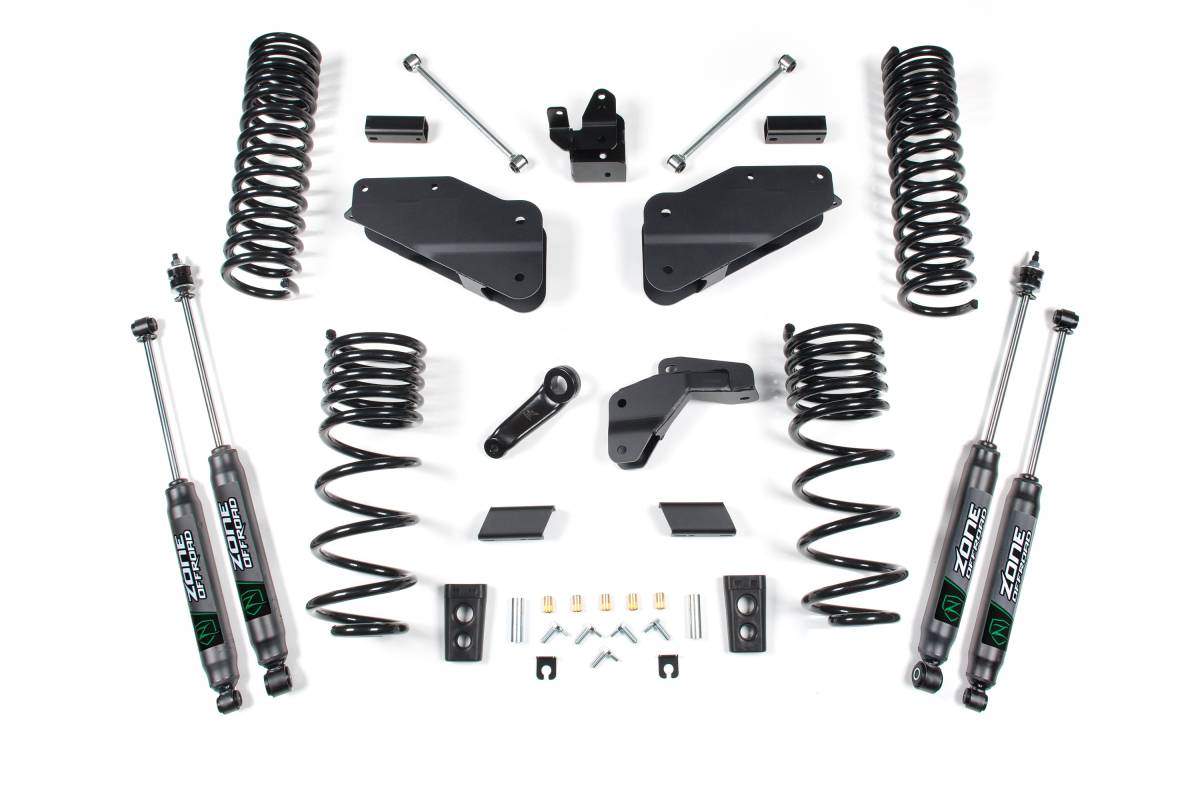

This 6.5-inch lift kit from Zone Offroad is designed to raise your Ram 2500 4WD (2014–2018) and level its stance. The kit includes progressive rate front and rear coil springs, radius arm relocation brackets, steering correction components, and rear lift hardware — everything needed to achieve the lift in a single package. Compatible with up to 37-inch tires.

Features

• Progressive rate front and rear coil springs improve ride quality and off-road performance while lifting and leveling the stance
• Radius arm drop brackets to correct caster and improve suspension geometry
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter the front axle
• Extended bump stops, sway bar relocation, and brake line relocation to maintain factory-like operating angles
• Bump stop extensions, track bar bracket, and sway bar correction to further refine suspension geometry

Specifications

• Front Lift Method: Coil Spring & Drop Bracket
• Front Lift Height: 6.5"
• Rear Lift Method: Coil Spring
• Rear Lift Height: 4.5"
• Shocks Included: Yes
• Maximum Tire Size: Up to 37 inches

Installation

• Estimated Installation Time: 6 hours
• Installation Difficulty: Moderate

Important Notes

• Fits trucks equipped with the 6.4L gas engines.
• Front drive-line vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit.
• Does NOT work for models with factory rear airbag suspension.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
• 6.4L Gas models will require exhaust modification to clear the front driveshaft.
• 5.7L Gas models may require modification.
• Factory wheels fit when paired with factory / original equipment tire size.
