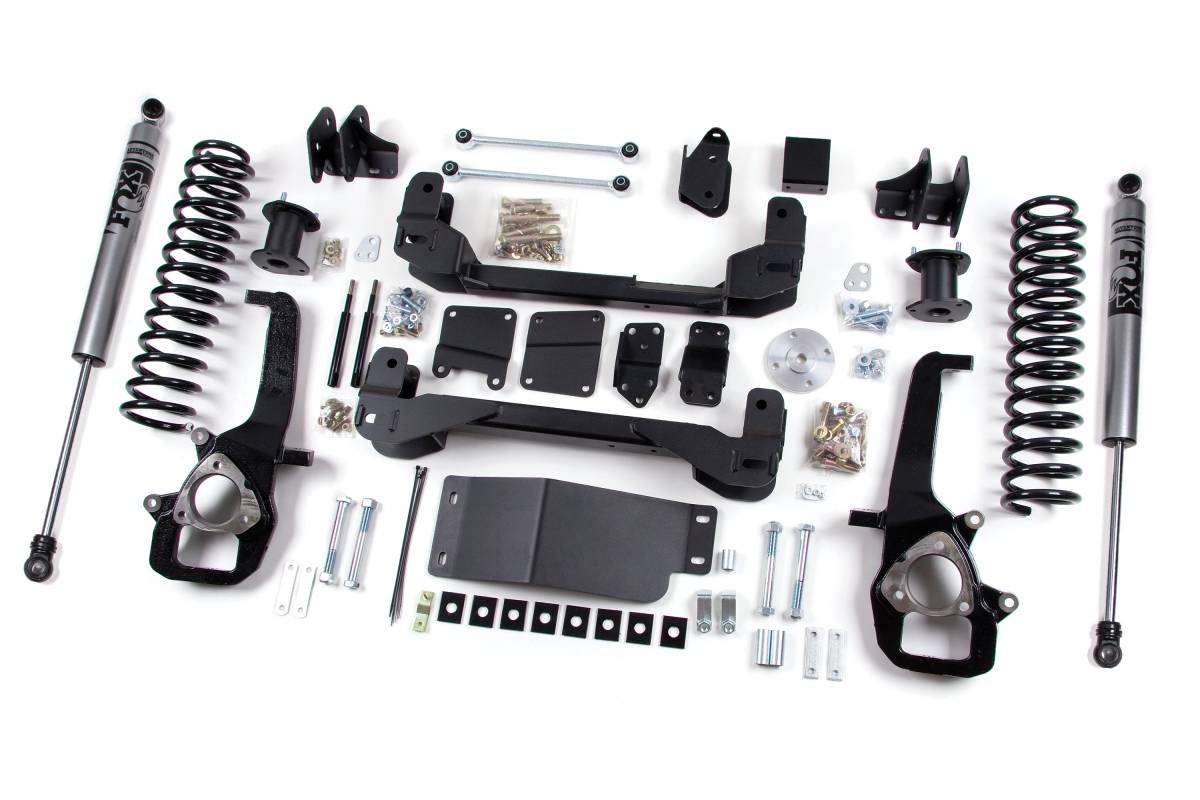

6 Inch Lift Kit | Dodge Ram 1500 2009-2011 4WD | 3 Inch Rear Coil Springs | FOX Adventure Series Shocks | Zone Offroad

Configured with 3 Inch Rear Coil Springs — recommended if your truck is approximately 3" tail high from the factory — paired with FOX Adventure Series rear shocks. FOX Adventure Series shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a black powder coat finish with a 2-inch diameter steel body.

Overview

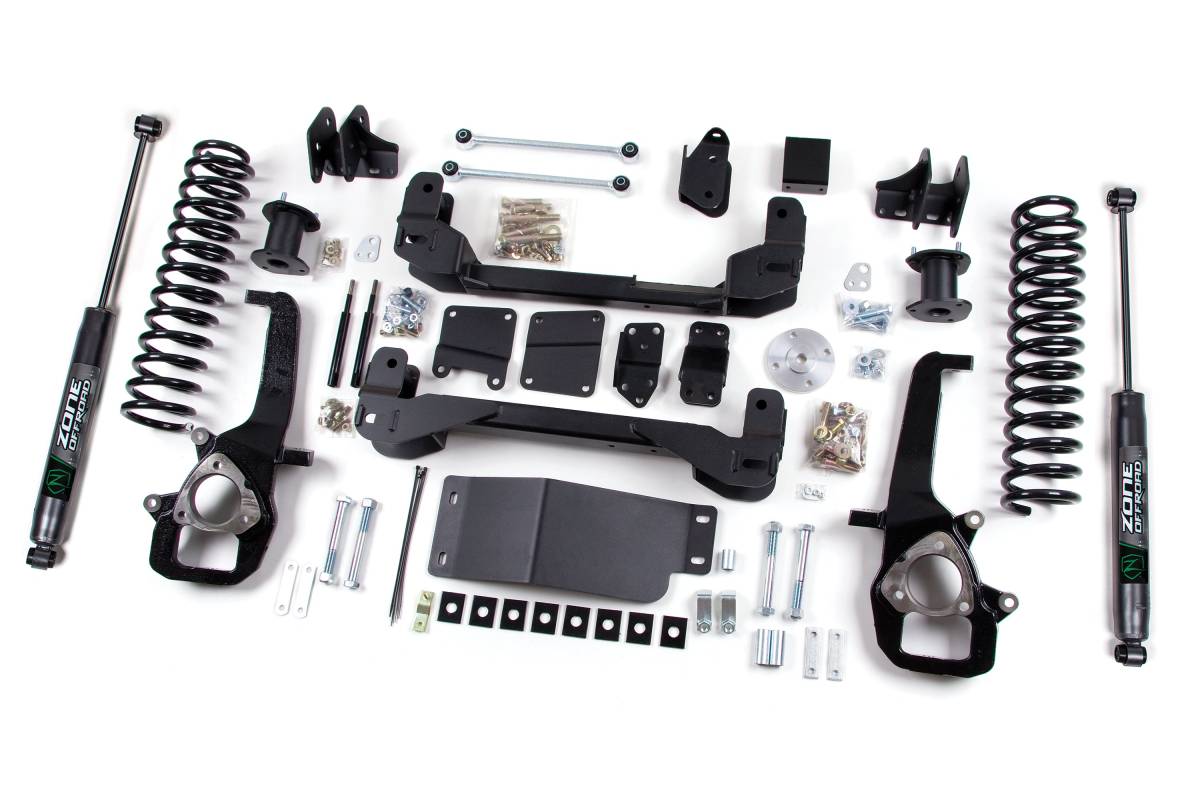

This 6 Inch Lift Kit for the 2009–2011 Dodge/Ram 1500 4WD provides the clearance needed to run up to 37" tires. Built to handle everyday driving as well as off-road use, the kit delivers added height while maintaining factory ride quality and handling characteristics. A 3" rear lift coil spring is included as standard; a 5" rear coil spring option is available for trucks that sit closer to level from the factory.

Features

• Includes 3" rear lift coil spring for a level rear end; 5" rear coil spring available for a "Tail High Rear End" configuration
• Heavy-duty differential skid plate improves off-road protection
• High-strength, CNC machined replacement steering knuckles improve strength and correct steering angles
• Maintains factory ride quality and handling characteristics
• Top mount strut and preload spacers set ride height and maintain ride quality
• Shocks included with all configurations

Specifications

• Front Lift Method: Strut Spacer
• Front Lift Height: 6"
• Rear Lift Method: Coil Spring
• Rear Lift Height: 3" (standard) or 5" (tail-high option)
• Shocks Included: Yes

Installation

• Estimated Time: 9 hours
• Difficulty: Moderate

Important Notes

Does NOT work with all wheel drive (AWD) models. This kit is not recommended for TRX models. CV shaft vibration will occur on TRX models unless the TRX struts are replaced with standard struts. Instead, consider our 4" lift system for about 5" of TRX lift.

These trucks are typically between 1" and 3" tail high from the factory. Please measure your truck's factory front-to-back ride height and order the rear lift height to achieve the desired stance. If closer to 1" tail high from the factory, order the 5" rear coils for a more level stance. If closer to 3" tail high from the factory, order the 3" rear coils for a more level stance.
