Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.
Overview

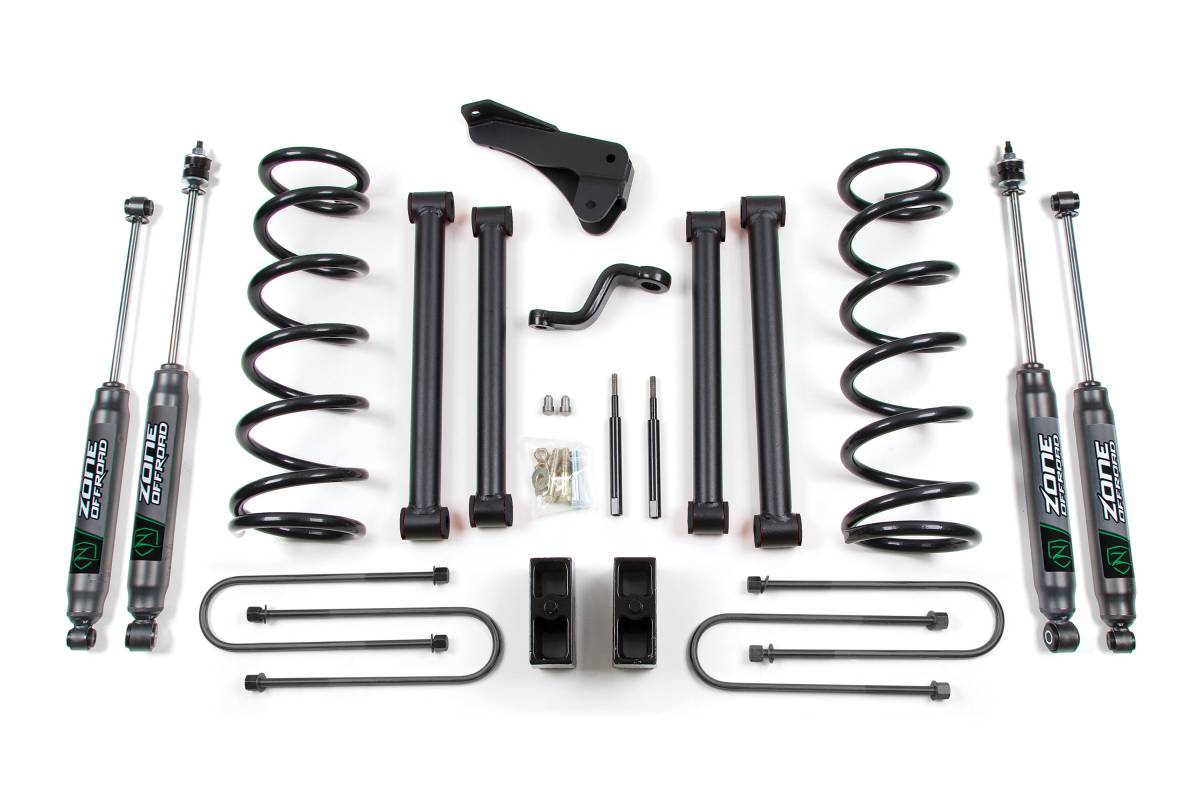

This 5-inch Lift Kit is designed for the 2009 Dodge/Ram 2500 Power Wagon 4WD and provides clearance for tires up to 36 inches. The kit includes all necessary components to complete the lift on your truck.
Features
- 100% bolt-on design for easy installation
- Bump stop extensions properly limit up-travel, protecting your vehicle
- Heavy-duty upper and lower control arms improve strength and articulation while correcting caster
- Heavy-duty front track bar bracket correctly positions front axle under vehicle
- Steering components included to ensure smooth post-installation operation of the steering system and factory-consistent vehicle handling characteristics
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 5"
- Rear Lift Method: Block
- Rear Lift Height: 3"
- Shocks Included: Yes
Installation
- Estimated Time: 7 hours
- Difficulty: Moderate
Important Notes
- This truck was produced using rear axles of differing diameters; measure the diameter of your rear axle to ensure proper kit selection in configuration.
- This kit is not designed for dually models, but may be easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
- Gas Engine? Gas models may sit slightly taller than the advertised lift height due to lighter weight of engine.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
