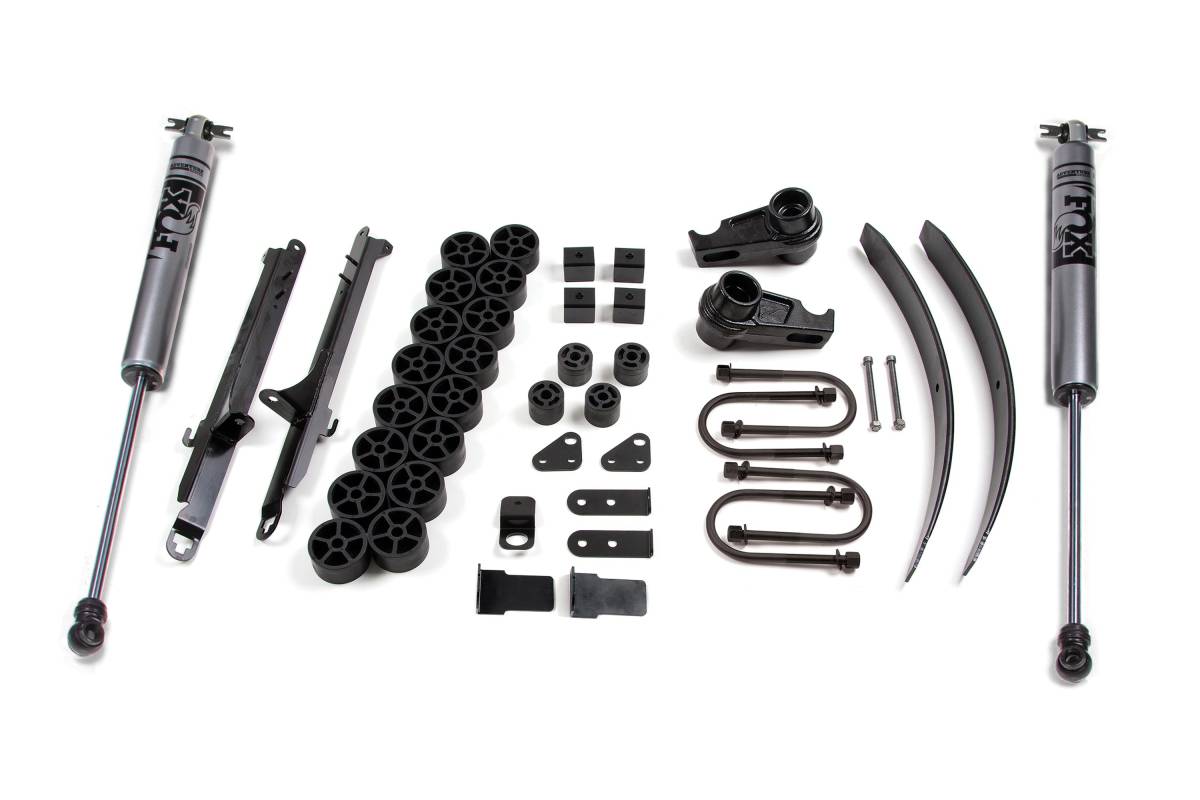

This configuration includes FOX Adventure Series rear shocks. FOX Adventure Series shocks feature a nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, a black powder coat finish, and a 2-inch diameter steel body.
Overview

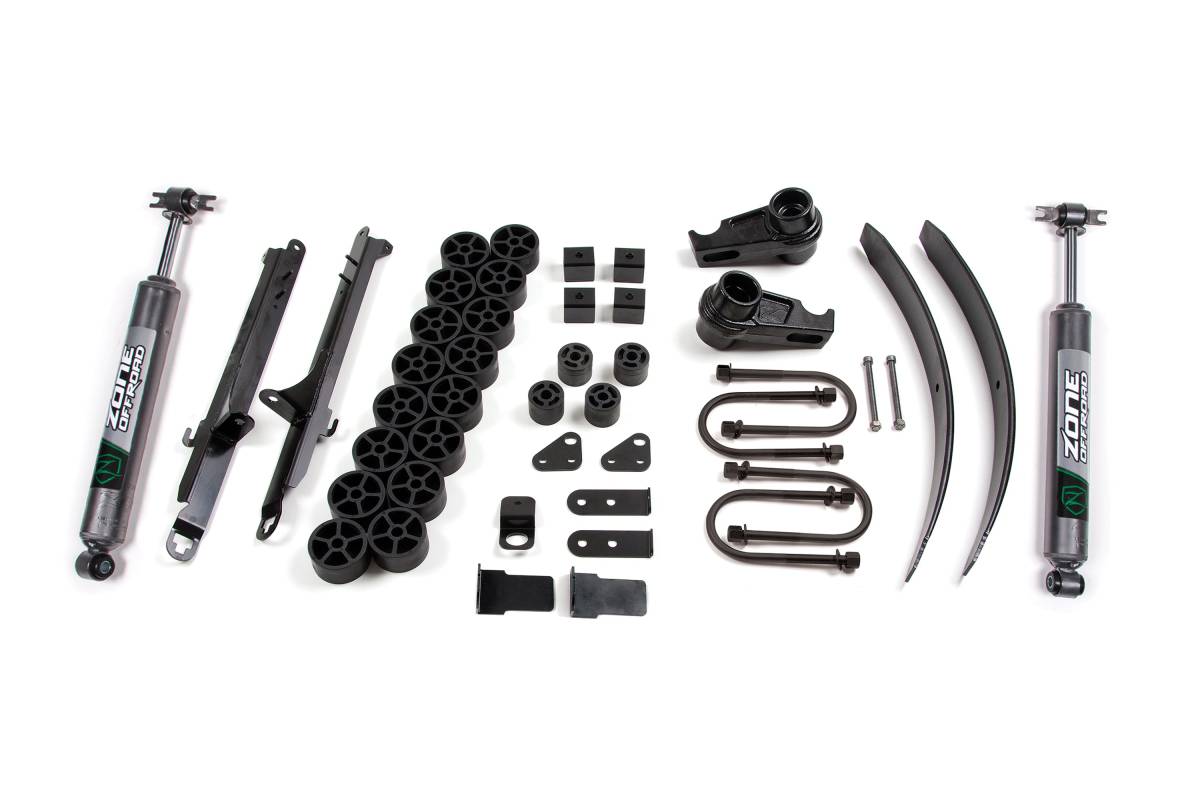

This 3.5" combo lift kit is designed for 2008–2012 Chevy Colorado and GMC Canyon 4WD trucks. It combines a 2" torsion bar key and rear add-a-leaf kit with a 1.5" body lift with bumper brackets, providing clearance for up to 32" tires while maintaining factory ride quality and handling characteristics.
Features
- Castings are resonance frequency tested to ensure they are defect-free and ready to withstand any abuse
- Designed to retain functionality of the front tow hooks
- Front and rear bumper relocation brackets maintain factory look
- Front shock extensions allow use of factory shocks
- High-strength, class 10.9 zinc plated hardware
- Radiator relocation brackets ensure original functionality
- Rear Add-A-Leaf Kit provides additional lift and improves weight capacity
Specifications
- Front Lift Method: Torsion Key & Body Lift Block
- Front Lift Height: 3.5"
- Rear Lift Method: Add-A-Leaf & Body Lift
- Rear Lift Height: 3"
- Shocks Included: Yes
Installation
- Estimated Installation Time: 6–8 hours
- Installation Difficulty: Moderate
Important Notes
- Rear bumper brackets are for appearance only and are not rated for towing. Frame mounted tow hitches are recommended for towing purposes.
- Radiator & condenser brackets are not designed for V8 models.
- Trimming of the front bumper plastic valance or frame is required for front bumper relocation. See installation instructions for more information.
