3 Inch Adventure Series Lift Kit | Chevy Silverado & GMC Sierra 2500HD (2020-2026) 4WD | FOX 2.0 Adventure Series | Without Factory Overload | Zone Offroad

Configured with FOX 2.0 Adventure Series IFP gas shocks and standard rear lift blocks and u-bolts. Intended for single rear wheel (SRW) applications without a factory overload rear suspension package.

Overview

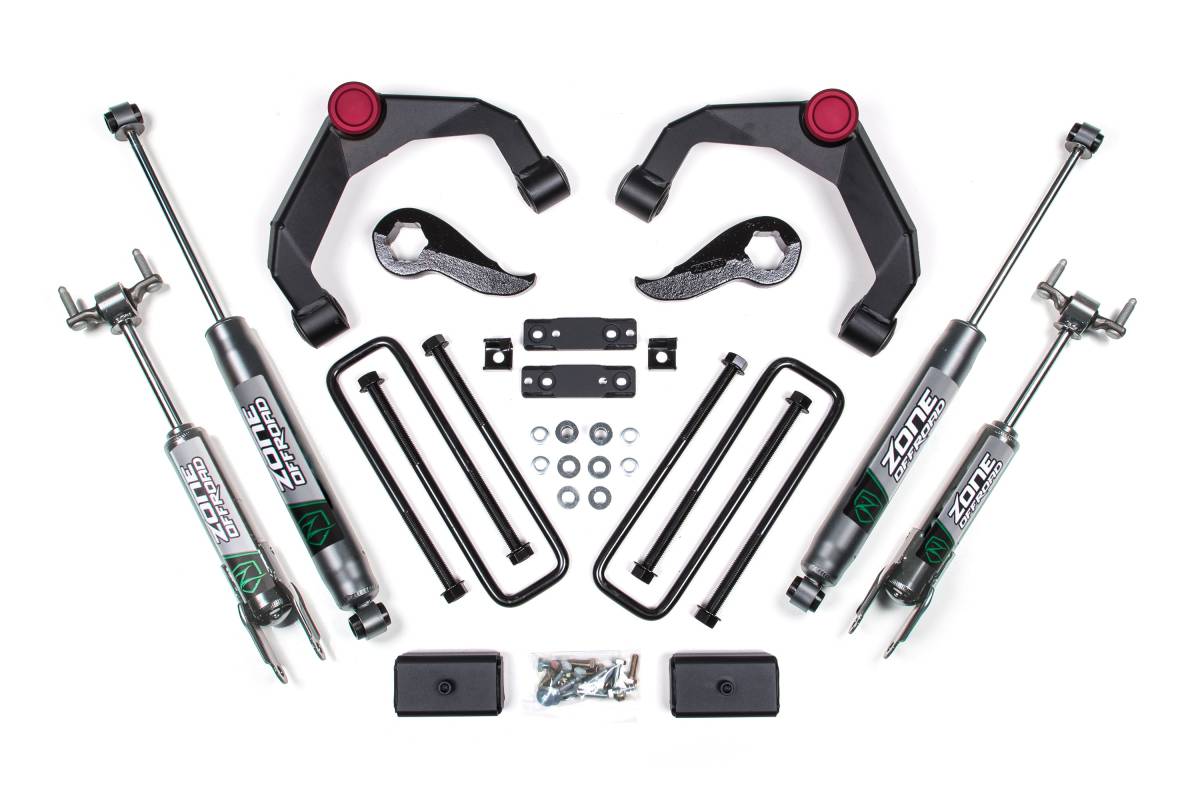

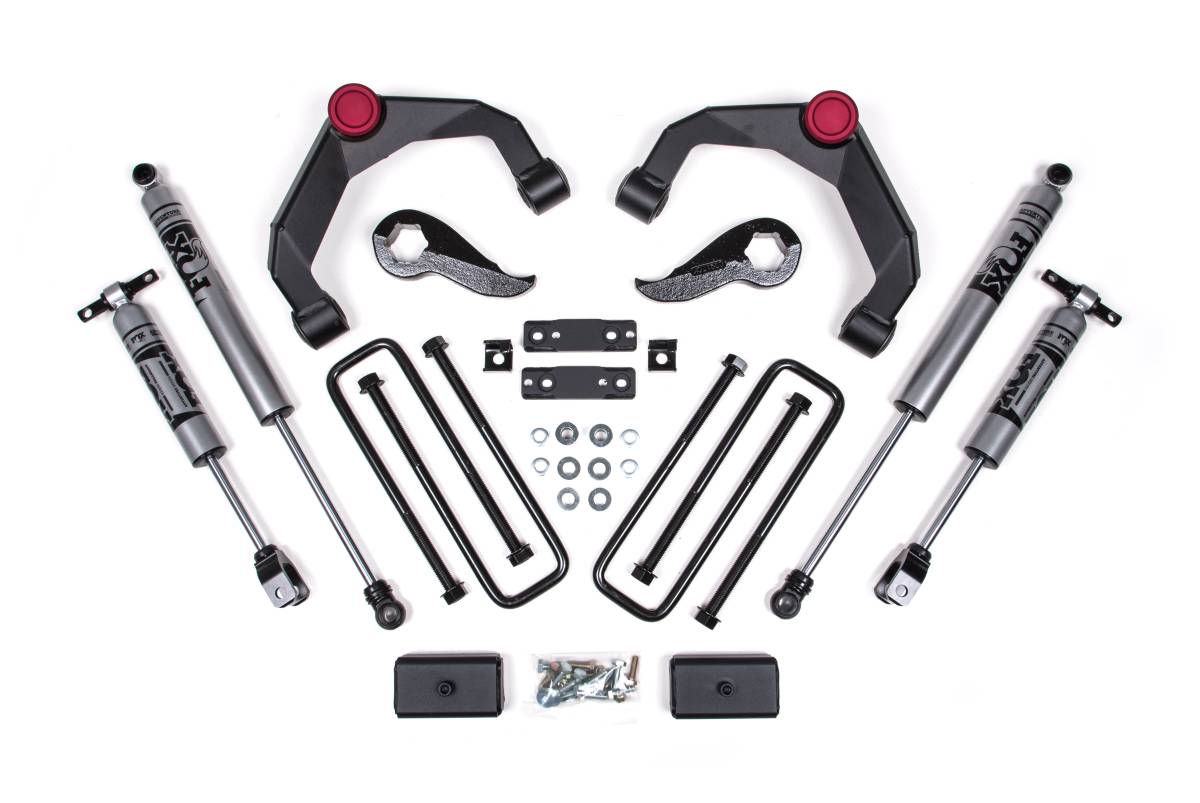

The 3" Adventure Series Lift Kit from Zone Offroad is engineered for bolt-on fitment and improved suspension travel on the late-model GM 2500HD. Bridging the gap between an entry-level leveling kit and a full IFS lift system, this kit delivers next-level performance without the cost or complexity of a full system installation. At the core are heavy duty replacement upper control arms (UCAs) built from high-strength steel — boxed, fully welded, and featuring CNC-machined bushing and ball joint cups repositioned to operate at the neutral position at 3" of lift. OE durometer rubber bushings and greaseable OE-style heavy duty ball joints provide quiet, reliable operation and superior corrosion resistance compared to uniball-style designs. Reindexed cast steel torsion bar keys lift the front, while a small differential relocation kit (4WD models) corrects CV axle operating angles without sacrificing ground clearance. Sway bar relocation brackets maintain proper operating angle and full droop travel. The rear is lifted via a 2" block and u-bolt kit for a level to slightly tail-high stance. FOX 2.0 Adventure Series IFP gas shocks are included at all four corners.

Features

• High-strength UCAs are boxed and fully welded with an indexed ball joint cup to correct ball joint operating angle for increased suspension travel
• Cast construction indexed torsion bar keys provide additional ride height while maximizing ground clearance
• Front differential relocation brackets correct CV axle operating angle
• Sway bar relocation brackets maintain clearance and proper operating angle
• 2" rear lift blocks and heavy duty u-bolts to level the stance
• FOX 2.0 Adventure Series IFP gas shocks improve ride performance at all four corners
• Maintains ride and handling characteristics with clearance for 35" tires
• Improves off-road performance with increased droop travel

Specifications

• Front Lift Method: Torsion Key
• Front Lift Height: 3"
• Rear Lift Method: Block
• Rear Lift Height: 2"
• Shocks Included: Yes — FOX 2.0 Adventure Series IFP Gas

Installation

• Estimated Time: 3–4 hours
• Difficulty: Moderate
• Special Tools Required: Torsion Bar Unloading Tool (Kent Moore #CH48809 or equivalent)

Important Notes

• Stock wheels with stock tires can be installed; however, clearances are very tight to the upper control arms — a 1/2" wheel spacer is recommended.
• A proper torsion bar key unloading tool is required (Kent Moore #CH48809 or equivalent).
• Compatible with gas or diesel models.
• Compatible with standard and AT4 models.
• DRW applications require the "With Factory Overload" option to get the correct u-bolts.
