3 Inch Lift Kit | Chevy Silverado & GMC Sierra 2500HD (2001-2010) 4WD | Nitro Series | FT Codes (FT2-FT7) | Zone Offroad

Includes Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.

For vehicles with RPO Codes: FT2, FT3, FT4, FT5, FT6, or FT7. Verify RPO codes in your glovebox before ordering.

Overview

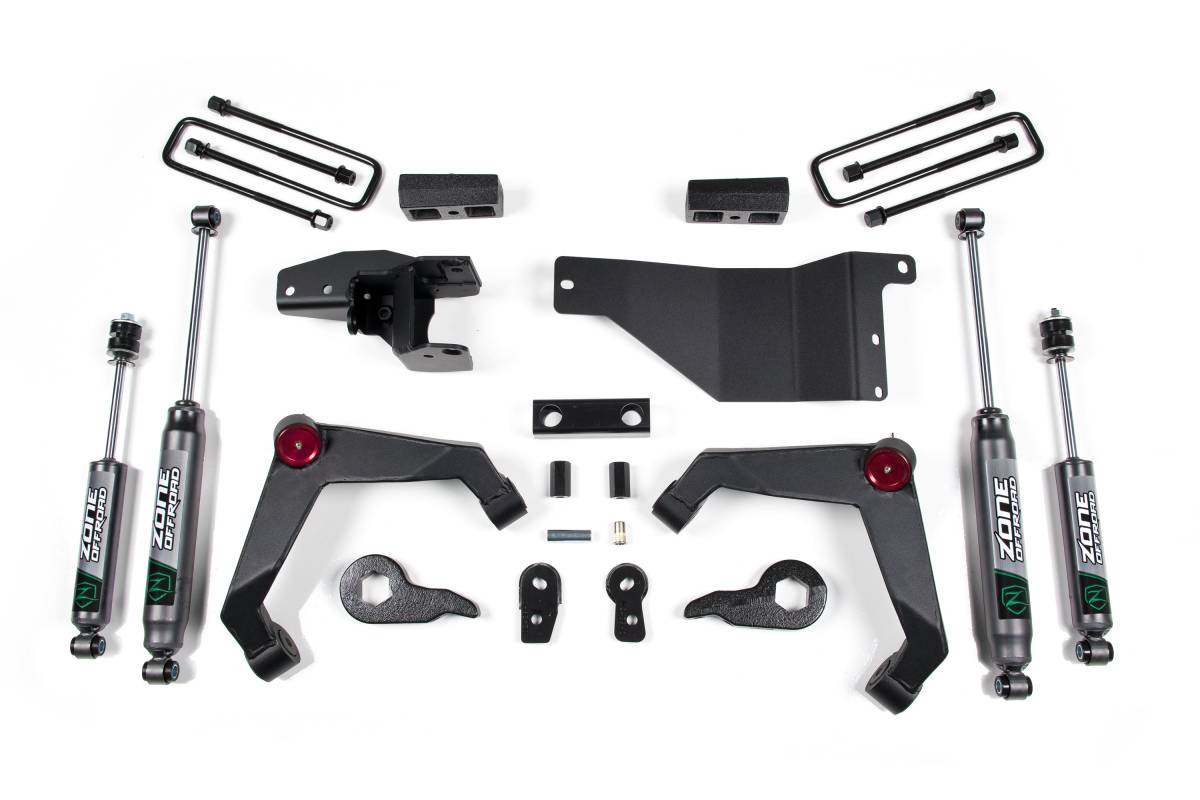

This 3-inch Adventure Series lift kit from Zone Offroad is designed for 2001–2010 Chevy Silverado and GMC Sierra 2500HD 4WD trucks. The kit includes high-strength upper control arms, indexed torsion bar keys, a front differential relocation bracket, a differential skid plate, and a rear lift block kit — everything required to complete the installation. The result is 3 inches of front lift via torsion key and upper control arm, and 2 inches of rear lift via block, producing a level to slightly tail-high stance with clearance for up to 34-inch tires.

Features

• Adventure Series fully boxed HD upper control arms for improved strength and suspension travel
• Improved ride quality and suspension travel over standard leveling kits
• Front differential drop included to correct CV shaft angles
• Differential skid plate for improved off-road protection
• 2-inch rear block kit nets a level to slightly tail-high stance
• Indexed torsion bar keys to set ride height
• Allows clearance for up to 33-inch tires

Specifications

• Front Lift Method: Torsion Key & Upper Control Arm
• Front Lift Height: 3 inches
• Rear Lift Method: Block
• Rear Lift Height: 2 inches
• Shocks Included: Yes

Installation

• Estimated Installation Time: 3.5 hours
• Installation Difficulty: Moderate
• Special Tools Required: Torsion Bar Unloading Tool

Important Notes

• Frame bracket mount modification required.
• To determine which kit is required, verify the RPO codes shown in the glovebox to identify the factory-installed torsion keys.
• Will not fit dually models.
• Factory wheels cannot be re-installed.
• Kits C1202 / C1212 / C31 fit vehicles with RPO Code: FT2, FT3, FT4, FT5, FT6, or FT7.
• Kits C1203 / C1213 / C32 fit vehicles with RPO Code: FK2, FK3, FF6, FF7, FF8, or FF9.
