6 Inch Lift Kit | 1973-1976 Chevy/GMC 3/4 Ton Truck & SUV 4WD | w/ Nitro Series Shocks | Zone Offroad

Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.

Overview

This 6-inch lift kit is designed for 1973–1976 Chevy/GMC K1500 trucks and SUVs (3/4 ton, 4WD). The kit provides the clearance needed to run 37-inch tires and delivers a combination of standout appearance and daily driving reliability.

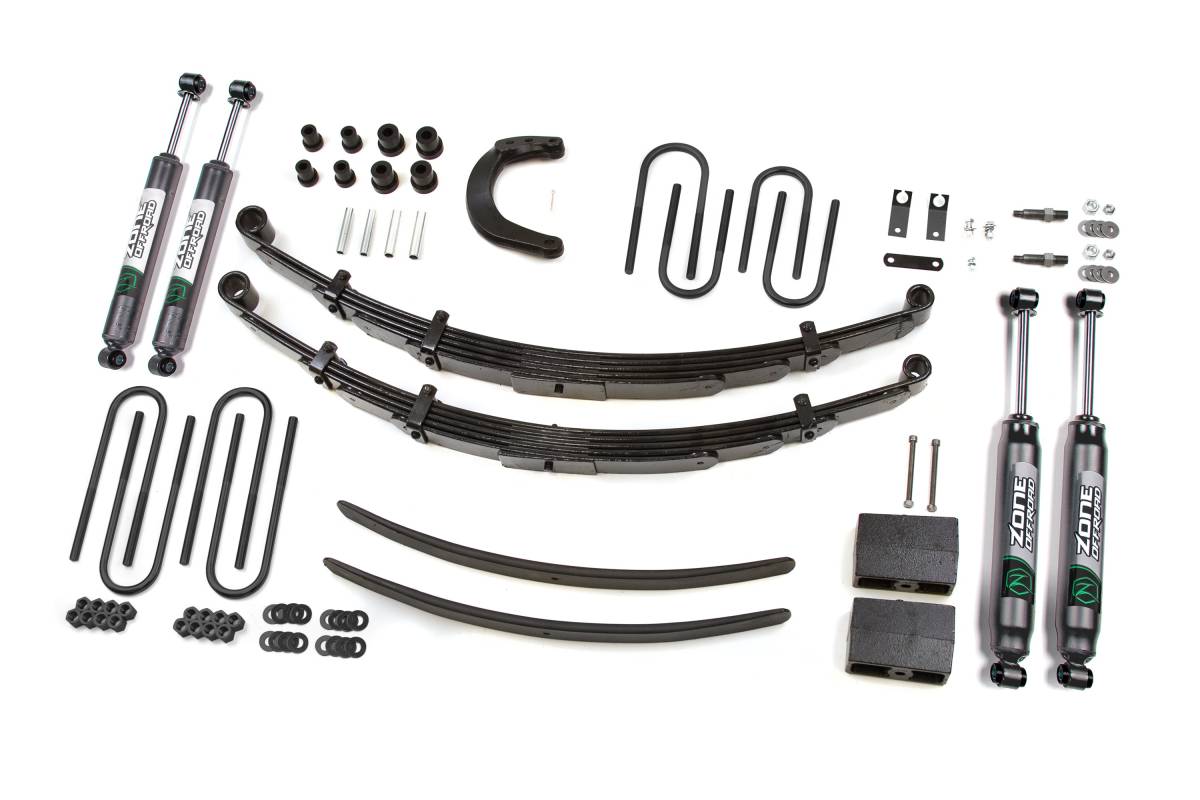

Features

• Brake line relocation brackets allow re-use of factory brake lines
• Heavy-duty replacement front leaf springs provide lift and great ride quality
• High-strength, black e-coated U-bolts
• Rear Add-A-Leaf kit provides additional lift and improves weight capacity
• Rear lift block and longer U-bolts for easy installation and a level stance
• Steering components included to ensure smooth post-installation operation and factory-consistent vehicle handling characteristics

Specifications

• Lift Height: 6–7.5 inches
• Front Lift Method: Leaf Spring
• Front Lift Height: 6 inches
• Rear Lift Method: Block & Add-A-Leaf
• Rear Lift Height: 6 inches
• Shocks Included: Yes

Installation

• Estimated Time: 4 hours
• Difficulty: Moderate

Important Notes

Auxiliary Shocks: If your vehicle is equipped with factory auxiliary front shocks, you will need to order auxiliary shocks to complete your kit. Add in configuration / checkout. On some models, the front driveshaft may need to be clearanced at the double cardan joint to prevent binding. Some models may require the transfer case drop kit C5001 listed in the accessories to alleviate driveshaft vibration.
