6 Inch Lift Kit | Chevy/GMC K1500/K2500 1/2 Ton Truck & SUV (1988-1998) 4WD | Nitro Series Shocks | Zone Offroad

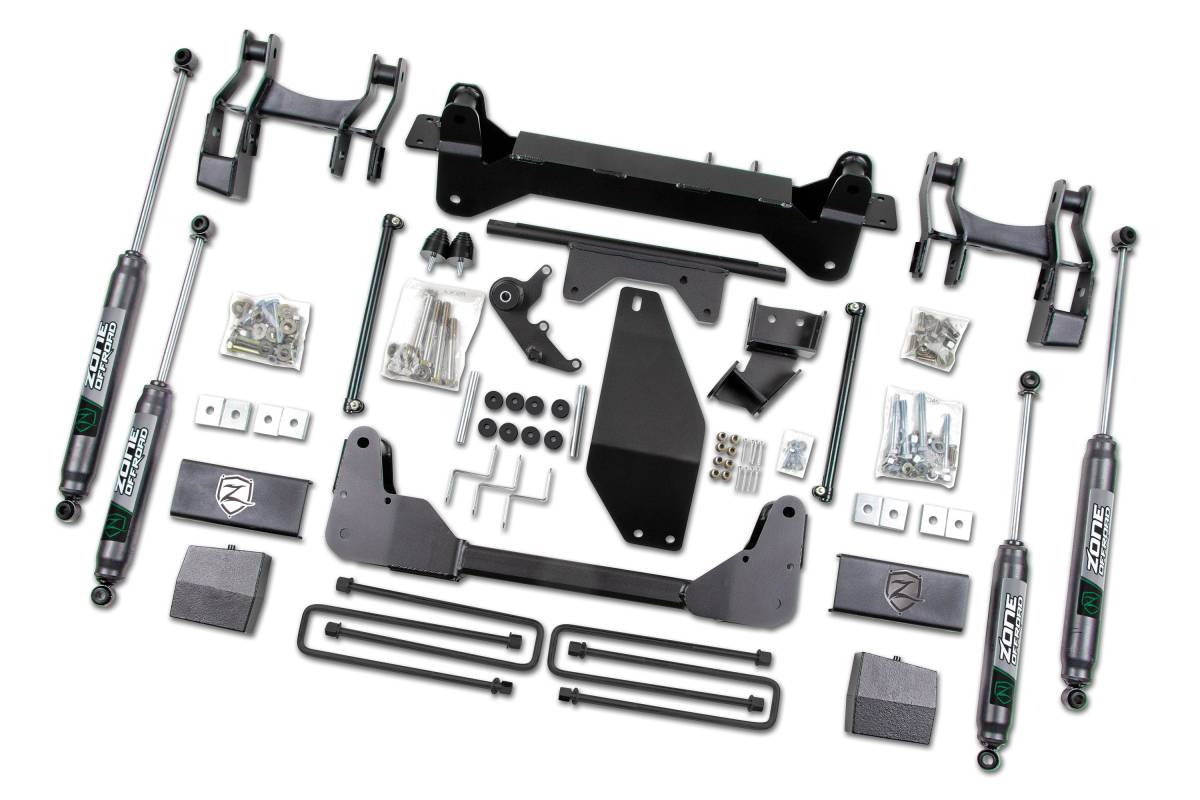

Configured with Nitro Series shocks featuring nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, and black powder coat finish.

• Front Lift Method: Cross Member & Torsion Drop
• Front Lift Height: 6"
• Rear Lift Method: Block
• Rear Lift Height: 5"
• Shocks Included: Yes

Overview

This 6-inch lift kit is designed for 4WD 1988–1998 Chevy/GMC 6-lug K1500 and K2500 trucks and SUVs. The kit provides clearance for 35-inch tires and includes the components necessary to correct steering and drivetrain geometry after the lift. It does not alter the front track width of the vehicle.

Features

• Heavy-duty differential skid skate improves off-road protection
• High-strength, 1/4-inch steel construction crossmembers correct lower control arm geometry
• Lift system does not change the front track width of the vehicle
• Multi-point differential relocation brackets secure the front differential for improved CV operating angles
• Relocation bracket allows for reinstallation of the factory spare tire
• Upper control arm relocation brackets correct front suspension geometry

Installation

• Estimated Time: 8 hours
• Difficulty: Difficult
• Special Tools Required: Torsion Bar Unloading Tool

Important Notes

Auto-Trac / Front Driveshaft: Models equipped with an auto-trac transfer case may require a new front driveshaft. Auto-trac transfer cases can be identified by a badge on the rear case that reads “NP246”. In addition, the dash-mounted display will show the Auto 4WD symbol. Cases with “NP243” are not auto-trac.

Requires exhaust modification to clear the front driveshaft. See installation instructions for more information.

Not recommended for Tahoe/Yukon 4-door models. Does NOT fit 8-lug models.
