Shock Mount Relocation Kit | Raises Lower Mount 3" | Jeep Cherokee XJ (1984-2001) | Zone Offroad

Overview

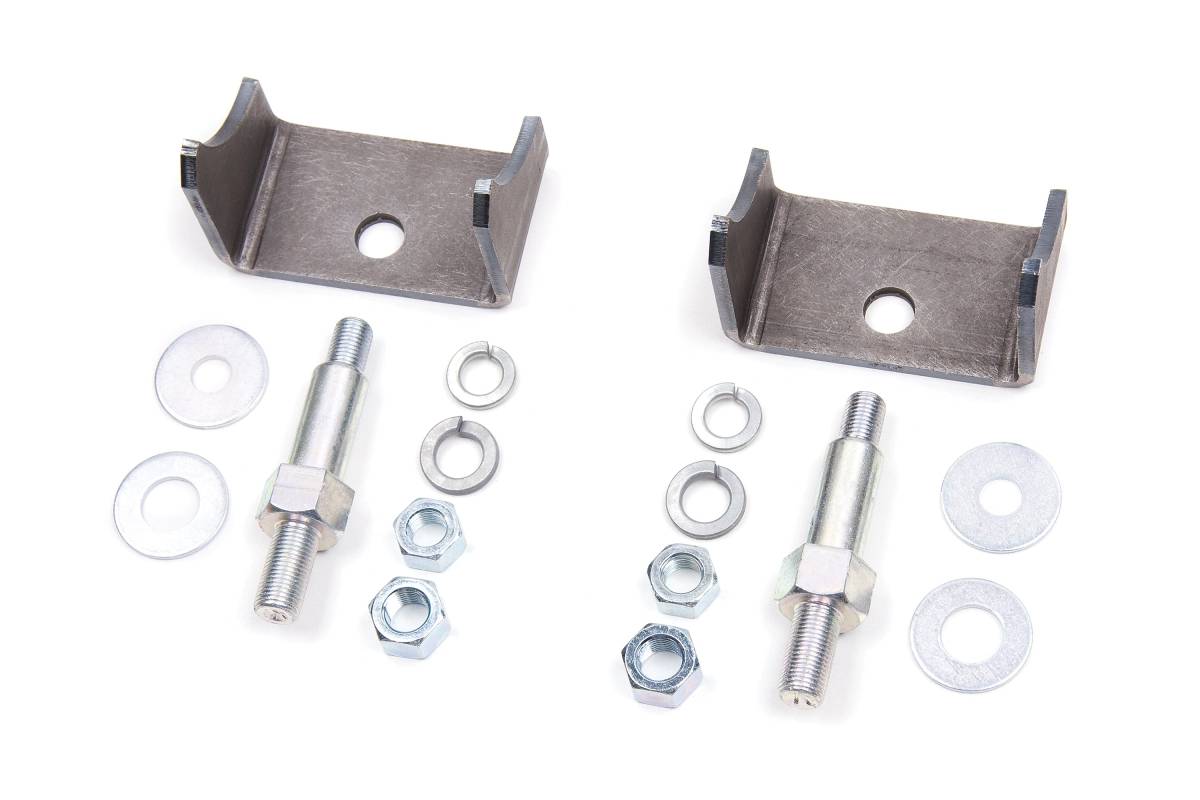

These high-clearance rear lower shock mount relocation brackets raise the lower shock mount a full 3" so that it sits even with the bottom of the axle tube, drastically increasing ground clearance and reducing the risk of the mounts scraping across rocks on the trail. This weld-on bracket is made from 3/16" steel and includes a new shock stud compatible with any standard 5/8" inner diameter shock bushing. Although designed for the Jeep Cherokee XJ, this weld-on mount can also be used for custom applications on any axle tube with a diameter ranging from 2-1/2" to 3-1/2".

Features

• 3/16" steel weld-on shock mount construction
• Relocates the rear XJ lower shock mount up 3" to be even with the axle tube
• Designed to mount to any standard 5/8" ID shock bushing
• Compatible with almost any custom application with axle tube diameter ranging from 2-1/2" to 3-1/2"
• Combine with Zone J5022 bar pin eliminator to create the ultimate rear XJ shock set-up

Important Notes

Required shocks (specs) may change after installation due to the mounting position changing.
