Overview

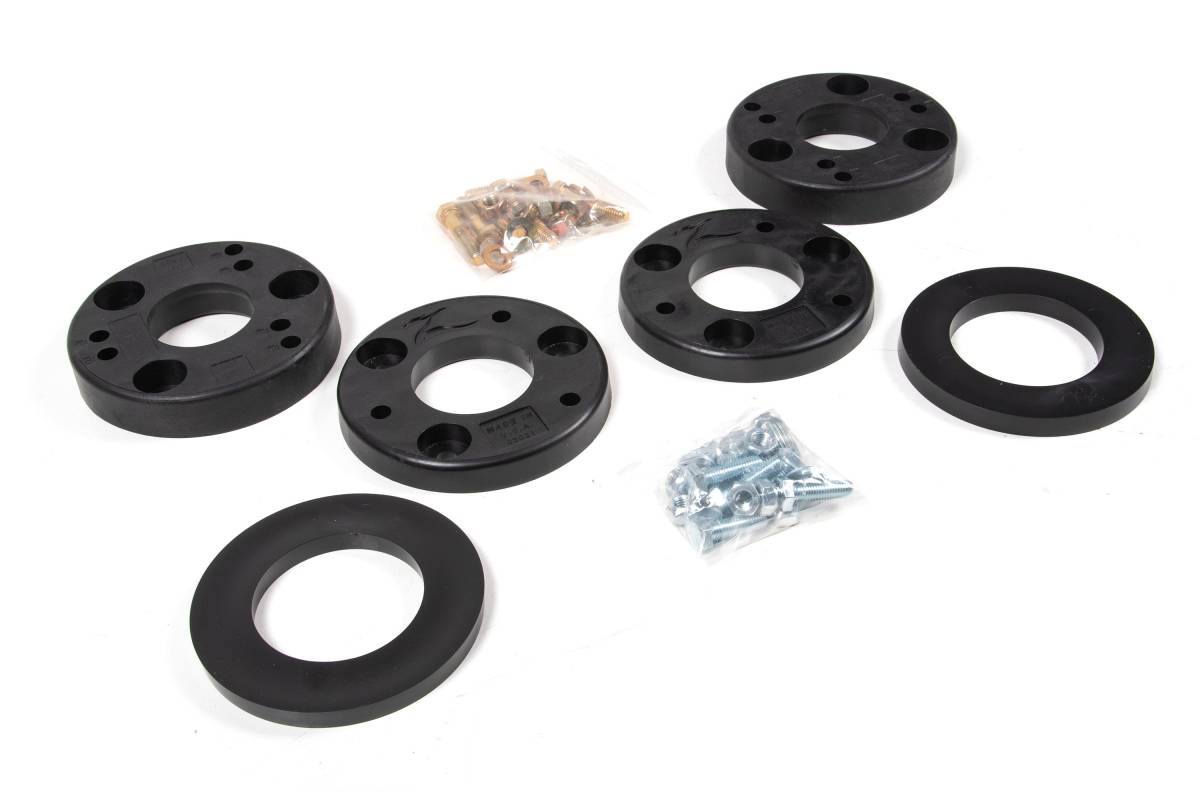

This 3" Lift Kit from Zone Offroad is designed specifically for the Ford F-150 Lightning. Up front, a 2-piece combination top-mount and preload strut spacer system delivers a full 3" of lift while preventing the suspension from overextending at full droop — an advantage over single top-strut-spacer designs. In the rear, a 3/4" strut spacer levels the stance and provides additional clearance. The kit accommodates tires up to 295/70R18.
Features
- Combination top-mounted strut spacer and preload spacer achieves proper lift height without overextending suspension during droop travel
- Maintains ride quality and handling characteristics
- Bolt-on installation
- Provides clearance for tires up to 295/70R18
- Includes Factory Protection Plus Program
Specifications
- Front lift: 3 inches (via 2-piece combination top-mount and preload strut spacer)
- Rear lift: 3/4 inch (strut spacer)
- Maximum tire fitment: 295/70R18
Installation
- Estimated Time: 4 hours
- Difficulty: Moderately Easy
- Special Tools Required: Torque wrench capable of 350 ft-lbs
Important Notes
- Has not been tested for use with Bluecruise functions.
- Requires a torque wrench that goes up to 350 ft-lbs.
- Will fit models with On-Board Scales and Smart Hitch removal option, though the functionality of these features have not been verified. NOTE: Lariat and Platinum trim trucks come with these options standard.
- Some range loss may be experienced when larger than stock tires are installed. Will vary based on tire size, conditions, and driving style.
