Transfer Case Indexing Ring Kit | 6-Bolt | 3 Inch Lift | 2019-2024 Ram 2500/3500 Diesel | Zone Offroad

Overview

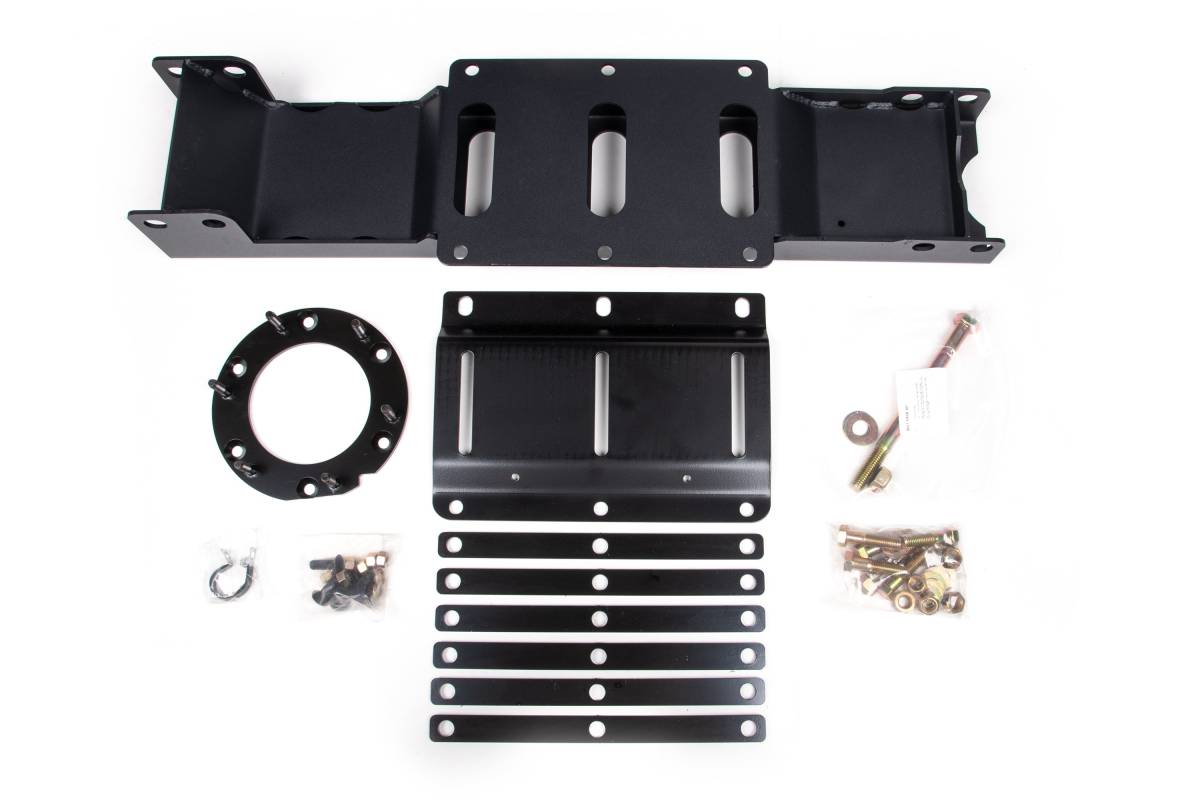

Prevent front driveline issues on your lifted, diesel-powered 2019–2024 Ram 2500 or 2019–2024 Ram 3500 with the Zone Offroad Transfer Case Indexing Ring Kit. At 3 inches of lift, this kit allows the front driveline to reconnect properly and eliminate vibrations. Designed specifically for 6-bolt flange transmissions, the kit features optimal spline engagement and is dual-drilled to allow positioning for compatibility with a range of lift heights. Also included is a billet aluminum driveshaft spacer and all hardware required to complete the installation.

Features

• Indexing rings eliminate front driveline vibrations
• Proper clearance prevents cross-member interference
• Heavy duty steel construction for maximum strength
• Designed with optimal spline engagement to prevent transmission-to-transfer case damage
• Dual-drilled for compatibility with a range of lift heights
• Includes billet aluminum driveshaft spacer and all necessary hardware

Specifications

• Designed for: 6-bolt flange transmissions
• Lift height: 3 inches
• Material: Heavy duty steel; billet aluminum driveshaft spacer
• Compatible vehicles: 2019–2024 Ram 2500 Diesel, 2019–2024 Ram 3500 Diesel

Installation

• Estimated Time: 3–4 hours
• Difficulty: Moderate

Important Notes

DO NOT USE FILL PORT FOR FLUID LEVEL ON AN INDEXED TRANSFER CASE. THE FILL PORT WILL BE LOWER THAN OE FILL LEVEL HEIGHT: If any maintenance requiring fluid change or refill has or is being done, before reinstalling the transfer case check fluid levels on bench and fill transfer case with manufacturer recommended volume of fluid.
