Overview

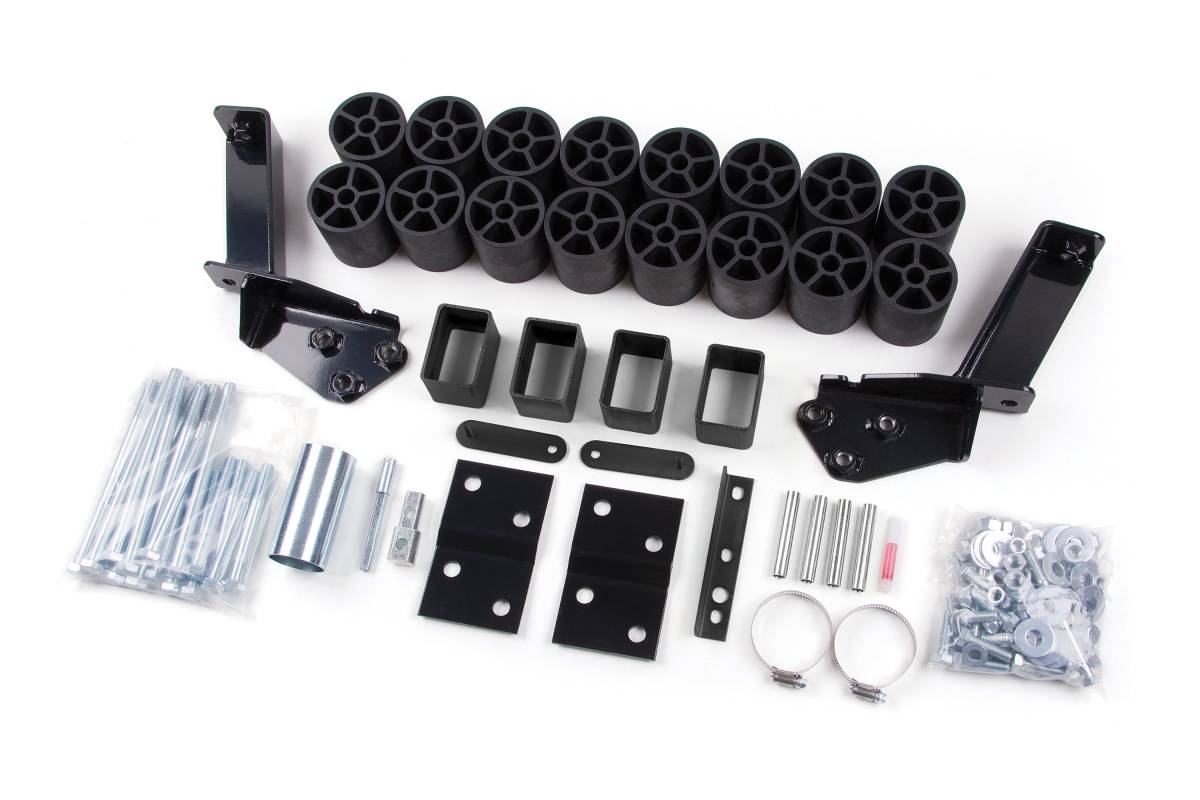

This 3" Body Lift Kit is a complete system designed for 1988–1994 Chevy/GMC 1500 trucks. Built around crush-proof body blocks rated to hold up to 60,000 lbs., the kit includes everything needed to achieve the desired lift height across all cab and bed configurations.
Features
- 100% bolt-on design for easy installation
- Detailed step-by-step instructions and Zone Offroad decals included
- Fan shroud relocation components included
- Front and rear bumper relocation brackets maintain factory appearance
- Fuel filler hose extension included to retain original functionality
- High-strength, CNC machined replacement steering knuckles improve strength while correcting steering angles
Specifications
- Lift Height: 3 inches
- Body blocks rated to 60,000 lbs. crush resistance
- Fits all cab and bed configurations
- Will not fit vehicles equipped with a diesel motor
Installation
- Estimated Time: 8 hours
- Difficulty: Moderate
Important Notes
- Rear bumper brackets are for appearance only and are not rated for towing.
- Frame-mounted tow hitches are recommended for all towing purposes.
- Fits all cab and bed configurations.
- Will not fit vehicles with a diesel motor.
