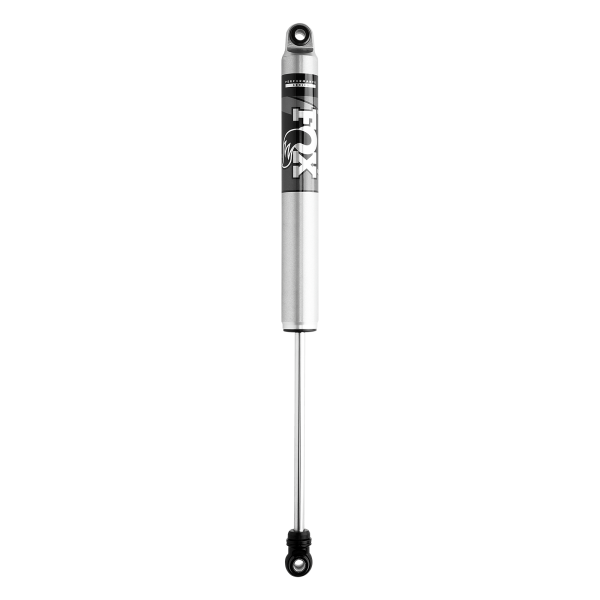

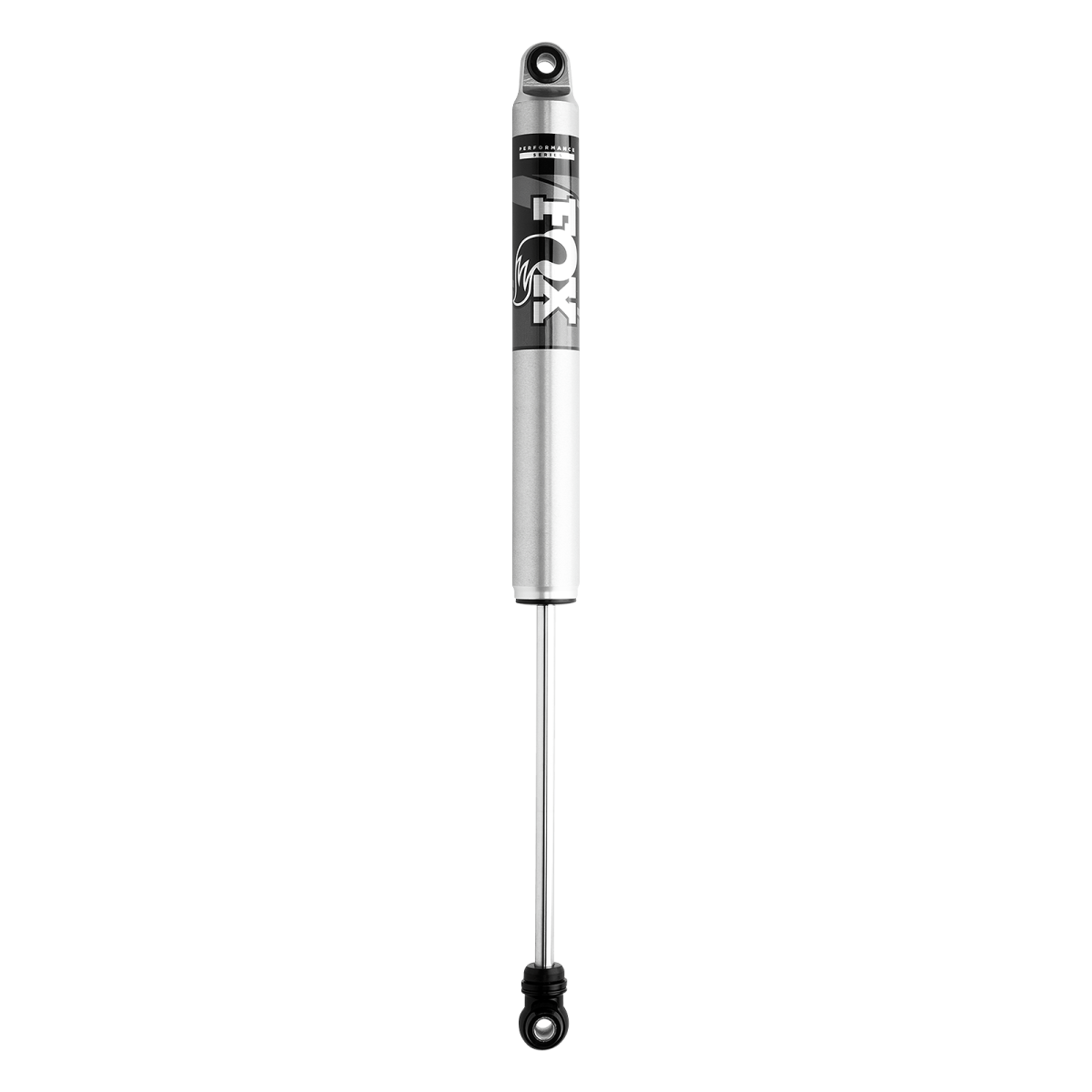

BDS FOX 2.0 IFP Rear Shock | Performance Series | 0–1.5" Lift | Ford F250/F350 Super Duty (2017–2026) 4WD

Overview

Upgrade the on-road comfort and off-road control of your 2017–2026 Ford F250 or F350 Super Duty 4WD with FOX Performance Series 2.0 IFP rear shocks. Designed to fit 0 to 1.5-inch lift applications, these shocks feature a mono-tube internal floating piston (IFP) design that separates shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration, allowing maximum performance from the factory-tuned, precision valving. A precision metal impact aluminum body increases cooling capacity and resists rust. The race-developed high-flow damping piston, combined with application-specific valving, delivers predictable ride quality capable of handling the roughest road conditions.

Features

• 2-inch impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• 5/8-inch hard chrome plated, heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design

Specifications

• Position: Rear
• Lift Height: 0–1.5"
• Type: Smooth Body IFP
• Compressed Length: 18.5"
• Extended Length: 30.11"
• Travel Length: 11.61"
• Shaft Diameter: 5/8"
• Upper Mount Type: Eyelet (Code: EB1)
• Lower Mount Type: Eyelet (Code: EB1)
• Finish: Clear-Anodized
• Gas Charged: Yes
• Adjustable Damping: No

Installation

• Estimated Installation Time: 1 hour
• Installation Difficulty: Easy
