BDS 4.5 Inch Lift Kit | Chevy/GMC Suburban, Tahoe, Yukon 1500 (2015-2020) 4WD | Cast Steel Control Arms | FOX 2.0 Performance Series Shocks

This configuration is designed for trucks equipped with Cast Steel factory control arms and includes FOX 2.0 Performance Series rear shocks. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

This BDS 4.5-inch lift kit is designed for 2015-2020 Chevy Suburban, Tahoe, and GMC Yukon 1500 4WD models. The kit improves stance, performance, and capability while providing clearance for up to 33-inch tires. It utilizes a high-clearance design to improve ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for proper on-road handling.

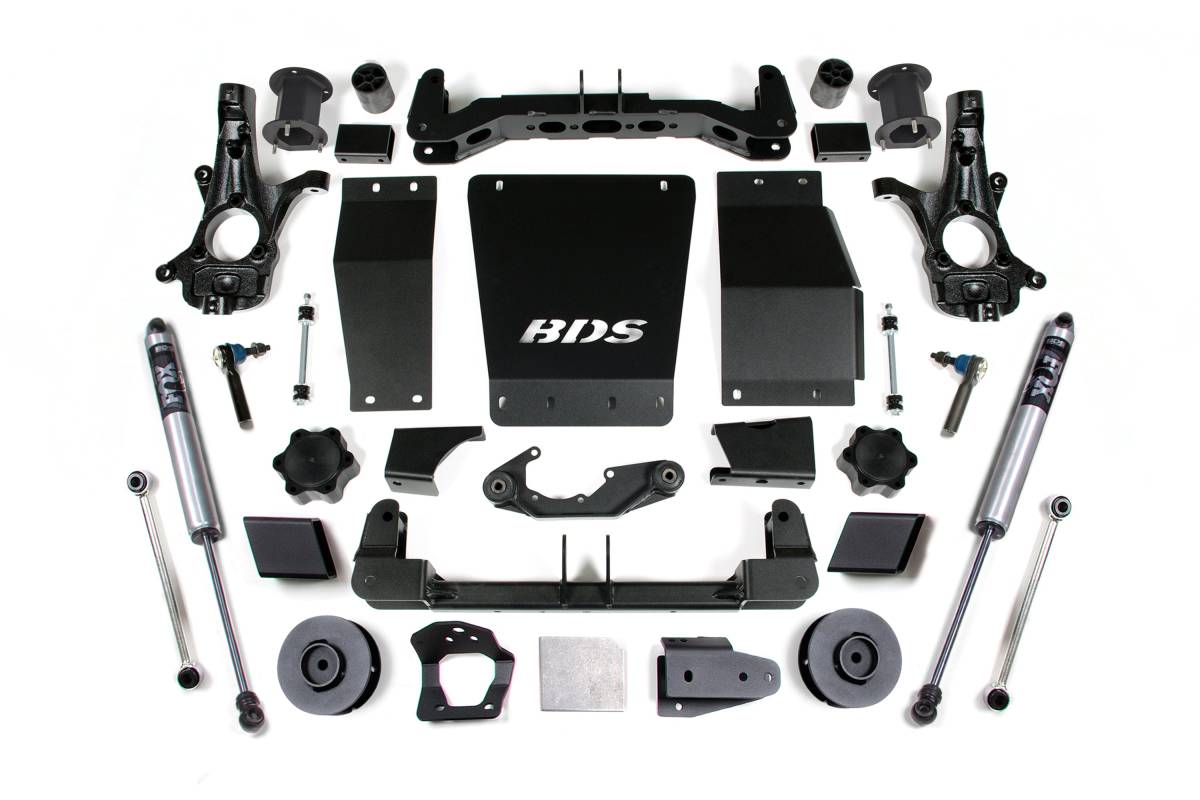

Up front, the kit includes full-length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers, a multipiece differential relocation bracket system, heavy-duty skid plates, and CNC-machined ductile iron steering knuckles to correct steering geometry at the new ride height. Additional front components include sway bar drops, bump stop extensions, brake line brackets, and CV spacers. In the rear, coil spring spacers level the vehicle and precision-tuned rear shocks are included in your selected configuration.

Features

• High-clearance crossmember design maximizes ground clearance
• Heavy-duty 1/4-inch thick laser-cut steel crossmembers paired with a front skid plate system that bolts together to form a rigid subframe
• CNC-machined ductile cast iron steering knuckles correct geometry at the new ride height, maintaining factory tie rod end compatibility, proper steering angles, and ESC system compliance
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Heavy-duty skid plate system for improved off-road protection
• Rear coil spring spacers for proper vehicle leveling
• Factory Protection Plus drivetrain warranty included
• Available with NX2 Nitro Series or FOX 2.0 Performance Series rear shocks
• Available for Cast Steel or Aluminum/Stamped Steel factory control arm configurations

Specifications

• Lift Height: 4.5 inches
• Tire Clearance: Up to 33 inches
• Crossmember Thickness: 1/4-inch laser-cut steel
• Steering Knuckles: CNC-machined ductile cast iron
• Rear Lift Method: Coil spring spacers
• Compatible with: 2015-2020 Chevy Suburban, Tahoe, and GMC Yukon 1500 4WD

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Tools Required: Cut-off wheel or equivalent, reciprocating saw, strut compressor, welding equipment

Important Notes

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2017 model trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images when customizing your kit. Requires frame bracket modification. 20-inch wheels with 5-inch to 5-3/4-inch backspacing are recommended to reduce trimming. AWD models may require front driveline modification. Factory 17-inch and 18-inch wheels cannot be reinstalled due to tie rod interference. Will not work with auto-ride or Magna-ride equipped vehicles.
