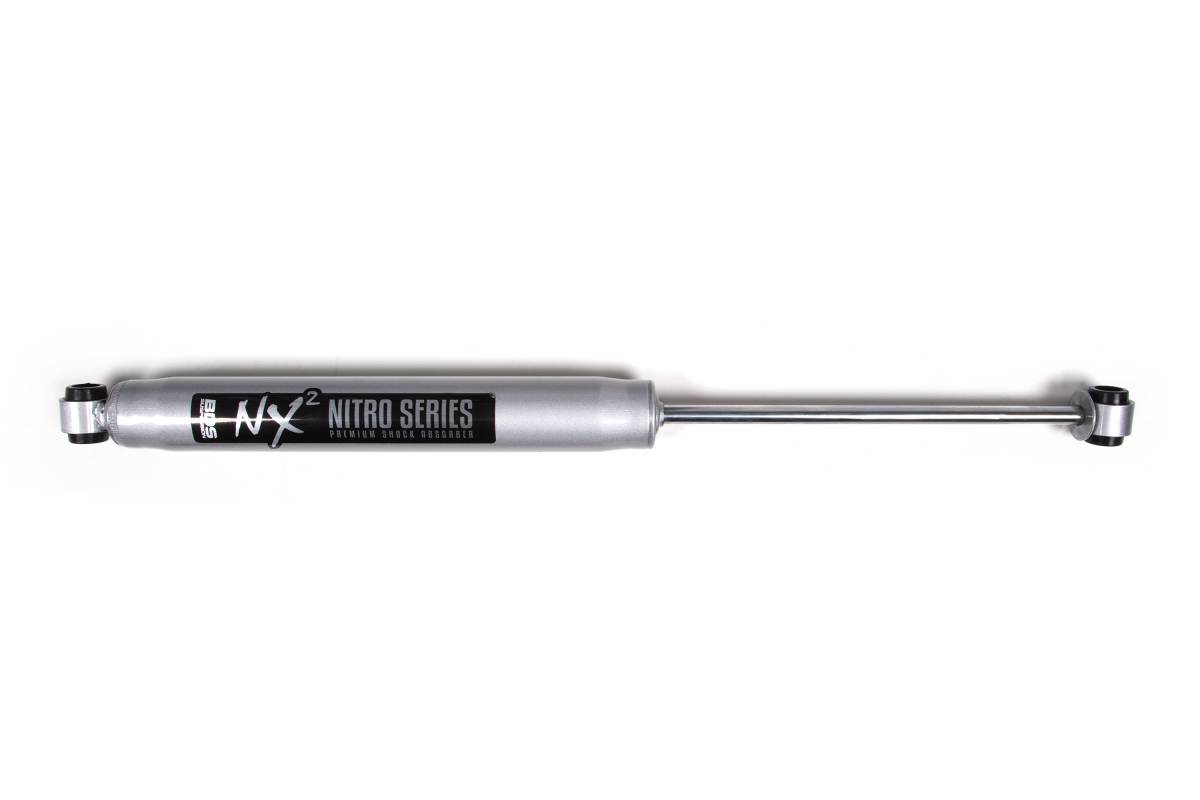

BDS NX2 Nitro Series Rear Shock | 2.5 Inch Lift | 2019-2021 Ford Ranger 4WD

Overview

The BDS NX2 Nitro Series rear shock is designed for 2019–2021 Ford Ranger 4WD trucks running a 2.5-inch lift kit. Using a pressurized nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, these shocks deliver fast, adaptive damping across a wide range of on- and off-road terrain. The 2-inch body houses a large 1-3/8-inch fluon-banded piston with self-lubricating seals and a 14mm hardened chrome shaft engineered to resist rock chips and corrosion. Polyurethane bushings and metal sleeves are included for straightforward installation. Compatible with all current BDS lift kits and finished in a durable metallic silver paint with NX2 decals.

Features

• Vehicle-specific valving for better control
• Pressurized nitrogen-charged twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch fluon-banded piston with self-lubricating seals
• High-end performance at an affordable price

Specifications

• Adjustable Damping: No
• Compressed Length: 15.22 in
• Extended Length: 25.22 in
• Travel Length: 10 in
• Shaft Diameter: 14mm
• Type: Twin Tube
• Gas Charged: Yes
• Upper Mount Type: Eyelet (Code: EB1)
• Lower Mount Type: Eyelet (Code: EB2)
• Finish: Metallic Silver
