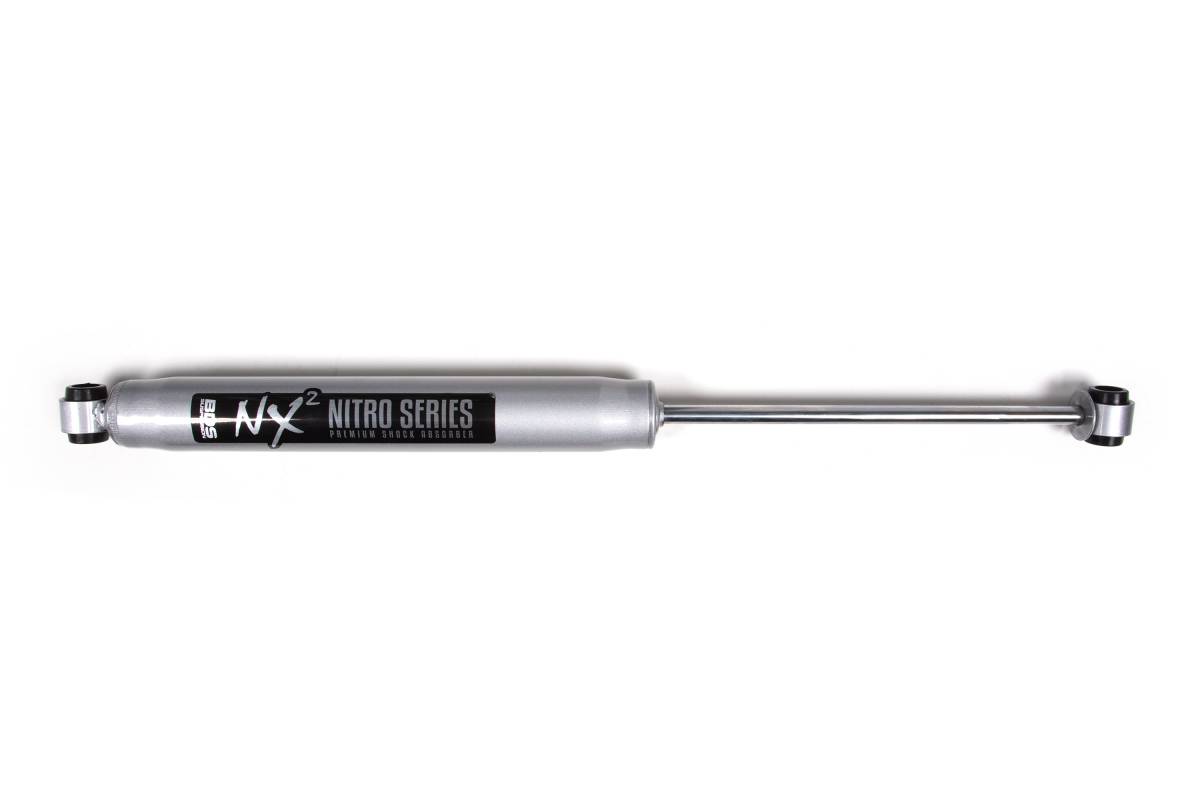

BDS NX2 Nitro Series Rear Shock | 4 Inch Lift | 2004-2026 Ford F150 4WD

Overview

Upgrade your 2004–2026 Ford F150 4WD with BDS NX2 Nitro Series rear shocks, delivering high-end performance at an affordable price. These shocks use a pressurized nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving for fast, terrain-adaptive dampening both on- and off-road. The 2-inch bodied shocks feature a large 1-3/8-inch fluon-banded piston, self-lubricating seals, and a 14mm hardened chrome shaft to resist rock chips and corrosion. Polyurethane bushings and metal sleeves are included for straightforward installation. Available in various stem and eyelet bushing configurations for custom applications and compatible with all current BDS lift kits. Finished in durable metallic silver paint with NX2 decals. Designed to work with a 4-inch lift kit.

Features

• Vehicle-specific valving for better control
• Pressurized nitrogen-charged twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch fluon-banded piston with self-lubricating seals
• High-end performance at an affordable price

Specifications

• Type: Twin Tube
• Gas Charged: Yes
• Adjustable Damping: No
• Shaft Diameter: 14mm
• Compressed Length: 18.17 in
• Extended Length: 30.95 in
• Travel Length: 12.78 in
• Upper Mount Type: Eyelet (Code: EB1)
• Lower Mount Type: Eyelet (Code: EB1)
• Finish: Metallic Silver
