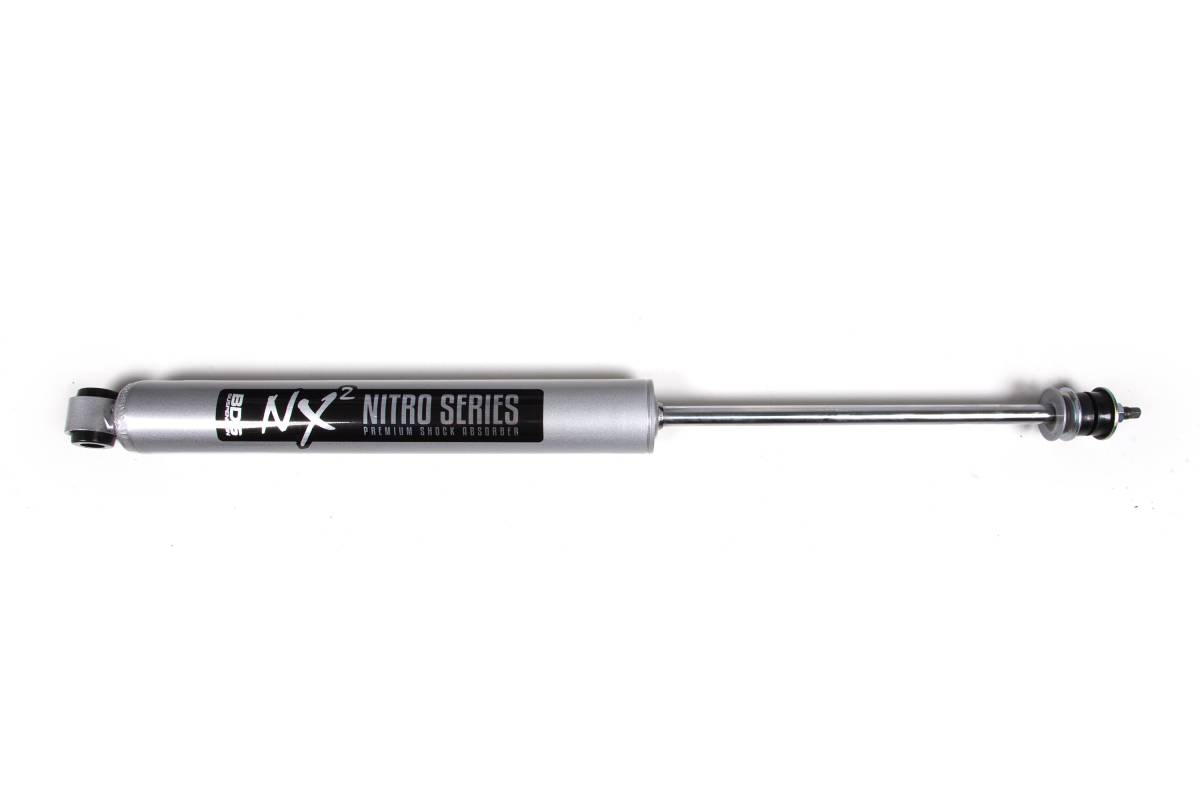

BDS NX2 Nitro Series Front Shock | 4-6 Inch Lift | 1977-1996 Ford F150 / Bronco

Overview

Upgrade your 1977–1996 Ford F150 or Bronco with BDS NX2 Nitro Series front shocks, delivering high-end performance at an affordable price. These shocks feature a pressurized nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving for rapid damping response across any terrain, on- or off-road. The 2-inch body houses a large 1-3/8-inch fluon-banded piston, self-lubricating seals, and a 14mm hardened chrome shaft engineered to resist rock chips and corrosion. Polyurethane bushings and metal sleeves are included to simplify installation. Compatible with all current BDS lift kits and designed to work with 4 to 6-inch lift applications. Finished in durable metallic silver paint with NX2 decals.

Features

• Vehicle-specific valving for better control
• Pressurized nitrogen-charged twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch fluon-banded piston with self-lubricating seals
• High-end performance at an affordable price

Specifications

• Adjustable Damping: No
• Compressed Length: 13.92 in
• Extended Length: 22.92 in
• Travel Length: 9 in
• Shaft Diameter: 14mm
• Type: Twin Tube
• Gas Charged: Yes
• Upper Mount Type: Stem (Code: S1)
• Lower Mount Type: Eyelet (Code: EB1)
• Finish: Metallic Silver
