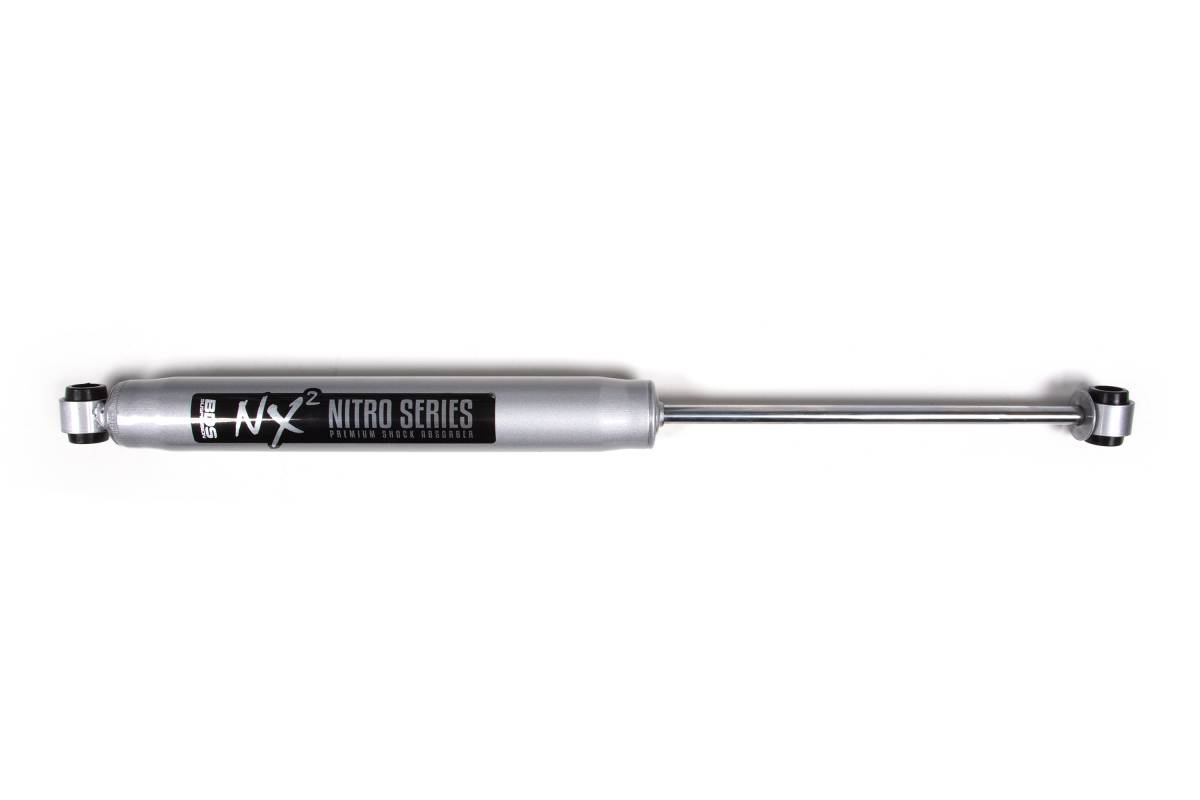

BDS NX2 Nitro Series Front Shock | 4-6 Inch Lift | 2019-2024 Ram 3500 4WD

Overview

Upgrade your 2019–2024 Ram 3500 4WD with the BDS NX2 Nitro Series front shock, engineered to deliver high-end damping performance at an affordable price. Built around a pressurized nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, these shocks adapt rapidly to changing terrain whether on-road or off. The 2-inch body houses a large 1-3/8-inch fluon-banded piston with self-lubricating seals and a 14mm hardened chrome shaft for enhanced resistance to rock chips and corrosion. Polyurethane bushings and metal sleeves are included for straightforward installation. Compatible with all current BDS lift kits and designed to work with 4 to 6-inch lift applications. Finished in durable metallic silver paint with NX2 decals.

Features

• Vehicle-specific valving for better control
• Pressurized nitrogen-charged twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch fluon-banded piston with self-lubricating seals
• High-end performance at an affordable price

Specifications

• Type: Twin Tube
• Compressed Length: 15.96 in
• Extended Length: 26.78 in
• Travel Length: 10.82 in
• Shaft Diameter: 14mm hardened chrome
• Upper Mount Type: Stem (Code: S50)
• Lower Mount Type: Eyelet (Code: EB2)
• Gas Charged: Yes
• Adjustable Damping: No
• Finish: Metallic Silver

Installation

• Estimated Installation Time: 1 hour
• Installation Difficulty: Easy
