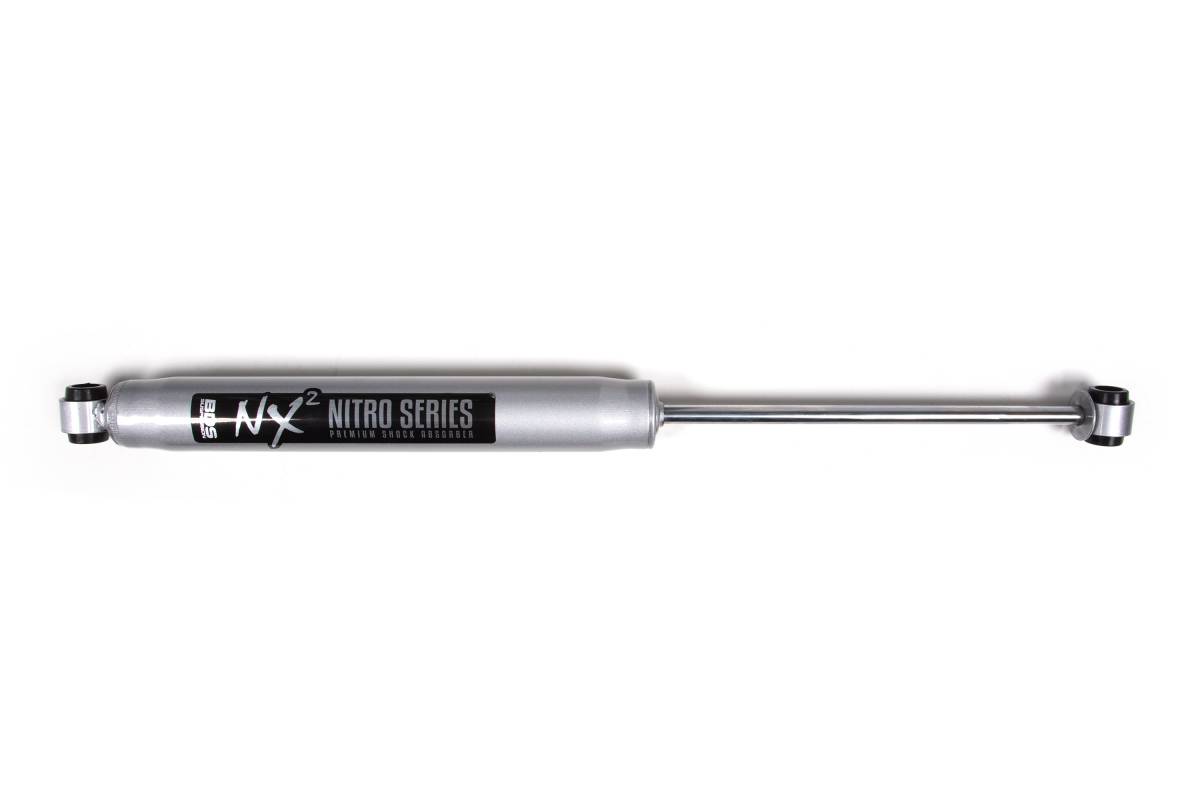

BDS NX2 Nitro Series Rear Shock | 0 Inch Lift | 2004-2026 Ford F150 4WD

Overview

Upgrade your 2004–2026 Ford F150 4WD with BDS NX2 Nitro Series rear shocks, delivering high-end performance at an affordable price. Built around a pressurized nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, these shocks provide lightning-fast dampening that adapts to changing terrain on- and off-road. The 2-inch body houses a large 1-3/8-inch fluon-banded piston, self-lubricating seals, and a 14mm hardened chrome shaft engineered to resist rock chips and corrosion. Polyurethane bushings and metal sleeves are included for straightforward installation. Compatible with all current BDS lift kits and designed for use with a 0-inch lift application.

Features

• Vehicle-specific valving for better control
• Pressurized nitrogen-charged twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch fluon-banded piston with self-lubricating seals
• 14mm hardened chrome shaft resists rock chips and corrosion
• Polyurethane bushings and metal sleeves included
• Finished in durable metallic silver paint with NX2 decals
• Compatible with all current BDS lift kits

Specifications

• Type: Twin Tube
• Gas Charged: Yes
• Adjustable Damping: No
• Shaft Diameter: 14mm
• Compressed Length: 16.55 in
• Extended Length: 27.91 in
• Travel Length: 11.36 in
• Upper Mount Type: Eyelet (Code: EB1)
• Lower Mount Type: Eyelet (Code: EB1)
• Finish: Metallic Silver
