BDS 2 Inch Leveling Kit | FOX 2.5 Performance Elite Coilover | Toyota Tacoma (2024-2025)

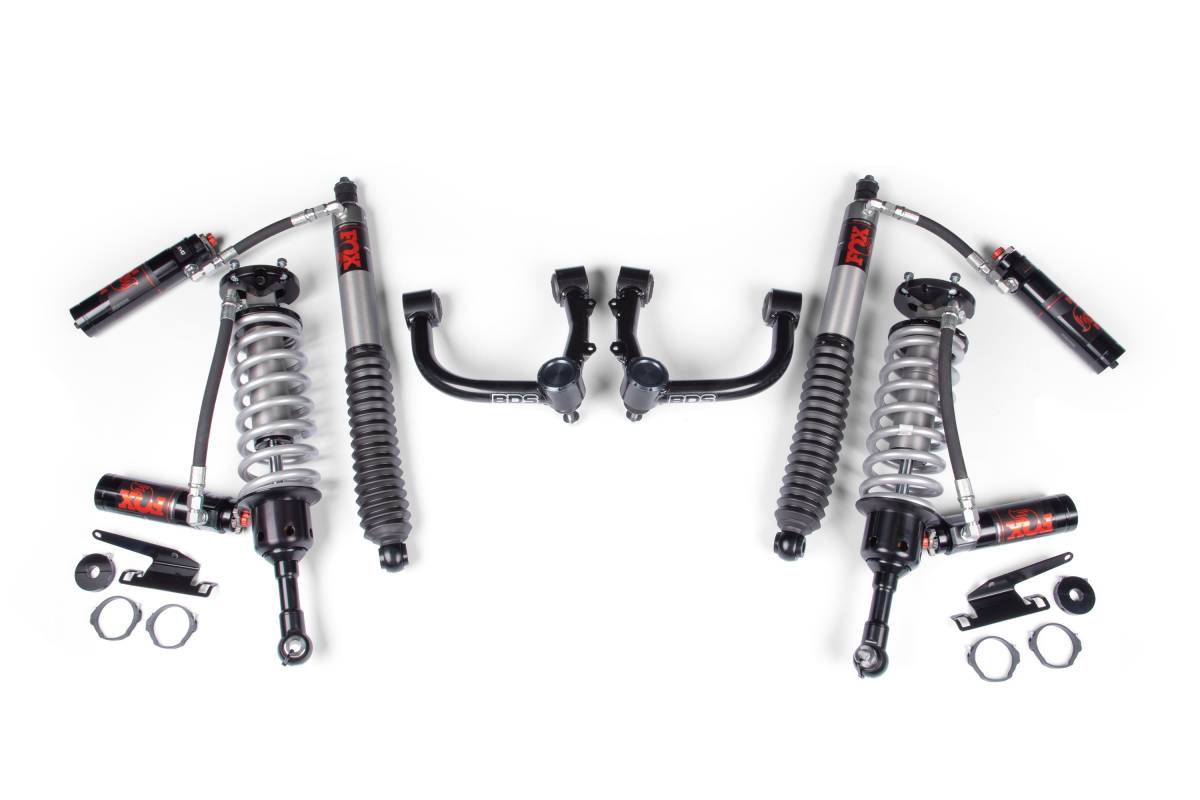

Configured with FOX 2.5 Performance Elite coilovers featuring a 2.5-inch impact extruded aluminum body, a massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, an external reservoir, and the DSC EVO Dual Speed Compression adjuster for tool-free high and low-speed compression adjustment. Offers a broader tuning range, improved oil flow, and more intuitive on-the-fly adjustments for ride quality, body control, bottom-out resistance, and overall suspension feel. Fully serviceable.

Overview

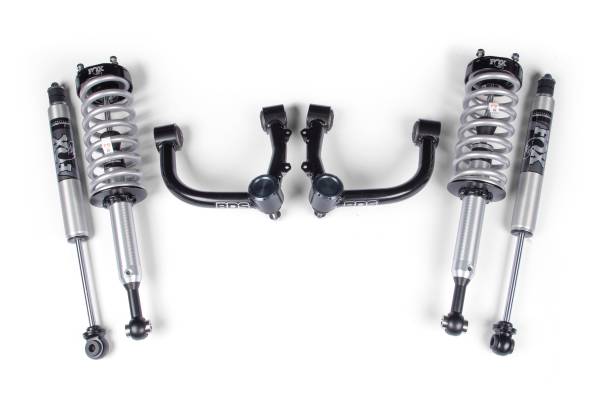

The BDS 2-inch Coilover Shock Leveling Kit combines premium FOX coilover technology with heavy-duty BDS tubular upper control arms to improve suspension geometry, increase wheel travel, and deliver long-term durability for the 2024–2025 Toyota Tacoma. This system is available with multiple FOX shock options — FOX 2.0 Performance Series, FOX 2.5 Performance Series HTO, FOX 2.5 Performance Elite, and FOX 3.0 Factory Race Series IBP — allowing you to select the level of on- and off-road performance that best matches your driving needs. The coilover and upper control arm combination levels the truck, improves front-end clearance, and fits 33-inch tires, all backed by the BDS No Fine Print Warranty.

Features

• BDS 1.5-inch DOM tube upper control arms (UCAs) with corrected ball joint angle to increase travel over the OEM UCA
• Fully welded heavy wall steel UCA construction with indexed ball joint cups to optimize alignment and maximize suspension travel
• Front FOX coilover shocks paired with tune-matched rear shocks
• 2-inch front lift providing a level stance
• Fits 33-inch tires
• FOX 2.5 Performance Elite and FOX 3.0 Factory Race IBP variants include external reservoirs and DSC EVO Dual Speed Compression adjuster for tool-free high and low-speed compression adjustment
• DSC EVO adjuster offers a broader tuning range, improved oil flow, and refined internal porting for on-the-fly suspension tuning without tools
• Backed by the BDS No Fine Print Warranty

Specifications

• Lift Height: 2 inches (front)
• UCA tube size: 1.5-inch DOM steel, fully welded heavy wall construction
• FOX 2.0 Performance Series: 2-inch impact extruded aluminum body, IFP monotube design, 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, clear anodized finish
• FOX 2.5 Performance Series HTO: 2.5-inch impact extruded aluminum body, 5/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir, Hydraulic Top Out (HTO) technology, fully serviceable
• FOX 2.5 Performance Elite: 2.5-inch impact extruded aluminum body, 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir, DSC EVO Dual Speed Compression adjuster, fully serviceable
• FOX 3.0 Factory Race Series IBP: 3.0-inch impact extruded and CNC machined 6061-T6 hard-anodized aluminum body, 7/8-inch hard chrome plated heat-treated alloy steel shaft, aluminum finned remote reservoir with Recirculating Reservoir Bridge, position-sensitive internal bypass technology, DSC EVO Dual Speed Compression adjuster, fully serviceable
• FOX shock warranty: 1-year Manufacturer's Warranty

Installation

• Estimated Installation Time: 4 hours
• Difficulty: Moderate
• Tools Required: Metric/Standard Socket Wrench Set, Ball Joint Separation Tool

Important Notes

The spring preload is set by FOX to last the life of the product. If any preload is added, a bumpstop spacer must be installed to prevent coilbind and to preserve spring life.
