BDS 2-3 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Toyota Hilux (2015-2025)

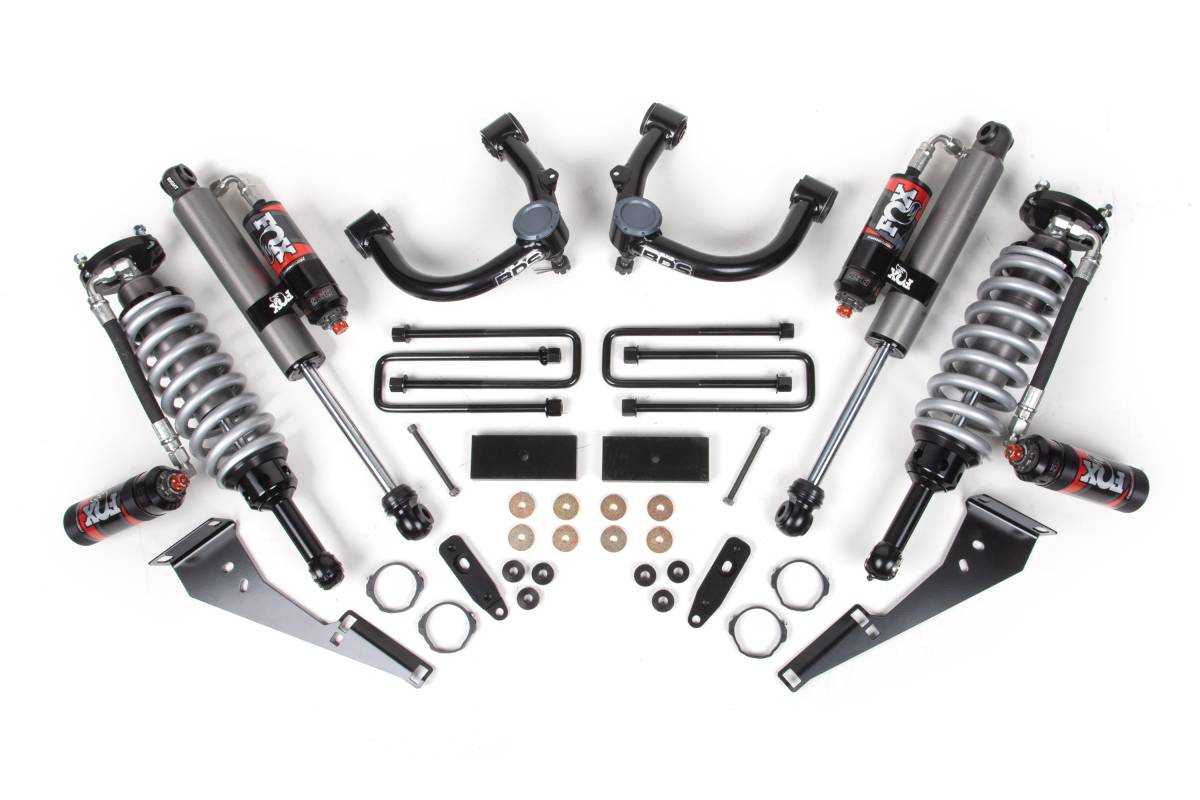

Configured with FOX 2.5 Performance Elite Coil-Overs. Features a 2.5-inch impact extruded aluminum body, a 5/8-inch hard chrome plated heat-treated alloy steel shaft, and Hydraulic Top Out (HTO) technology for usable position-sensitive rebound damping control on and off pavement. Fully serviceable for a lifetime of use. Includes a 1-year Manufacturer's Warranty.

Overview

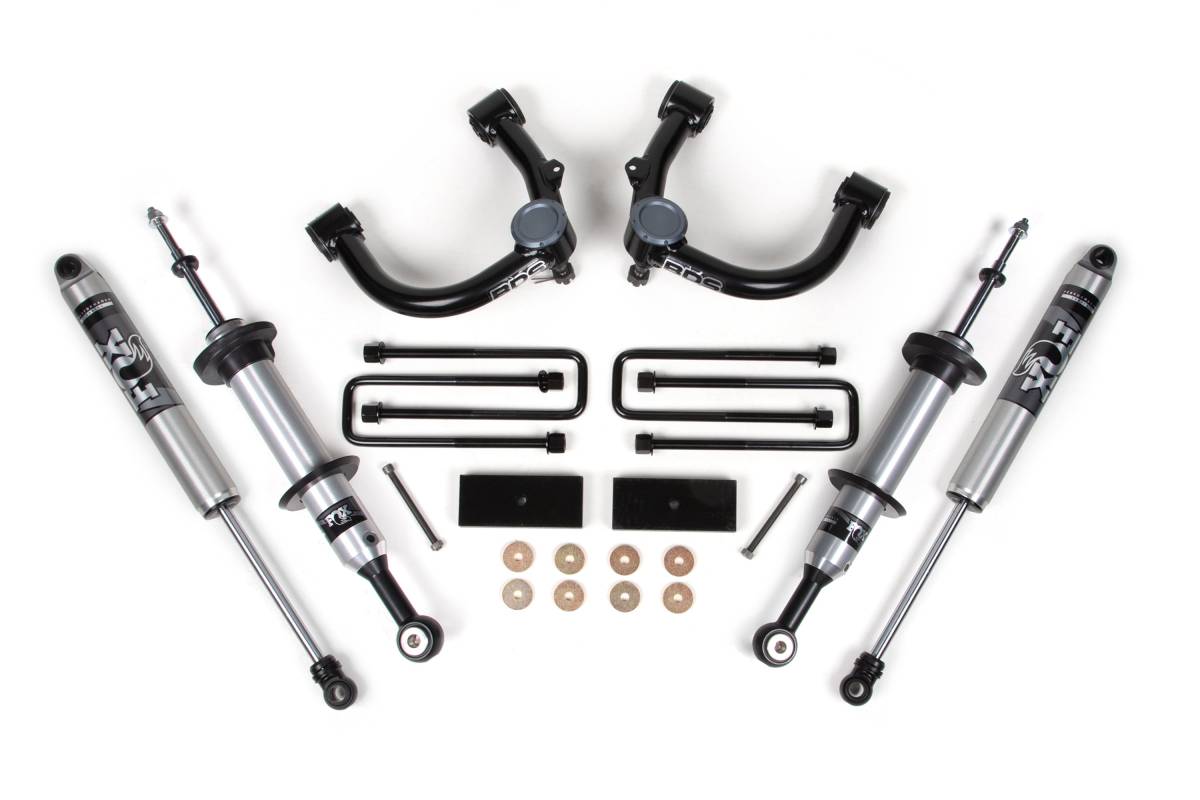

BDS Suspension introduces a high-performance suspension upgrade for the Toyota Hilux (2015–2025), designed to deliver exceptional ride quality, strength, and off-road capability. The system pairs heavy-duty BDS upper control arms with a choice of FOX coil-over options — the FOX 2.0 Performance Series Snap Ring Strut, the FOX 2.5 Performance Series HTO Coil-Over, or the FOX 2.5 Performance Elite Coil-Over — providing 2–3 inches of lift depending on the front coil-over selected. At the rear, BDS Engineering and FOX Ride Engineering collaborated to tune the rear shocks specifically to work in harmony with the Hilux's factory leaf spring rate, ensuring a balanced and responsive ride under load and off-road conditions.

Features

• 2–3 inches of lift depending on the front coil-over selected
• BDS upper control arms increase strength and allow for increased suspension travel
• Choice of FOX coil-over options for customizable performance
• Front and rear FOX shocks designed and tuned specifically for the Toyota Hilux application
• Rear shocks specifically valved for factory Hilux leaf springs
• Enhanced stability and control across all driving conditions
• Bolt-on installation
• Backed by BDS's No Fine Print Warranty
• Factory protection plus drivetrain warranty included

Installation

• Estimated Installation Time: 3–4 hours
• Difficulty: Moderate
• Special Tools Required: 35mm Axle Nut Socket, Cut-off Tool
