BDS 3 Inch Lift Kit | FOX 2.5 Performance Elite Coilovers | 2022-2026 Toyota Tundra 4WD

Overview

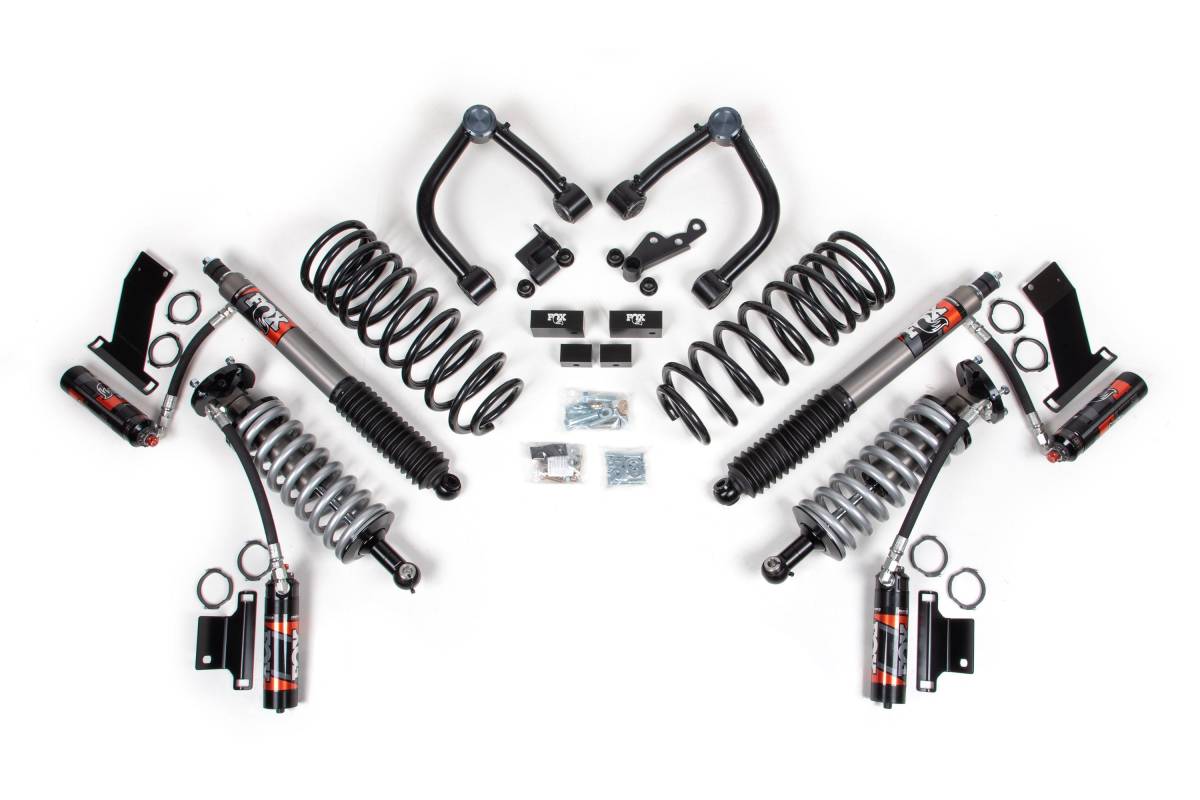

This 0–3 inch lift kit for the 2022–2026 Toyota Tundra 4WD is designed to improve stance, performance, and off-road capability. Featuring FOX 2.5 Performance Elite Coilovers up front and FOX 2.5 Performance Elite shocks in the rear — both equipped with DSC remote reservoirs — the kit provides adjustable compression damping for on- and off-road tuning. Up front, the kit also includes BDS heavy duty tubular upper control arms, heavy duty differential drop brackets, and solid aluminum sway bar drop blocks. The rear uses 1–3/4 inch BDS heavy duty coil springs paired with the FOX 2.5 Performance Elite rear shocks. The kit provides clearance for up to 35 inch tires and installs with 100% bolt-on hardware.

DSC Adjustment: The FOX 2.5 Performance Elite front coilovers and rear shocks feature Dual Speed Compression (DSC) adjustment, allowing independent tuning of high-speed and low-speed compression damping via two clearly defined knobs for immediate feedback across any terrain.

HD Upper Control Arms: These upper control arms use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct ball joint positioning, allowing additional down travel and camber adjustment. Frame-end durometer-specific rubber bushings provide maintenance-free operation, while a greaseable ball joint at the knuckle end ensures smooth, quiet operation. Arms are finished in durable black powder coat with a billet aluminum dust cap.

Features

• FOX 2.5 Performance Elite series DSC coilovers offer improved damper performance over stock
• BDS performance upper control arms (UCAs) increase strength and allow for more suspension travel
• FOX 2.5 Performance Elite series DSC rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100% bolt-on installation

Specifications

• Lift Height: 2–3.5 inches
• Front Lift Method: Coil-Over
• Front Lift Height: 3 inches
• Rear Lift Method: Springs
• Rear Lift Height: 1 inch
• Shocks Included: Yes

Installation

• Estimated Time: 4–5 hours
• Difficulty: Moderate
• Tools Required: Basic hand tools, hydraulic floor jack, and jack stands

Important Notes

• TRD Sport models will achieve the extra lift but will have the same stance as other models in the front.
• Will not work with Adaptive Variable Suspension (AVS) System equipped vehicles.
• Will not work with Air Ride models.
• Will not work with TRD Pro models.
• For regular off-road use, it is recommended to upgrade Non TRD Off-Road truck half axles (CVs) to Toyota TRD units (Driver Toyota Part# 434200C020, Passenger Toyota Part# 434100C020). Does not apply to TRD Pro model.
• Ball joint cap must be removed for maintenance of ball joint. Remove cap to access grease zerk. Grease at regular maintenance intervals.
• For replacement ball joints, order BDS088200. Ball joints are directional and must be positioned correctly when installed on the upper control arm.
• The ADAS system in some vehicles needs to be recalibrated by a certified shop. The vehicle may warn the driver of potential collision from lower bridges, overhead signs/wires, and signs in windy conditions. Most windshield repair shops (Safelite) and dealers are capable of performing this recalibration.
