BDS 2 Inch Leveling Kit | FOX 2.0 Snap Ring Struts & HD Upper Control Arms | 2005-2015 Toyota Tacoma 4WD

Overview

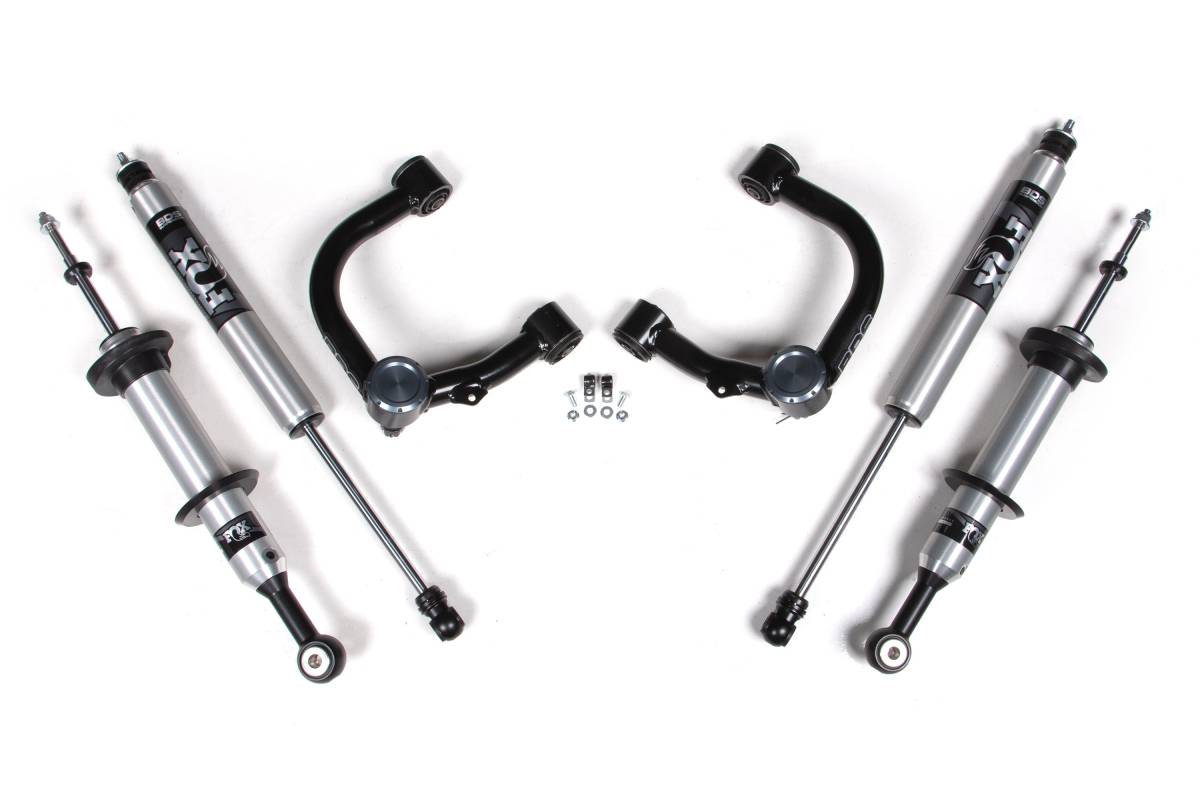

Upgrade your 2005–2015 Toyota Tacoma 4WD with this 2-inch leveling kit from BDS Suspension, featuring FOX 2.0 Snap Ring Struts and heavy-duty tubular upper control arms. Designed to improve stance, performance, and capability, the kit includes everything needed to level your truck and create clearance for up to 32-inch tires. Up front, FOX 2.0 Performance Series struts and HD upper control arms deliver increased strength and suspension travel. In the rear, a matching set of FOX 2.0 Performance shocks ensures a smooth, balanced ride.

Features

• FOX 2.0 Performance Series struts offer improved damper performance over factory and are a direct bolt-in replacement
• Performance upper control arms increase strength and allow for more suspension travel
• FOX 2.0 Performance Series IFP rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100% bolt-on installation

Specifications

• Front Lift Method: Coil-Over
• Front Lift Height: 2"
• Rear Lift Method: Stock
• Rear Lift Height: 0"
• Lift Height Range: 2"–3.5"
• Shocks Included: Yes
• FOX 2.0 Snap Ring Strut: Mono-tube design with internal floating piston (IFP) separating shock oil from high-pressure, nitrogen-charged gas chamber; eliminates oil aeration for maximum performance; custom-molded spring seat compatible with stock spring and mounting hardware; precision impact-extruded 2-inch aluminum body — lightweight and rust resistant; three predetermined preload settings for 0, 1, or 2 inches of lift
• HD Upper Control Arms: 1.5" OD x .120-wall tubular construction; indexed ball joint cup corrects ball joint positioning for additional down travel and camber adjustment; durometer-specific rubber bushings at frame mounting ends for maintenance-free operation; greaseable ball joint at outer end for smooth, quiet operation and superior durability; durable black powder coat finish with billet aluminum dust cap

Installation

• Estimated Installation Time: 3–4 hours
• Installation Difficulty: Moderate
• Installation Type: 100% bolt-on

Important Notes

265/75R16 tires on the stock wheels or equivalent.
