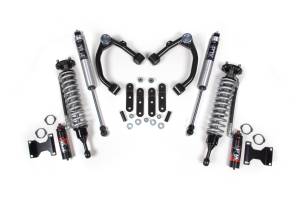

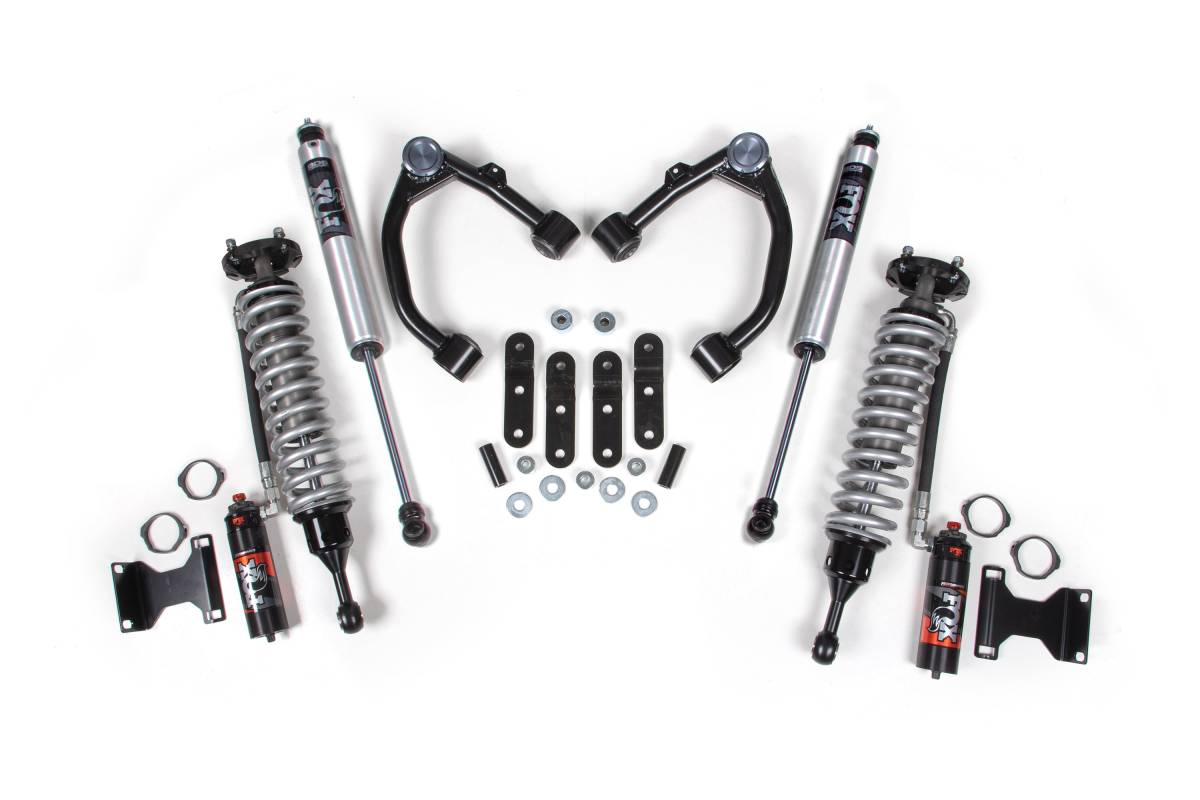

BDS 3 Inch Lift Kit w/ FOX 2.0 Performance Series Shocks | Toyota Tundra (2007-2021) 2/4WD

Configured with FOX 2.0 Performance Series rear shocks featuring a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, a race-developed high-flow piston design, and application-specific valving. Long-lasting clear anodized finish included.

Overview

The BDS Suspension 3-inch Lift Kit for the Toyota Tundra (2007–2021) combines BDS Upper Control Arms with FOX Performance shocks to increase ride height, improve wheel travel, and expand off-road capability. The upper control arms are engineered to maintain optimal suspension geometry while the FOX shocks deliver improved damping control and reduced body roll over rough terrain. The kit accommodates larger tires and increases ground clearance while retaining factory ride quality characteristics.

Features

• Highly engineered upper control arms with 1.5-inch tubular steel construction
• Indexed ball joint provides maximum suspension travel
• Factory-style rubber bushings for long-lasting, maintenance-free operation
• FOX Performance shocks with vehicle-specific spring and valving to maximize performance

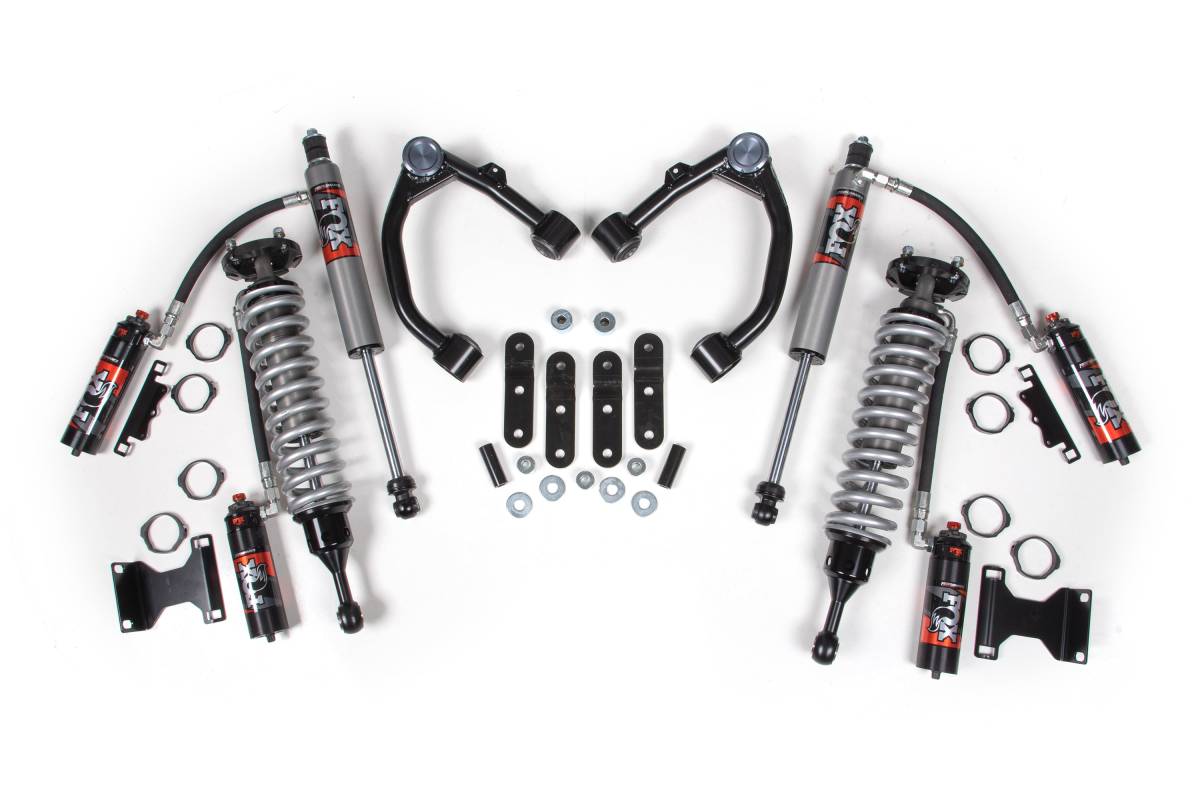

• FOX 2.5 Performance Elite option: 2.5-inch impact extruded and CNC machined 6061-T6 Type III anodized aluminum body with smooth bore and honed seamless alloy reservoir
• Dual Speed Compression (DSC) adjuster standard on FOX 2.5 Performance Elite
• 7/8-inch hard chrome plated steel shafts (FOX 2.5 Performance Elite)
• 5/8-inch hard chrome plated heat-treated alloy steel shaft (FOX 2.0 Performance Series)
• Race-developed high-flow piston design (FOX 2.0 Performance Series)

Specifications

• Lift Height: 3 inches (note: TRD Pro models achieve approximately 2 inches of lift due to taller factory ride height)
• Compatible Vehicle: Toyota Tundra 2007–2021, 2WD and 4WD
• Upper Control Arm construction: 1.5-inch tubular steel
• FOX 2.5 Performance Elite body diameter: 2.5 inches
• FOX 2.0 Performance Series body diameter: 2.0 inches

Installation

• Estimated Installation Time: 4–5 hours
• Installation Difficulty: Moderate

Important Notes

• This kit will work on TRD Pro models, but will only net approximately 2 inches of lift due to the taller factory ride height.
• Can be installed on 2WD models; differential drop brackets are not used during installation on 2WD applications.
