BDS 4.5 Inch Lift Kit | Toyota Tundra (2016-2021) 2/4WD | w/ NX2 Nitro Series Rear Shocks

Configured with NX2 Nitro Series rear shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Overview

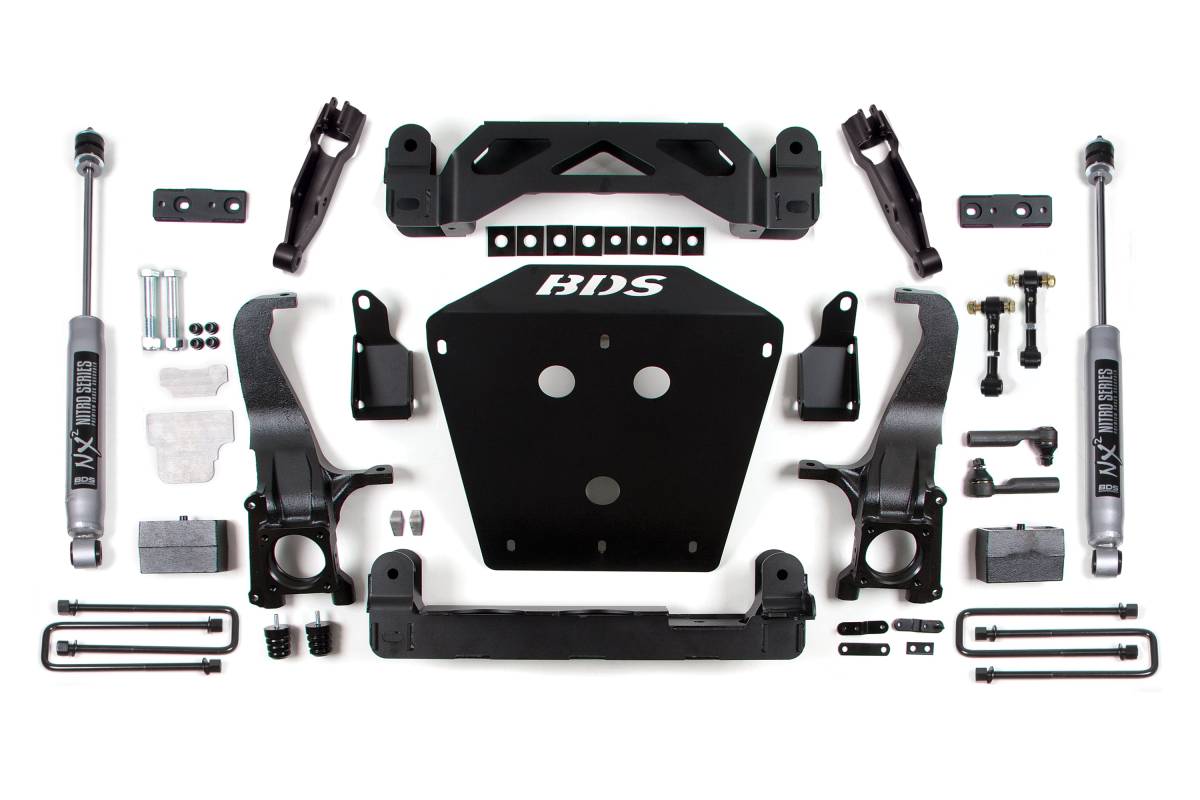

BDS Suspension's 4.5-inch suspension lift kit is designed to improve the stance, performance, and capability of 2016–2021 Toyota Tundra 2WD and 4WD trucks, providing clearance for up to 35-inch tires. Up front, the kit employs a lower strut extension, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates for off-road protection. Steering geometry is corrected at the new ride height using CNC-machined ductile iron steering knuckles with replacement tie rod ends, maintaining ESC system compatibility. Sway bar drops, bump stop extensions, brake line brackets, and all necessary hardware are included. In the rear, the kit uses heavy duty cast steel lift blocks, a brake line bracket, and longer U-bolts, paired with your choice of specially tuned rear shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust CNC-machined ductile cast iron steering knuckles maintain ESC system compliance
• Heavy duty skid plate system for improved off-road protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Choice of BDS NX2 Nitro Series gas shocks or FOX 2.0 Performance Series IFP gas shocks for improved ride and off-road performance
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 4.5 inches
• Compatible Vehicles: 2016–2021 Toyota Tundra 2WD/4WD
• Front crossmembers: 1/4-inch thick laser cut steel, high-arched design
• Steering knuckles: CNC-machined ductile cast iron
• Rear lift blocks: Heavy duty cast steel
• Includes sway bar drops, bump stop extensions, brake line brackets, and hardware
• Tire clearance: Up to 35 inches

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Tools Required: Reciprocating Saw, Strut Compressor, Welding Equipment

Important Notes

• Requires frame bracket modification and welding.
• No strut disassembly required.
• Stock 18-inch wheels cannot be installed.
• Factory 20-inch wheels with more than 6.25-inch backspacing cannot be installed.
• Models with a two-piece rear driveline will require rear driveshaft modification.
• Models equipped with 6-piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
• Will NOT work on TRD Pro (Bilstein and Fox Piggyback Strut) models.
