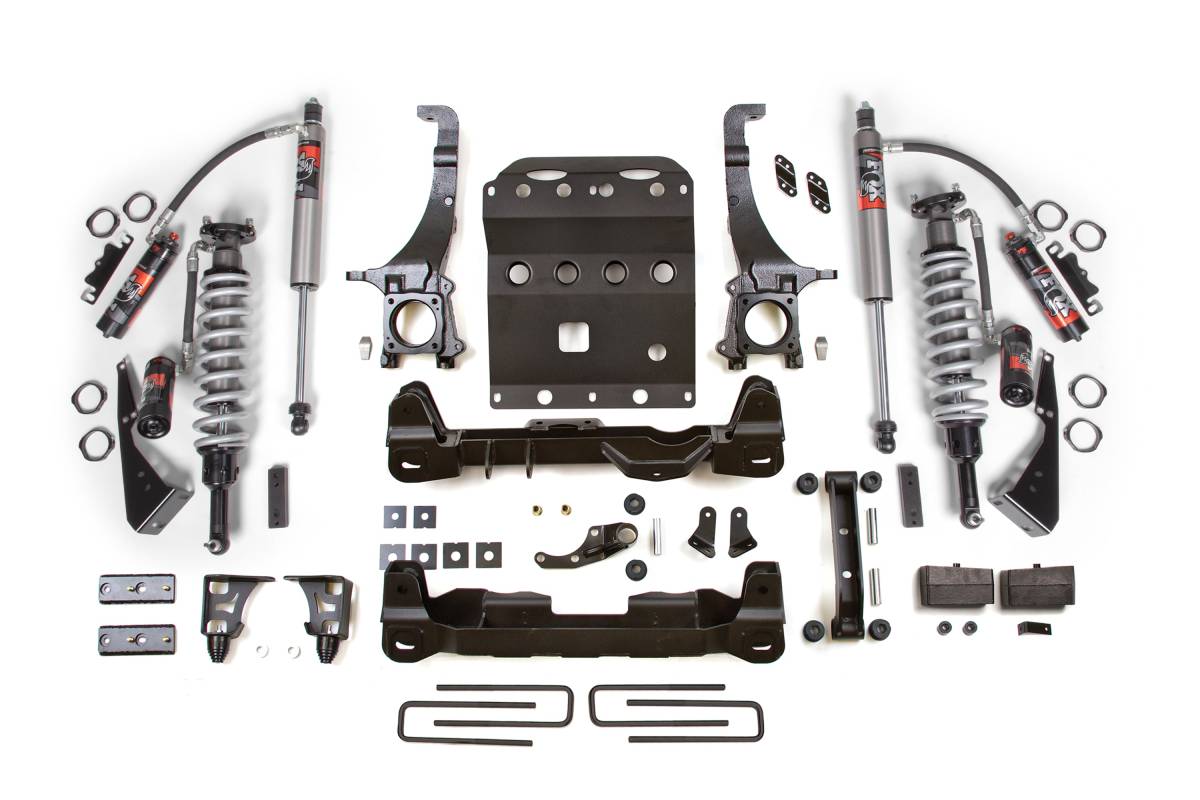

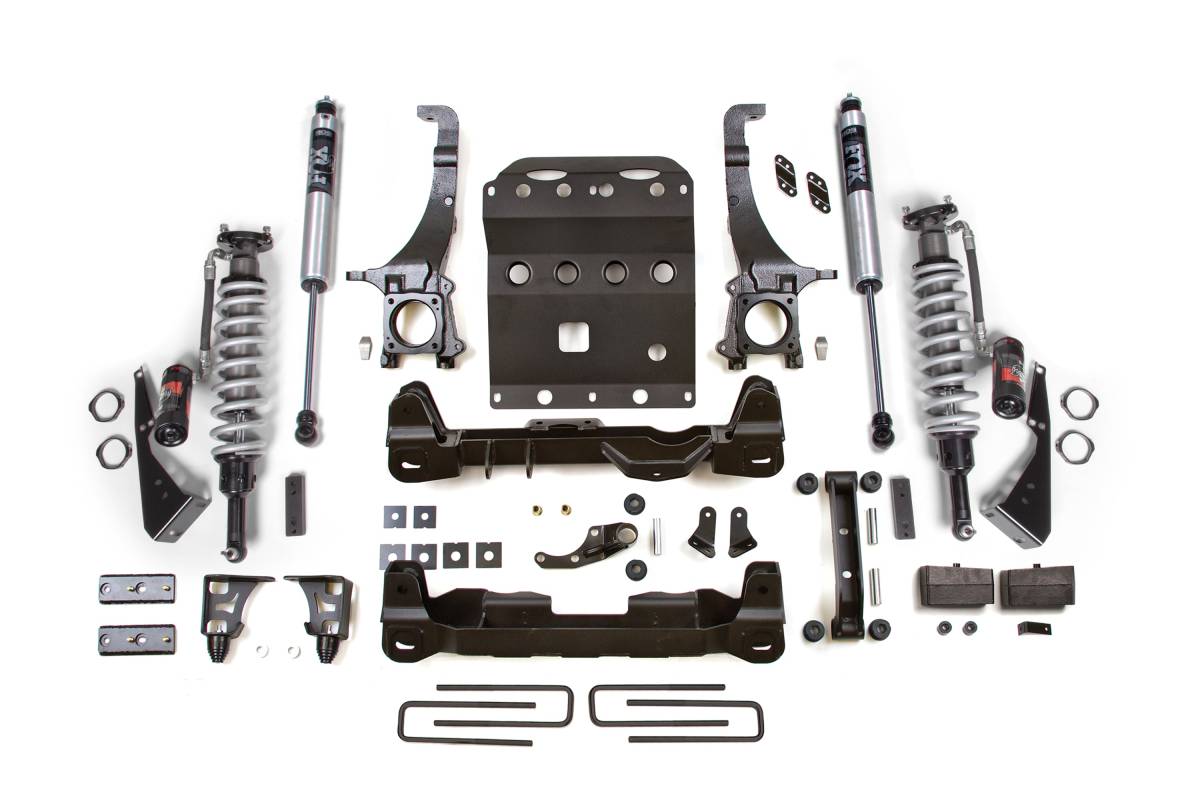

BDS 4 Inch Lift Kit | FOX 2.5 PE Coil-overs | Toyota Tacoma (2005-2015) 4WD | w/ FOX 2.0 Performance Series Rear Shocks

Rear suspension configured with FOX 2.0 Performance Series IFP gas shocks. Features a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, large 5/8-inch hard chrome plated heat-treated alloy steel shaft, and application-specific valving to maximize performance.

Overview

The BDS 4-inch suspension lift kit for 2005–2015 Toyota Tacoma 4WD pairs FOX 2.5 Performance Elite (PE) coil-overs up front with your choice of FOX rear shocks to deliver improved stance, performance, and capability. The kit provides clearance for up to 33-inch tires and includes everything required to complete the installation.

Up front, the kit features high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, heavy duty skid plates, and CNC-machined ductile iron steering knuckles utilizing factory tie rod ends for ESC system compatibility. Sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, FOX reservoir mounts, and all required hardware are included. In the rear, heavy duty cast steel lift blocks, a brake line bracket, and longer U-bolts lift and level the stance without affecting load capacity.

FOX 2.5 PE coil-overs feature a 2.5-inch aluminum body, DSC (Dual Speed Compression) adjuster on the remote reservoir for high-speed/low-speed compression tuning, and race-proven components for improved heat dispersion and durability. For the rear, choose between the FOX 2.0 Performance Series IFP shocks or upgrade to the FOX 2.5 Performance Elite remote reservoir shocks to match the front.

Features

• FOX 2.5 Performance Elite series coil-overs up front paired with choice of FOX 2.0 Performance Series or FOX 2.5 Performance Elite rear shocks
• High clearance crossmember design maximizes ground clearance
• CNC-machined ductile iron steering knuckles maintain ESC system compliance using factory tie rod ends
• Heavy duty skid plate system for improved off-road protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• High-strength American steel construction with fully welded crossmembers
• Provides clearance for up to 33-inch tires
• No Fine Print Warranty included

Specifications

• Lift Height: 4 inches
• Front Shocks: FOX 2.5 Performance Elite coil-overs with DSC adjuster and remote reservoir
• Rear Lift Method: Heavy duty cast steel lift blocks with longer U-bolts
• Crossmember material: 1/4-inch thick high-arched steel
• Steering knuckles: CNC-machined ductile iron
• FOX 2.5 PE coil-over shaft: 7/8-inch hard chrome plated heat-treated alloy steel
• FOX 2.0 IFP shock shaft: 5/8-inch hard chrome plated heat-treated alloy steel
• Compatible with 2WD Pre-Runner models
• Requires 18-inch or larger wheels (17-inch wheels cannot be used)

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Minor welding required
• Requires frame bracket modification

Important Notes

• Will not work on TRD Pro models
• Minor welding required
• Requires frame bracket modification
• Stock wheels cannot be reinstalled
• System will work on 2WD Pre-Runner models
• Kit requires 18-inch or larger wheels; 17-inch wheels cannot be used
