Configured with FOX 2.5 Performance Elite (PE) remote reservoir rear shocks to match the front coil-overs. Features a 2.5-inch impact extruded aluminum body, massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir design that separates shock oil from high-pressure nitrogen, and a DSC (Dual Speed Compression) adjuster for high-speed/low-speed compression tuning. Fully serviceable for a lifetime of use.
Overview

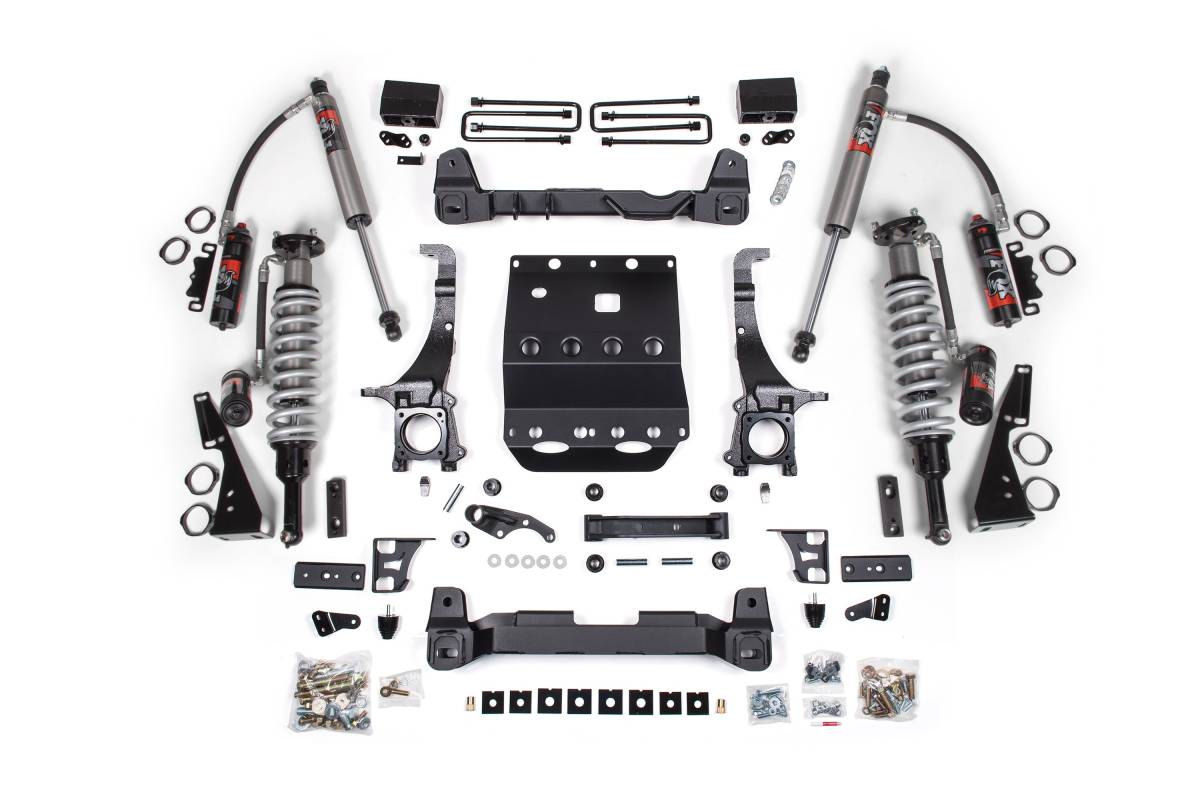

The BDS 6-inch suspension lift kit for the 2005–2015 Toyota Tacoma 4WD pairs FOX 2.5 Performance Elite (PE) coil-overs up front with your choice of FOX rear shocks. The aluminum-bodied FOX 2.5 PE coil-overs are engineered for bolt-on performance with increased travel, DSC (Dual Speed Compression) adjustment, and improved heat dispersion for demanding on- and off-road terrain. The kit provides clearance for up to 35-inch tires and includes all components necessary to complete the installation.
Up front, the FOX 2.5 PE coil-overs are paired with high-arched 1/4-inch thick steel crossmembers, a multipiece differential relocation bracket system, and heavy duty skid plates for off-road protection. Steering geometry is corrected at the new ride height via CNC-machined ductile iron steering knuckles that retain factory tie rod ends and maintain ESC system compatibility. Sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, FOX reservoir mounts, and a full hardware pack are included. In the rear, heavy duty cast steel lift blocks, a brake line bracket, and longer U-bolts lift and level the stance without affecting load capacity.
Features
- FOX 2.5 Performance Elite series coil-overs up front with choice of FOX 2.0 Performance Series or FOX 2.5 PE rear shocks
- High clearance crossmember design maximizes ground clearance
- CNC-machined ductile iron steering knuckles maintain ESC system compliance and use factory tie rod ends
- Heavy duty skid plate system for improved off-road protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- High-arched 1/4-inch thick steel crossmembers, fully welded
- Heavy duty cast steel rear lift blocks with longer U-bolts
- Sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, and FOX reservoir mounts included
- Clearance for up to 35-inch tires
- Factory Protection Plus drivetrain warranty included
- No Fine Print Warranty from BDS Suspension
- Compatible with 2WD PreRunner models
Specifications
- Lift Height: 6 inches
- FOX 2.5 PE Coil-Over Body: 2.5-inch impact extruded aluminum
- FOX 2.5 PE Shaft: 7/8-inch hard chrome plated heat-treated alloy steel
- FOX 2.5 PE Reservoir: External, separates shock oil from high-pressure nitrogen
- FOX 2.5 PE Adjuster: DSC – Dual Speed Compression (high-speed and low-speed compression tuning)
- FOX 2.5 PE Serviceability: Fully serviceable
- FOX 2.0 IFP Body: 2-inch impact extruded aluminum
- FOX 2.0 IFP Design: Internal floating piston (IFP) monotube
- FOX 2.0 IFP Shaft: 5/8-inch hard chrome plated heat-treated alloy steel
- FOX 2.0 IFP Mounting Ends: CNC machined 6061-T6 aluminum
- FOX 2.0 IFP Finish: Clear anodized
- FOX Manufacturer's Warranty: 1 year
- Crossmember Material: 1/4-inch thick high-strength steel, fully welded
Installation
- Estimated Installation Time: 8–10 hours
- Installation Difficulty: Difficult
- Note: Minor welding required; frame bracket modification required
Important Notes
- Will not work on TRD Pro models
- Minor welding required
- Requires frame bracket modification
- Stock wheels cannot be reinstalled
- System will work on 2WD PreRunner models
- Kit requires 18-inch or larger wheels; 17-inch wheels cannot be used
