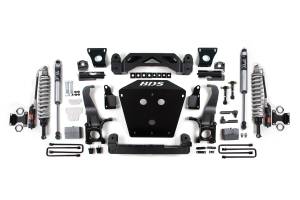

BDS 7 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over & FOX 2.0 Performance Series Rear Shocks | Toyota Tundra (2007-2015) 2/4WD

Configured with FOX 2.0 Performance Series rear shocks. Features a 2-inch impact-extruded aluminum body, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, an internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, and a race-developed high-flow piston with application-specific valving. Long-lasting clear anodized finish. 1-year Manufacturer's Warranty.

Overview

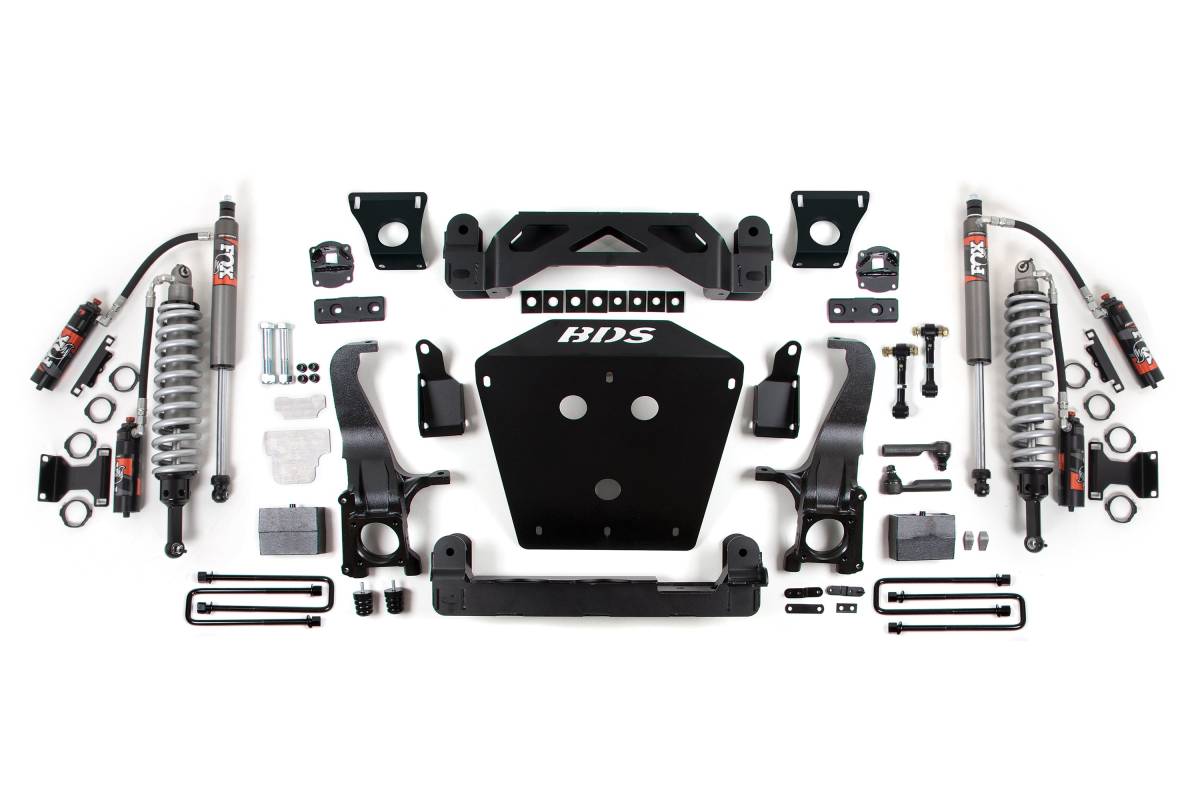

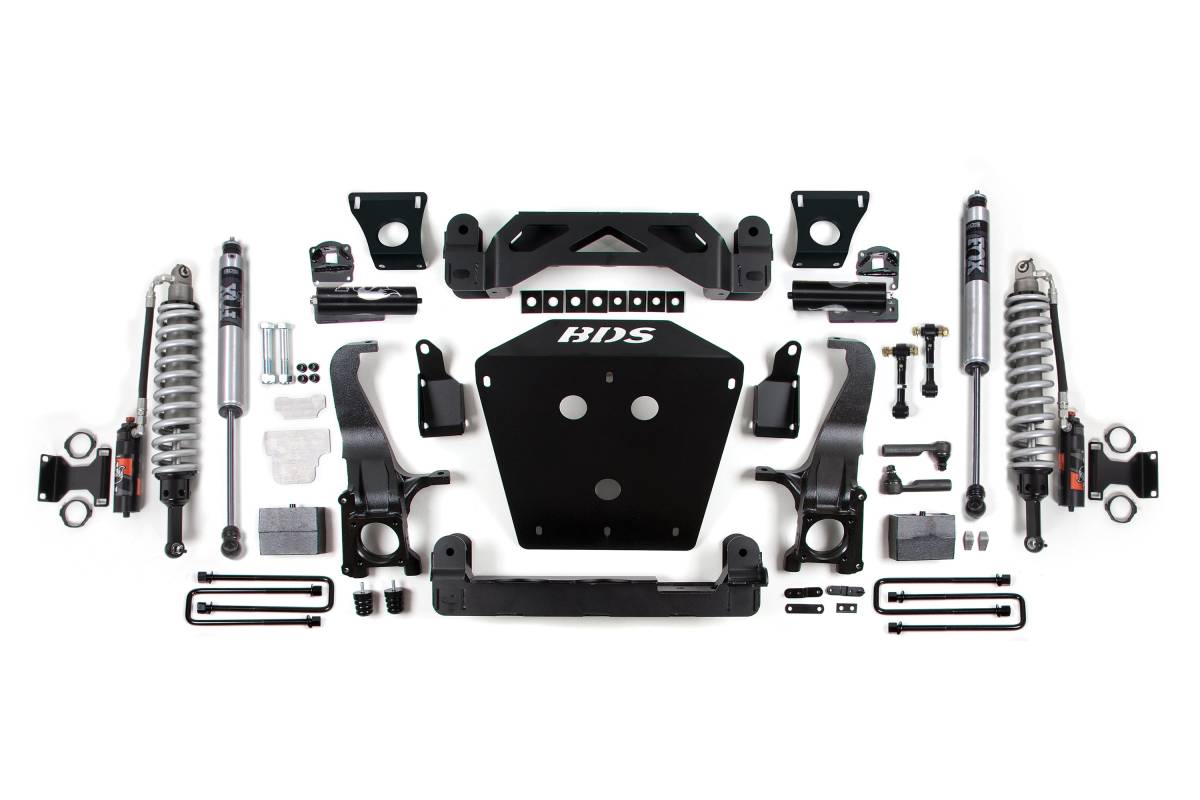

The BDS Suspension 7-inch Lift Kit for the 2007–2015 Toyota Tundra (2WD/4WD) is engineered to deliver enhanced off-road capability and ground clearance without sacrificing on-road drivability. The kit combines BDS heavy-duty high-clearance crossmembers, CNC-machined steering knuckles, a front skid plate system, FOX 2.5 Performance Elite coil-overs, and a choice of rear shock configuration. The precision-engineered steering knuckles restore factory steering geometry at the new ride height, maintaining proper ESC system compatibility. The 1/4-inch thick laser-cut crossmembers are paired with a bolt-together front skid plate system that forms a rigid subframe while adding undercarriage protection. Multipoint differential relocation brackets secure the front axle and improve CV angles at the increased lift height.

Features

• FOX 2.5 Performance Elite series adjustable coil-overs for improved ride quality, performance, and capability
• High-clearance crossmember design maximizes ground clearance using 1/4-inch thick laser-cut steel
• HD skid plate system provides improved off-road undercarriage protection
• CNC-machined ductile cast iron steering knuckles maintain factory steering geometry and ESC system compliance
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• FOX Performance Series IFP gas rear shocks (variant-dependent) for improved ride and off-road performance
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 7 inches
• Vehicle Fitment: 2007–2015 Toyota Tundra, 2WD/4WD
• Crossmember Material: 1/4-inch thick laser-cut steel
• Steering Knuckle Material: High-strength CNC-machined ductile cast iron
• Front Coil-Over: FOX 2.5 Performance Elite — 2.5-inch impact-extruded aluminum body, 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir, DSC (Dual Speed Compression Adjuster), fully serviceable
• Rear Shock Option A: FOX 2.5 Performance Elite — external reservoir, DSC adjuster, fully serviceable, 1-year Manufacturer's Warranty
• Rear Shock Option B: FOX 2.0 Performance Series — 2-inch impact-extruded aluminum body, IFP monotube design, 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, application-specific valving, clear anodized finish, 1-year Manufacturer's Warranty

Installation

• Estimated Installation Time: 8 hours
• Installation Difficulty: Moderate
• Special Tools Required: Reciprocating Saw, Welding Equipment

Important Notes

• Requires front bracket modification and welding.
• No strut disassembly required.
• Stock 18-inch wheels cannot be installed.
• Factory 20-inch wheels with more than 6.25 inches of backspacing cannot be installed.
• Models with a two-piece rear driveline would require rear driveshaft modification.
• Models equipped with 6-piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
• Will NOT work on TRD Pro (Bilstein and FOX Piggyback Strut) models.
