Overview

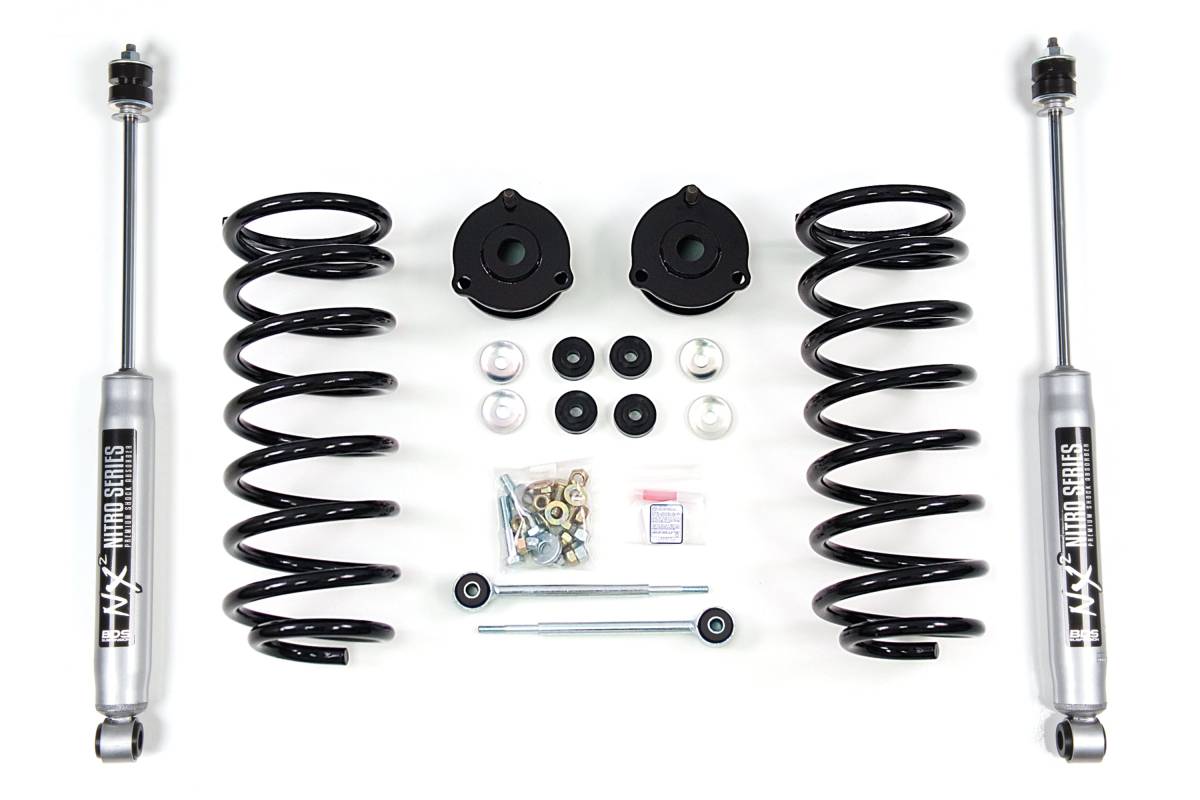

This 3-inch lift kit from BDS Suspension is designed to raise and improve the stance, performance, and capability of the 2010–2022 Toyota 4Runner and 2007–2014 Toyota FJ Cruiser (4WD). Engineered specifically for these platforms, the kit provides additional tire clearance for up to 32-inch tires without overextending the suspension or driveline angles at full suspension droop. Up front, top-mounted steel strut spacers deliver the lift, while the rear uses custom-tuned BDS Pro-Ride coil springs and rear sway bar links. NX2 Series Nitro shocks are included to retain ride quality and allow full articulation of the rear suspension.
Features
- Easy, 100% bolt-on installation
- Maintains factory-like ride quality
- Rear high-strength progressive rate coil springs for a great ride on any terrain
- NX2 Nitro shocks with vehicle-specific valving for better control
Specifications
- Front Lift Method: Strut Spacer
- Front Lift Height: 3"
- Rear Lift Method: Coil Spring
- Rear Lift Height: 2"
- Overall Lift Height Range: 2"–3.5"
- Shocks Included: Yes
Installation
- Estimated Installation Time: 5 hours
- Installation Difficulty: Moderately Easy
Important Notes
- Strut compressor required for installation.
- Other equivalent tire/wheel size options should work — may require minor trimming for some combinations.
- Will not work on TRD Pro models equipped with the X-REAS shock system.
- Will not work with the factory KDSS sway bar system.
