BDS FOX 2.5 Performance Elite Coilover Kit | 0-1.5" Lift | Chevy/GMC 1500 Trail Boss / AT4 (2019-2026) 4WD

Overview

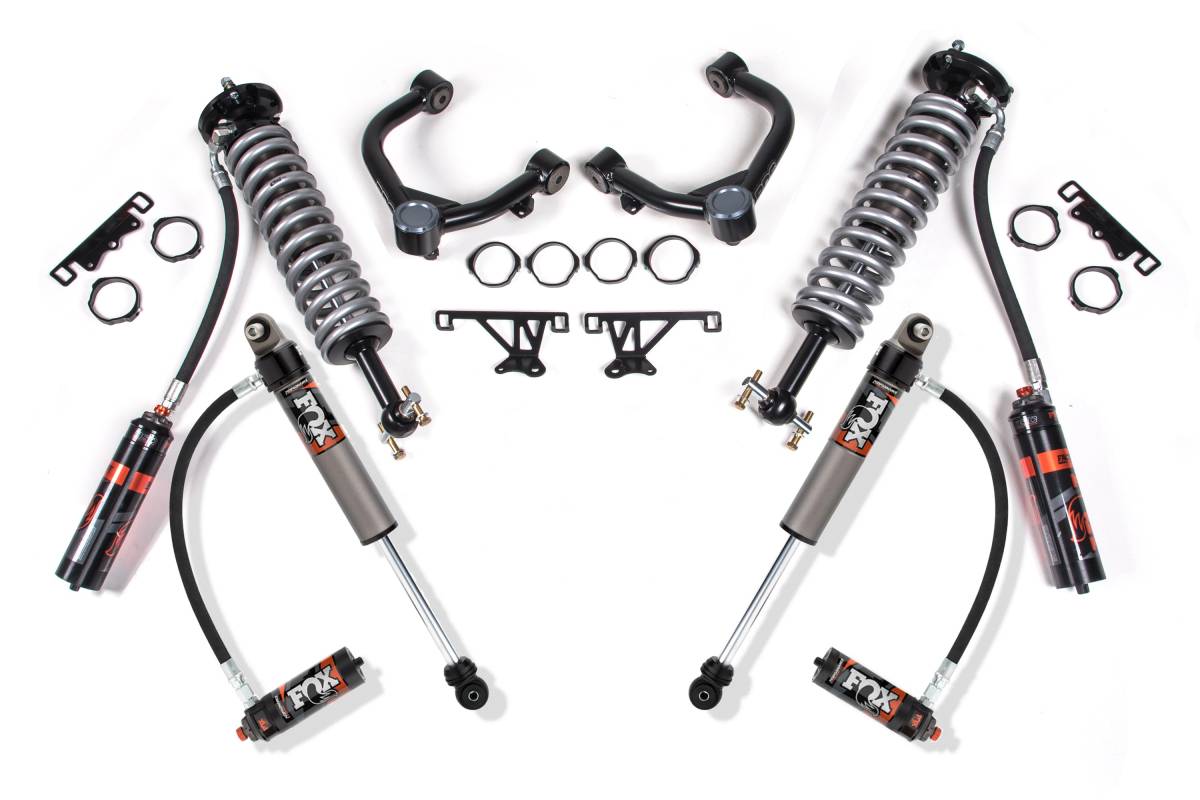

Maximize the performance of your Chevy Trail Boss or GMC AT4 1500 truck with the FOX Performance Elite 2.5 coilover kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up with clearance for up to 33" tires. Up front, the kit features FOX 2.5 Performance Elite Series remote reservoir coilover shocks and heavy-duty tubular upper control arms for increased strength. In the rear, a complementary set of FOX 2.0 Performance shocks delivers a smooth ride.

Features

• FOX 2.5 Performance Elite coilovers offer improved damper performance over stock
• DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 Performance Series IFP rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100% bolt-on installation

Specifications

• Lift Height: 0–1.5"
• Front Lift Method: Coilover
• Front Lift Height: 0"
• Rear Lift Method: Stock
• Rear Lift Height: 0"
• Shocks Included: Yes
• FOX 2.5 Performance Elite front coilovers — 2.5" diameter, bolt-on, remote reservoir with black anodized aluminum reservoir
• DSC adjuster: 10 separate low-speed compression levels, 12 high-speed compression levels
• Upper control arms: 1.5" OD x .120-wall tubular construction with indexed ball joint cup
• UCA frame-end bushings: durometer-specific rubber for maintenance-free operation
• UCA ball joints: greaseable for smooth, quiet operation and superior durability
• UCA finish: durable black powder coat with billet aluminum dust cap

Installation

• Estimated Installation Time: 3–4 hours
• Installation Difficulty: Moderate

Important Notes

• Requires a maximum of 5.5" BS wheel for tire clearance to the upper ball joint.
• All aftermarket wheels should be test fitted prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
• Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
• 2.7L Turbo models use the Diesel kit for proper skid plate fitment.
