This configuration pairs the FOX 2.5 Performance Elite front coil-overs with FOX 2.5 Performance Elite rear shocks. The rear shocks share the same 2.5-inch impact extruded aluminum body, massive 7/8-inch hard chrome plated alloy steel shaft, external reservoir design, and DSC Dual Speed Compression Adjuster as the front units, delivering consistent front-to-rear performance tuning and full serviceability.
Overview

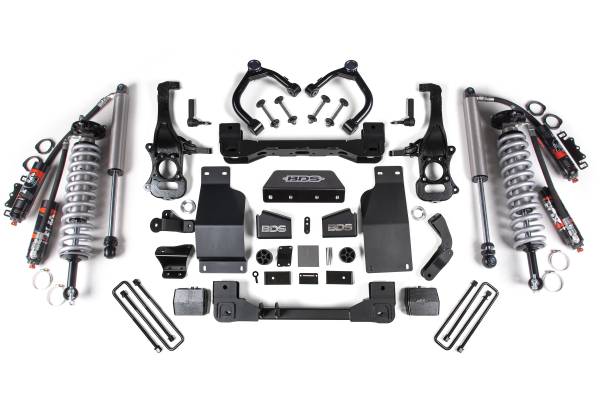

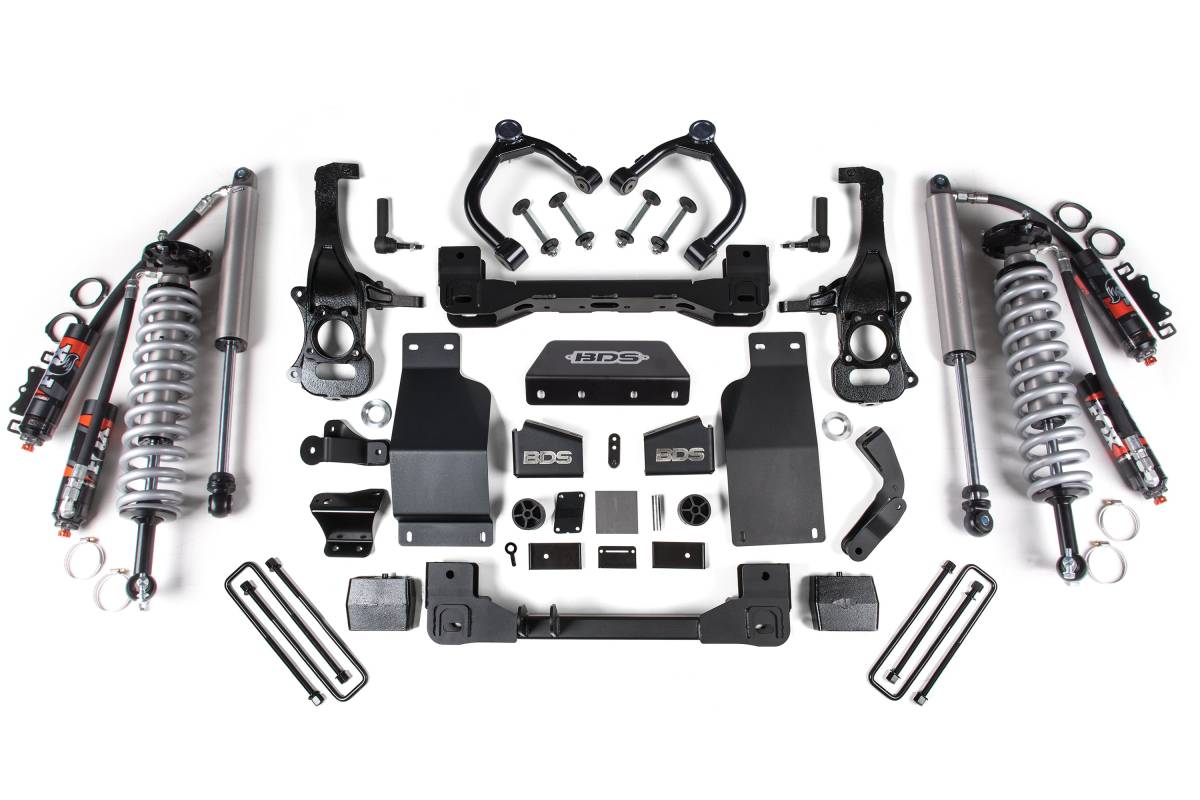

The BDS 6-inch lift kit for the 2019–2026 Chevy Silverado and GMC Sierra 1500 4WD (Diesel) is engineered to improve stance, performance, and off-road capability while providing clearance for up to 35-inch tires. The kit centers on FOX 2.5 Performance Elite coil-over shocks up front, designed specifically as bolt-on units for increased travel and improved terrain absorption without sacrificing on-road comfort. A high-clearance crossmember design, CNC-machined ductile iron steering knuckles, and a comprehensive hardware package address suspension and steering geometry at the new ride height. In the rear, a heavy-duty lift block replaces the factory block to lift and level the stance while retaining ride quality and load capacity, complemented by new U-bolts and brake line brackets.
Features
- FOX 2.5 Performance Elite coil-overs with DSC (Dual Speed Compression) Adjuster for improved ride quality, performance, and capability
- High-clearance crossmember design maximizes ground clearance
- Robust CNC-machined ductile cast iron steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms provide durability and serviceability
- HD skid plate system for improved off-road protection
- Multipoint differential relocation brackets secure the front axle and improve CV angles
- Heavy-duty rear lift block installs in place of the stock block, retaining ride quality and load capacity
- Replacement tie rod ends correct steering geometry at the new ride height
- Sway bar drops, bump stop extensions, brake line brackets, CV spacers, and supplied hardware included
- Factory Protection Plus drivetrain warranty included
Specifications
- Lift Height: 6 inches (actual coil-over ride height is approximately 6.5 inches)
- Tire Clearance: Up to 35 inches
- Front Shocks: FOX 2.5 Performance Elite coil-overs
- 2.5-inch impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir separates shock oil from high-pressure nitrogen
- DSC Dual Speed Compression Adjuster — 10 low-speed and 12 high-speed compression levels
- Black anodized aluminum reservoir for increased cooling efficiency
- Fully serviceable; 1-year Manufacturer's Warranty
- Front Crossmembers: 1/4-inch thick laser-cut high-clearance steel
- Steering Knuckles: CNC-machined ductile cast iron
- Rear: Heavy-duty lift block with new U-bolts and brake line brackets
Installation
- Estimated Time: 8 hours
- Difficulty: Difficult
- Tools Required: 36mm Socket, Cut Off Wheel or equivalent, Ball Joint Separation Tool, Reciprocating Saw, Welding Equipment
Important Notes
- Requires frame bracket modification.
- Factory 17–18-inch wheels cannot be reinstalled due to tie rod end interference; stock 20-inch wheels can be reinstalled.
- 17-inch wheels with 4.5-inch backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle and tie rod.
- All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in stock condition.
- Actual ride height on coil-over kits is closer to 6.5 inches of lift.
- If equipped with a mono-leaf rear spring, please use part #UBT4064.
- 2.7L Turbo models should use the Diesel kit for proper skid plate fitment.
- Will not fit models equipped with ARC.
