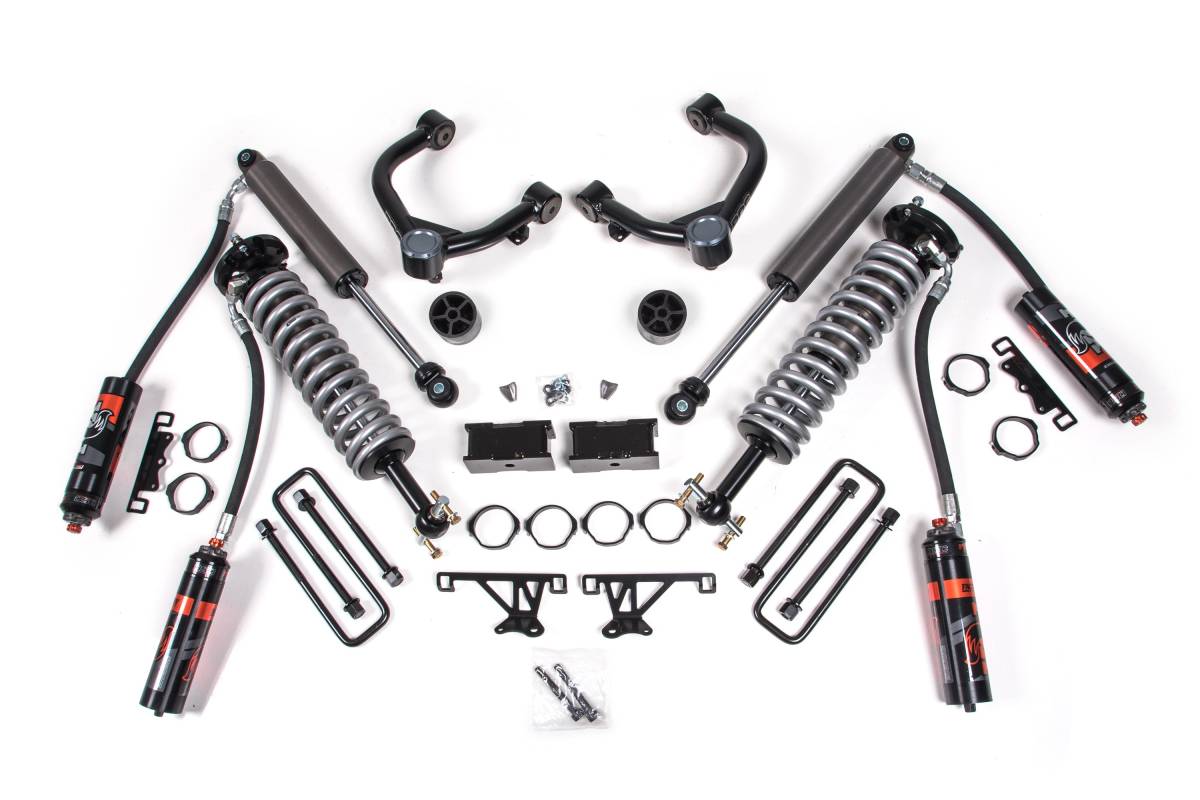

This configuration includes FOX 2.5 Performance Elite rear shocks, matching the front coilovers for a fully upgraded FOX 2.5 Performance Elite shock package front and rear.
Overview

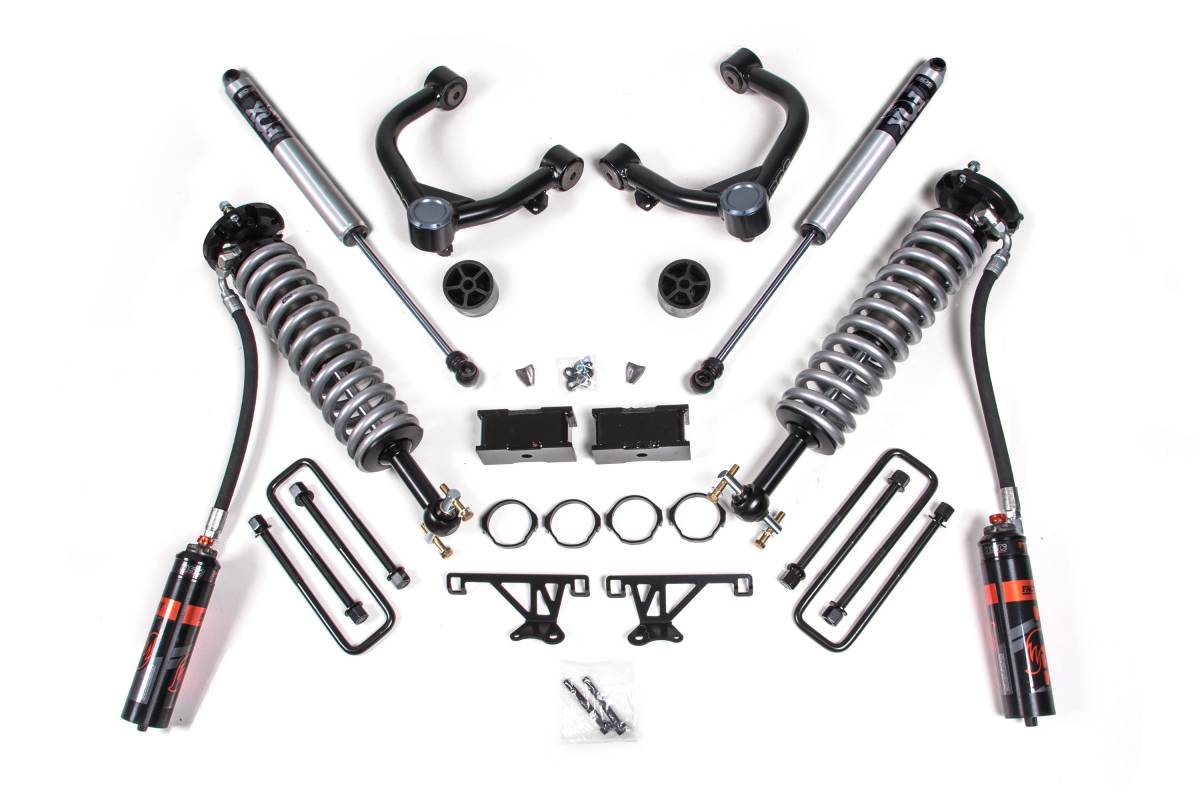

This 3.5-inch lift kit from BDS Suspension is designed for 2019–2024 Chevy Silverado and GMC Sierra 1500 4WD trucks. Up front, the kit features FOX 2.5 Performance Elite Series remote-reservoir coilover shocks paired with heavy-duty tubular upper control arms. The rear of the kit utilizes fabricated steel lift blocks, longer u-bolts, and a complementary set of FOX shocks. When complete, the kit provides clearance for up to 35-inch tires on Chevy models and up to 33-inch tires on GMC models.
Features
- FOX 2.5 Performance Elite coilovers offer improved damper performance over stock
- DSC Adjuster allows easy high-speed and low-speed compression tuning — 10 separate low-speed and 12 high-speed compression levels — for optimal performance in any terrain
- Remote reservoir provides additional fluid capacity and increased cooling efficiency via black anodized aluminum reservoir
- Heavy-duty upper control arms (UCAs) built for increased strength and additional suspension travel
- UCAs use 1.5" OD x .120-wall tubular construction with indexed ball joint cup to correct ball joint positioning and allow camber adjustment
- Durometer-specific rubber bushings at frame mounting ends for maintenance-free operation
- Greaseable ball joints at outer UCA ends for smooth, quiet operation and superior durability
- UCAs finished in durable black powder coat with billet aluminum dust cap
- Rear lift achieved via fabricated steel lift blocks and longer u-bolts
- Factory Protection Plus drivetrain warranty included
- 100% bolt-on installation
Specifications
- Lift Height: 3.5 inches
- Front Shocks: FOX 2.5 Performance Elite Series remote-reservoir coilovers
- UCA Tubing: 1.5" OD x .120-wall tubular steel
- Rear Lift Method: Fabricated steel lift blocks and longer u-bolts
- Tire Clearance: Up to 35" tires (Chevy) / up to 33" tires (GMC)
- Max Wheel Backspacing: 5.5"
Installation
- Estimated Time: 4–5 hours
- Difficulty: Moderate
- Tools Required: Cut Off Wheel or equivalent, Ball Joint Separation Tool, Welding Equipment
Important Notes
- 5.5" max wheel backspacing can be used
- Will fit Trail Boss/AT4 models; however, will net 1.5" of lift over factory ride height
- All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
- Will NOT fit models with a single leaf spring (monoleaf) rear suspension
- Will not fit models equipped with ARC
- 2.7L Turbo models use Diesel kit for proper skid plate fitment
