BDS 6 Inch Lift Kit | Chevy/GMC Suburban, Tahoe, Yukon/XL 1500 (2015-2019) 4WD Magneride | Aluminum / Stamped Steel Control Arms

Select this configuration if your 2015–2019 Chevy/GMC SUV is equipped with Aluminum or Stamped Steel control arms. Verify your factory control arm type before ordering by referencing the help images provided.

Overview

This BDS Suspension 6-inch lift kit is designed for 2015–2019 Chevy Suburban, Tahoe, and GMC Yukon/Yukon XL 1500 4WD vehicles equipped with Magneride electronic damping. The kit provides clearance for up to 35-inch tires while correcting suspension and steering geometry for on-road handling and off-road capability.

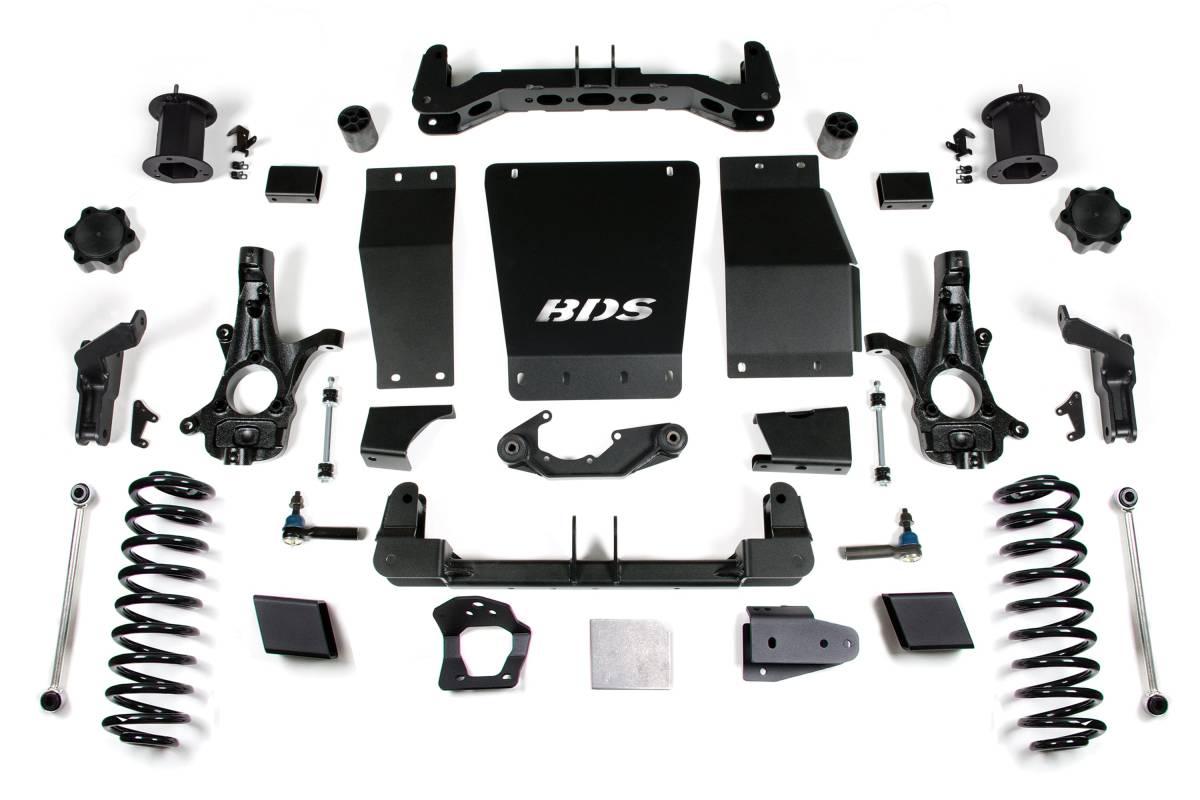

Up front, the kit uses a top-mounted strut spacer, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates. CNC-machined ductile iron steering knuckles correct steering geometry at the new ride height. Additional front components include sway bar drops, bump stop extensions, brake line brackets, and CV spacers. In the rear, BDS Pro-Ride coil springs, anti-sway bar links, a track bar relocation system, and adjustable upper control arms are included. Rear sensor relocation brackets and shock extensions retain the factory Magneride electronic dampers.

Features

• Includes shock relocation brackets to maintain factory Magneride shocks
• High-clearance crossmember design maximizes ground clearance
• Robust CNC-machined ductile cast iron steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system for improved off-road protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 6 inches
• Compatible with: 2015–2019 Chevy Suburban, Tahoe, GMC Yukon/Yukon XL 1500 — 4WD, Magneride equipped only
• Tire clearance: Up to 35 inches
• Front crossmembers: 1/4-inch thick laser-cut steel, high-clearance design
• Steering knuckles: CNC-machined ductile cast iron
• Rear springs: BDS Pro-Ride coil springs
• Rear components: Track bar relocation system, adjustable upper control arms, anti-sway bar links, sensor relocation brackets, shock extensions

Installation

• Estimated Time: 8 hours
• Difficulty: Difficult
• Tools Required: 36mm Socket, Cut-Off Wheel or equivalent, Reciprocating Saw, Strut Compressor, Welding Equipment

Important Notes

• Frame bracket modification and welding are required.
• 20-inch wheels with 5-inch to 5-3/4-inch backspacing are recommended to reduce trimming.
• AWD models may require front driveline modification.
• Factory 17-inch and 18-inch wheels cannot be reinstalled due to tie rod interference.
• Control Arm Compatibility: GM produced several knuckle/control arm configurations in 2015–2019 models. Cast Steel control arm equipped vehicles require the Cast Steel variant (BDS751H). Stamped Steel and Aluminum control arm equipped vehicles require the Aluminum / Stamped Steel variant (BDS752H). Verify your factory control arm type before ordering by referencing the help images available on the product page.
