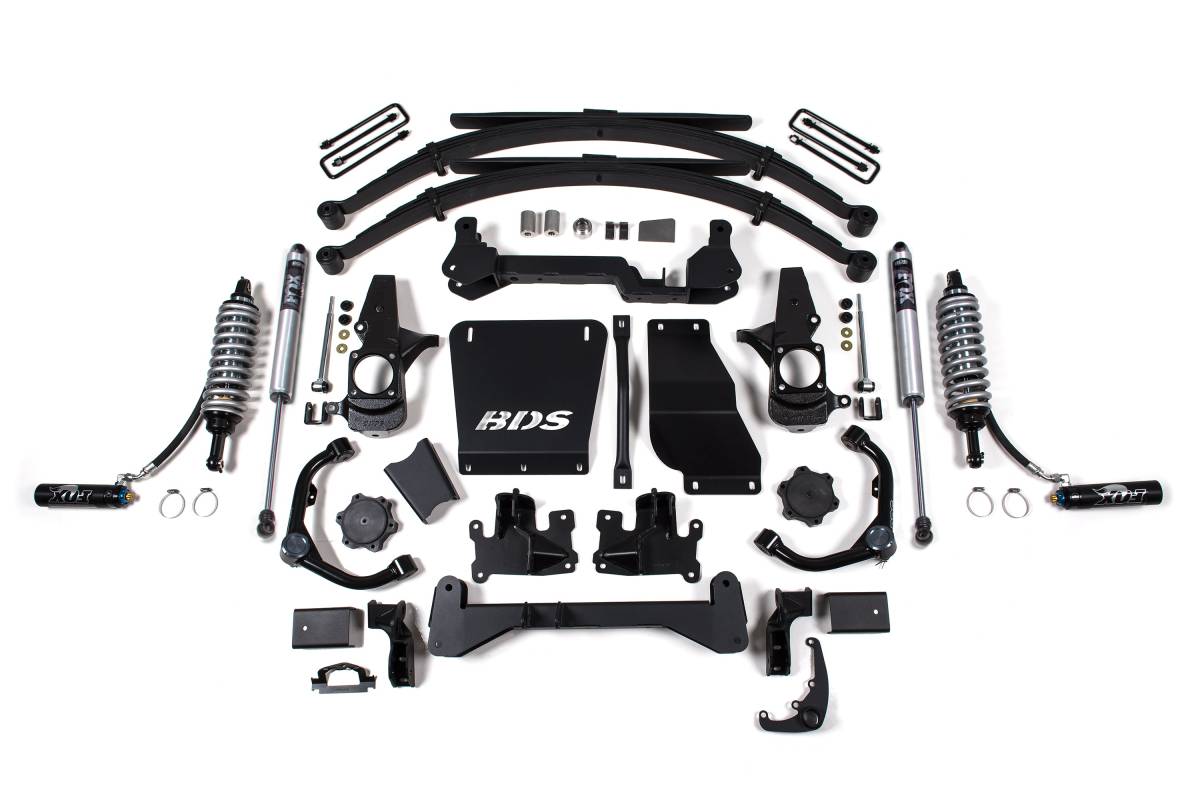

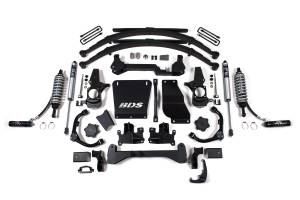

BDS 6.5 Inch Lift Kit w/ FOX 2.5 Coilover Conversion | Leaf Spring Rear | Chevy Silverado & GMC Sierra 2500HD/3500HD (2001-2010) Diesel

Configured with the Glide-Ride Leaf Springs rear lift option. Multi-leaf progressive design provides a smooth ride while eliminating axle wrap for a more controlled and stable feel. Reduces axle wrap, restores axle position, and maintains factory payload weight ratings.

Overview

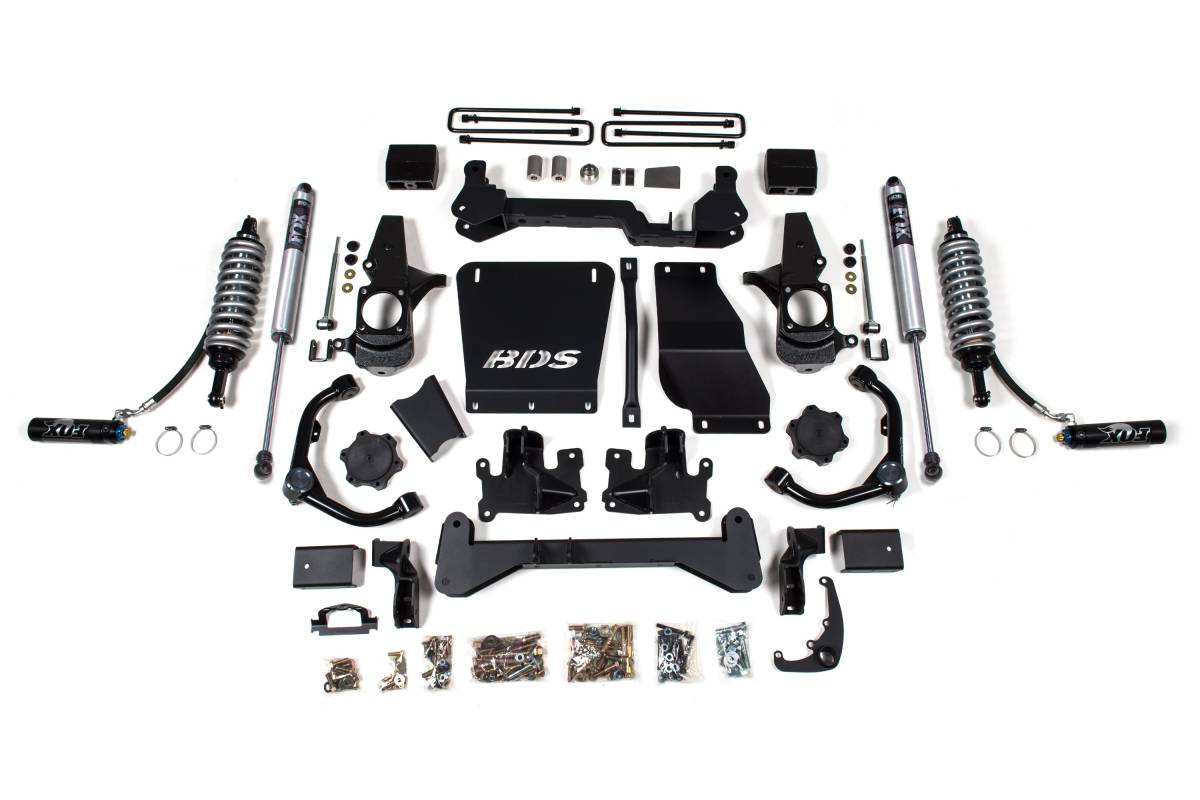

BDS Suspension's 6.5-inch suspension lift kit with FOX 2.5 Coilover conversion is engineered for the 2001–2010 Chevy Silverado and GMC Sierra 2500HD/3500HD diesel trucks. Designed to improve stance, performance, and capability, this kit provides clearance for up to 35-inch tires. Up front, the kit utilizes FOX 2.5 coilover shocks, heavy-duty tubular upper control arms, high-arched 1/4-inch-thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates. CNC-machined ductile iron steering knuckles correct steering geometry at the new ride height. Sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all required hardware are included for a comprehensive front suspension lift. In the rear, the kit is available with either a replacement lift block or complete Glide-Ride leaf spring option, paired with precision-tuned FOX 2.0 Performance Series shocks and new u-bolts.

Features

• FOX 2.5 coilovers offer improved damper performance over stock
• DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
• Performance UCAs increase strength and allow for more suspension travel
• High Clearance design with no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved off-road protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• FOX 2.5 coilovers include remote reservoir for additional fluid capacity and improved thermal management
• HD upper control arms use 1.5" OD x .120-wall tubular construction with indexed ball joint cup for additional down travel and camber adjustment
• Durometer-specific rubber bushings at frame mounting ends for maintenance-free operation
• Greaseable ball joints at outer UCA end for smooth, quiet operation and durability
• UCAs finished in durable black powder coat with billet aluminum dust cap
• 1/4-inch-thick laser-cut crossmembers maximise ground clearance
• Front skid plate system bolts together to create a rigid subframe

Specifications

• Lift Height: 6.5 inches
• Tire Clearance: Up to 35 inches
• Coilover Diameter: 2.5 inches (FOX 2.5 Performance Series with remote reservoir)
• Rear Shocks: FOX 2.0 Performance Series
• Crossmember Thickness: 1/4-inch steel, laser-cut
• UCA Tubing: 1.5" OD x .120-wall
• Steering Knuckles: CNC-machined ductile iron
• Recommended Wheel Backspacing: 5" to 5.75" (20" wheels)

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Required Tools: Cut Off Wheel or Equivalent, Grinder/Sanding Disc, Reciprocating Saw, Torsion Bar Unloading Tool, Welding Equipment

Important Notes

• Torsion bar tool required to load/unload the torsion bars
• Some welding required
• Requires frame bracket modification and differential mount modification
• Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4" to 8" of lift
• 20" wheels with 5" to 5.75" backspacing recommended to reduce trimming
• Not recommended for Suburban/Yukon models with AutoTrac Transfer Case
• Does NOT work with rear Autoride equipped SUVs
