BDS FOX 2.5 Coilover Conversion Upgrade Kit | 6.5 Inch Lift | 2011-2019 Chevy Silverado / GMC Sierra 2500HD 3500HD Diesel

Overview

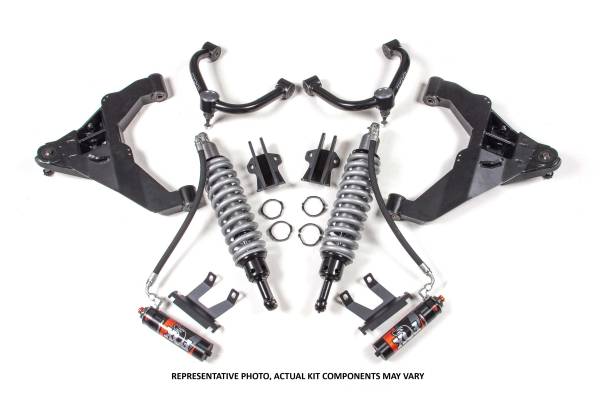

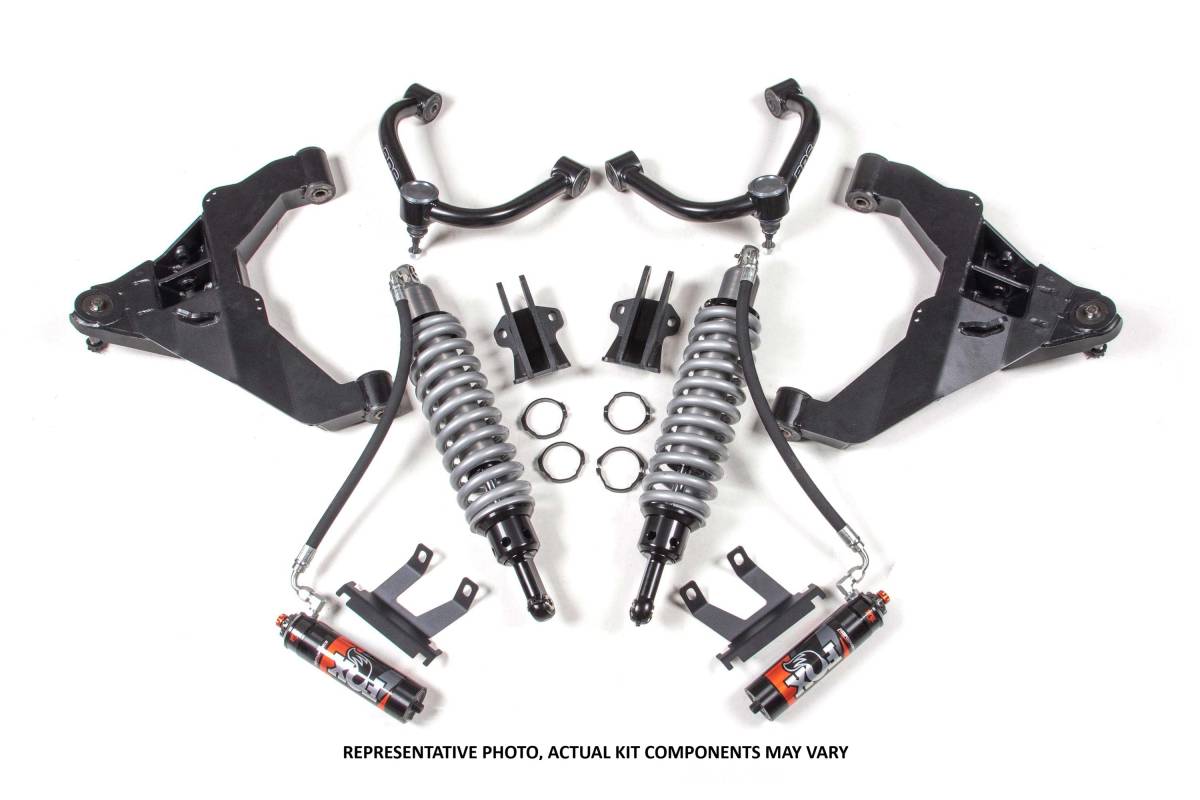

BDS offers complete coilover conversion upgrade kits for the Chevy Silverado and GMC Sierra 2500HD/3500HD, allowing you to convert your standard lifted suspension into coilovers. These kits include heavy-duty brackets and FOX 2.5 Performance Elite Coilovers, and are compatible with existing BDS 4.5-inch and 6.5-inch lift kits for seamless integration. A bolt-on bracket mounts the coilovers to the frame at the shock mount location, and a weld-in support gusset reinforces the upper mount. In addition to replacing the factory torsion bars, both the upper and lower control arms are upgraded for enhanced strength and travel to accommodate the new coilovers.

Features

• FOX 2.5 Performance Elite Coilovers with remote DSC (Dual Speed Compression) adjustment
• Heavy-duty tubular upper control arms (UCAs) to improve suspension travel
• Fully boxed and internally gusseted lower control arms (LCAs) built from high-strength steel
• Next-level performance for both on-road comfort and off-road capability
• Compatible with existing BDS 4.5-inch and 6.5-inch lift kits
• Easy installation — only minor welding required for the upper mount gusset
• Bolt-on bracket for coilover frame mounting at the stock shock mount location

Specifications

• Coilover diameter: 2.5 inches
• Remote reservoir for additional fluid capacity to maintain consistent damping under demanding conditions
• DSC adjustment: dual-speed compression knobs allow independent tuning of high-speed and low-speed compression damping
• Upper control arm construction: 1.5-inch OD x .120-wall tubular steel with indexed ball joint cup for corrected ball joint positioning, additional down travel, and camber adjustment
• Lower control arm construction: high-strength steel, fully boxed with internal gusseting
• Frame-end LCA bushings: durometer-specific rubber for maintenance-free operation
• Wheel-end LCA joint: greaseable ball joint for smooth, quiet operation and durability
• Finish: durable black powder coat with billet aluminum dust caps
• Lift height: 6.5 inches
• Vehicle fitment: 2011–2019 Chevy Silverado / GMC Sierra 2500HD / 3500HD Diesel

Installation

• Estimated installation time: 8 hours
• Difficulty: Difficult
• Note: Minor welding required for the upper mount support gusset
