BDS 4 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Chevy/GMC Suburban, Tahoe, Yukon/XL 1500 (2015-2019) 4WD | Aluminum / Stamped Steel Control Arms

This kit is configured for vehicles equipped with Aluminum or Stamped Steel factory control arms. Verify your factory control arm type before ordering by referencing the help images provided. Cast Steel and Aluminum/Stamped Steel control arm configurations require different knuckle kits and are not interchangeable.

Overview

This BDS 4-inch lift kit is designed for 2015–2019 Chevy Suburban, Tahoe, and GMC Yukon/Yukon XL 1500 4WD models. The kit improves stance, performance, and capability while providing clearance for up to 33-inch tires. It utilizes a high-clearance design to improve ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for proper on-road handling.

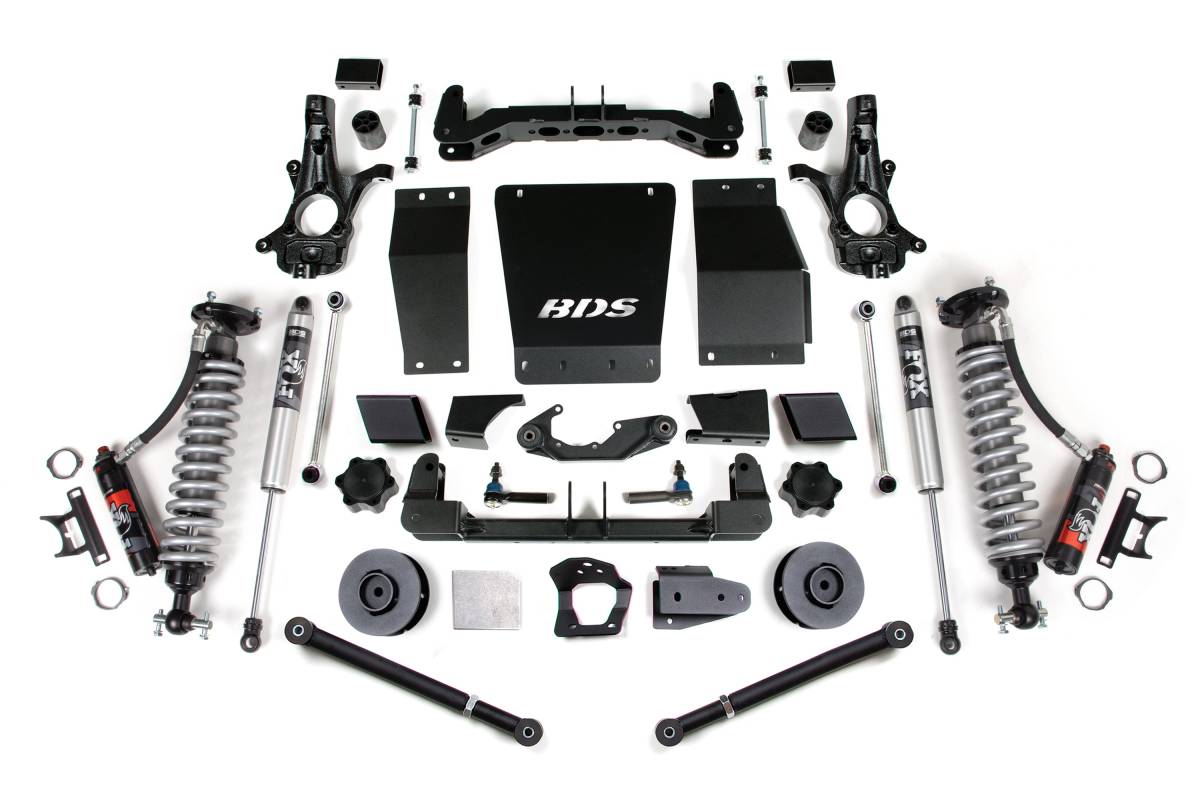

Up front, the kit includes full-length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates. Steering geometry is corrected at the new ride height using CNC-machined ductile iron steering knuckles. Sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all necessary hardware are also included. Rear lift is achieved via coil spring spacers to properly level the vehicle, paired with FOX 2.5 Performance Elite coil-over shocks.

Features

• FOX 2.5 Performance Elite coil-over shocks designed for increased travel and capability over rough terrain; DSC (Dual Speed Compression) adjuster provides precise tuning with a simple twist of one or both knobs
• High-clearance crossmember design maximizes ground clearance; laser-cut, 1/4-inch thick steel construction
• Robust CNC-machined ductile cast iron steering knuckles maintain ESC system compliance and correct steering geometry at lifted ride height
• Heavy-duty skid plate system bolts together to create a rigid subframe for improved off-road protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• FOX Performance Series IFP gas rear shocks for improved ride and off-road performance
• Factory Protection Plus drivetrain warranty included

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 33 inches
• Crossmember thickness: 1/4-inch laser-cut steel
• Steering knuckles: CNC-machined ductile cast iron
• Rear lift method: Coil spring spacers
• Shock type (front): FOX 2.5 Performance Elite coil-over with DSC adjuster
• Shock type (rear): FOX Performance Series IFP gas shocks
• Compatible vehicles: 2015–2019 Chevy Suburban, Tahoe; GMC Yukon, Yukon XL 1500 — 4WD

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Tools Required: Cut-off wheel or equivalent, reciprocating saw, strut compressor, welding equipment

Important Notes

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014–2017 model trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images when customizing your kit. Requires frame bracket modification. 20" wheels with 5" to 5-3/4" backspacing are recommended to reduce trimming. AWD models may require front driveline modification. Factory 17" and 18" wheels cannot be reinstalled due to tie rod interference. Will not work with auto-ride or Magna-ride equipped vehicles.
