Rear lift uses a 3-inch block kit (with overload), resulting in a slightly tail-low stance, with overload spring support retained. Paired with FOX 2.5 Performance Elite rear shocks featuring a 2.5-inch aluminum body, massive 7/8-inch hard chrome shaft, external reservoir, DSC dual-speed compression adjuster, and full serviceability.
Overview

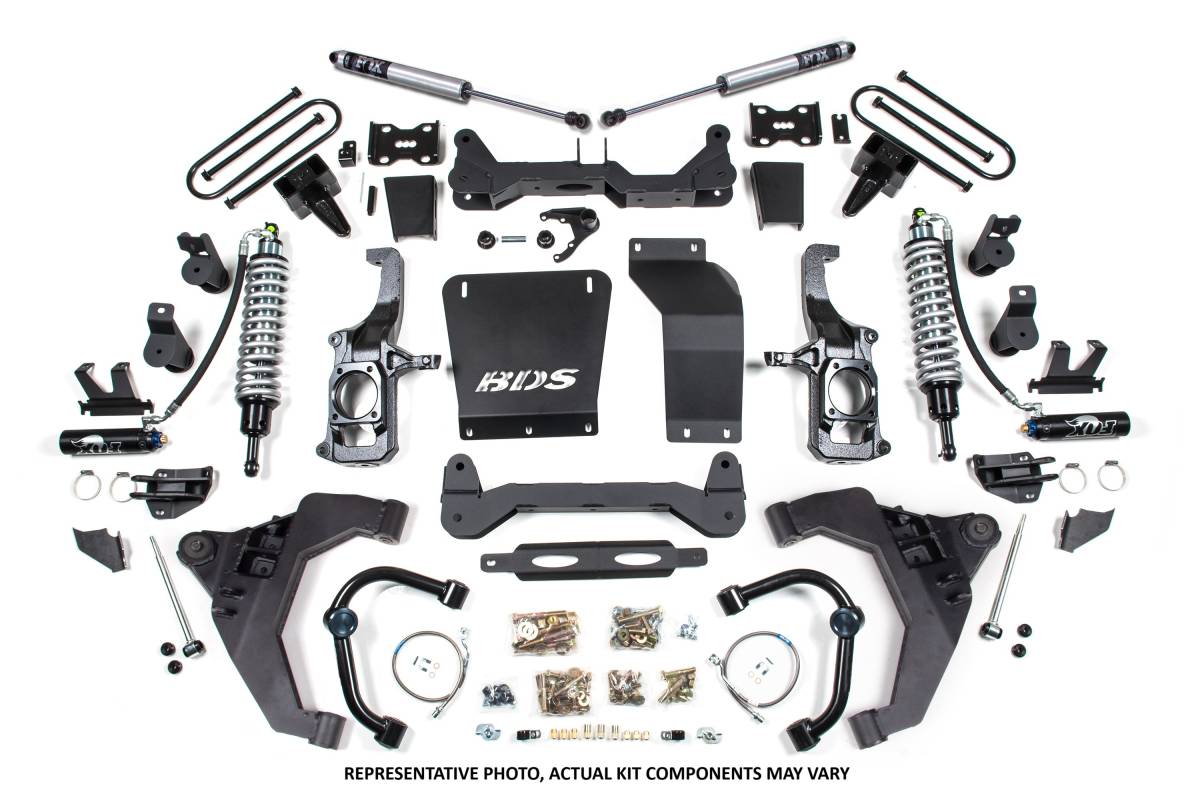

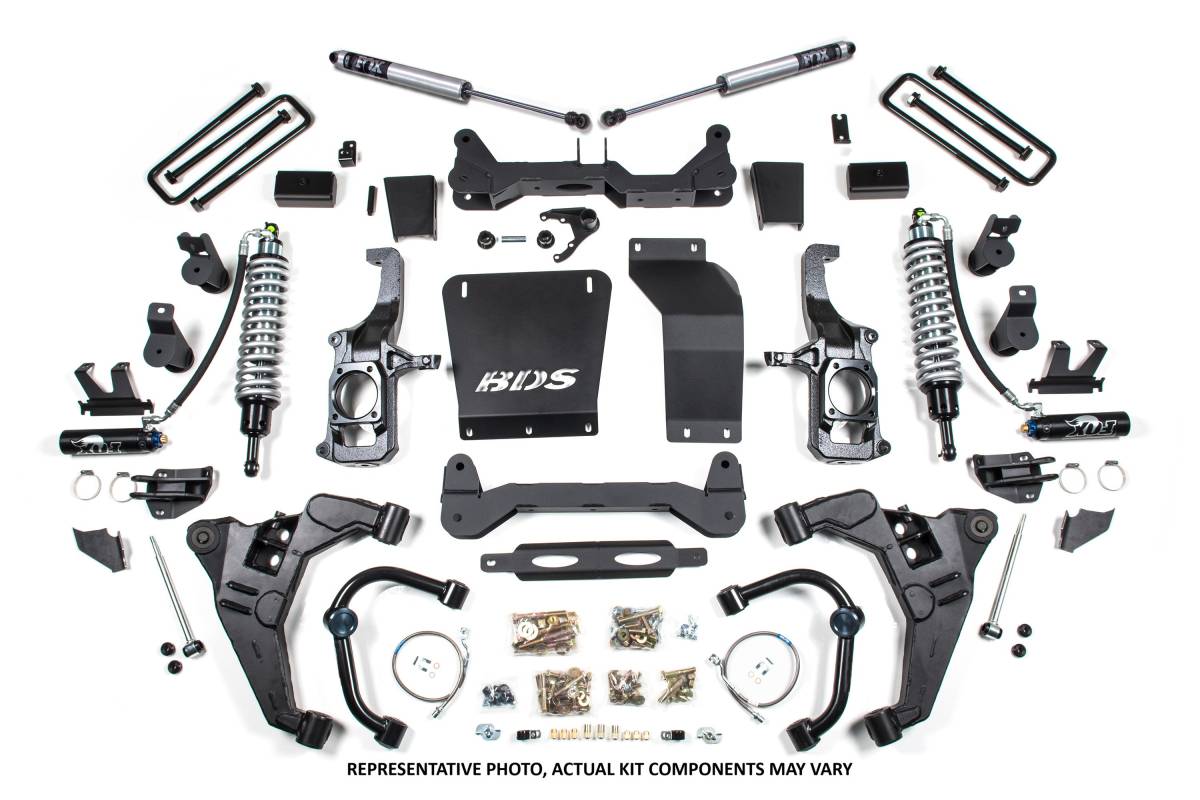

This BDS Suspension 6.5-inch suspension lift kit with FOX 2.5 Performance Elite coilover conversion is engineered for 2011–2019 Chevy Silverado and GMC Sierra 2500HD/3500HD diesel trucks. The kit converts the factory torsion bar front suspension to a coilover setup, providing increased travel, improved suspension geometry, and clearance for up to 37-inch tires. Up front, FOX 2.5 Performance Elite coilovers are paired with heavy-duty fabricated upper control arms and fully boxed lower control arms, along with multipiece differential relocation brackets to maintain correct CV angles and sway bar links. In the rear, precision-machined lift blocks replace the factory block, retaining ride quality and load capacity, along with a U-bolt flip kit (on 5-inch block configurations) for maximum clearance and available rear shock upgrades.
Features
- Converts factory torsion bar front suspension to a coilover system for improved ride comfort and performance
- FOX 2.5 Performance Elite series coilovers with DSC (Dual Speed Compression) adjuster for tunable high-speed and low-speed compression damping
- BDS fabricated upper control arms constructed from 1.5" OD x .120-wall tubing, fully TIG welded, with indexed ball joint cup for corrected ball joint positioning, additional down travel, and camber adjustment
- Fully boxed and internally gusseted lower control arms built from high-strength steel
- Durometer-specific rubber bushings at frame mounting ends for maintenance-free operation
- Greaseable ball joints at outer ends for smooth, quiet operation and durability
- Control arms finished in durable black powder coat with billet aluminum dust caps
- Multipiece differential relocation brackets to maintain correct CV angles
- Rear lift blocks replace factory blocks; retain ride quality and load capacity
- U-bolt flip kit included with 5-inch block configurations for maximum clearance
- Optional FOX 2.0 Performance Series or FOX 2.5 Performance Elite rear shocks
- Factory Protection Plus drivetrain warranty included
FOX 2.5 Performance Elite Coilovers
- 2.5-inch impact-extruded aluminum body
- Massive 7/8-inch hard chrome plated, heat-treated alloy steel shaft
- External reservoir design separates shock oil from high-pressure nitrogen for additional fluid capacity
- DSC — Dual Speed Compression Adjuster standard for independent high-speed and low-speed compression tuning
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
FOX 2.0 Performance Series Rear Shocks (where selected)
- 2-inch impact-extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Large 5/8-inch hard chrome plated, heat-treated alloy steel shaft
- Race-developed high-flow piston design with application-specific valving
- Long-lasting clear anodized finish
- 1-year Manufacturer's Warranty
Installation
- Estimated Installation Time: 11 hours
- Difficulty: Difficult
- Note: Requires minor welding
Important Notes
- Factory 17", 18", and 20" wheels cannot be reinstalled. See instructions for detailed wheel/tire fitment notes.
- Requires minor welding.
- Coilovers are preset for diesel engine models only. Use on gas engine models is not recommended, as the coilovers provide too much lift and available preload adjustment is typically insufficient to achieve the desired ride height.
- Dually models will require aftermarket 20" wheels with a maximum tire size of 285/60/20.
