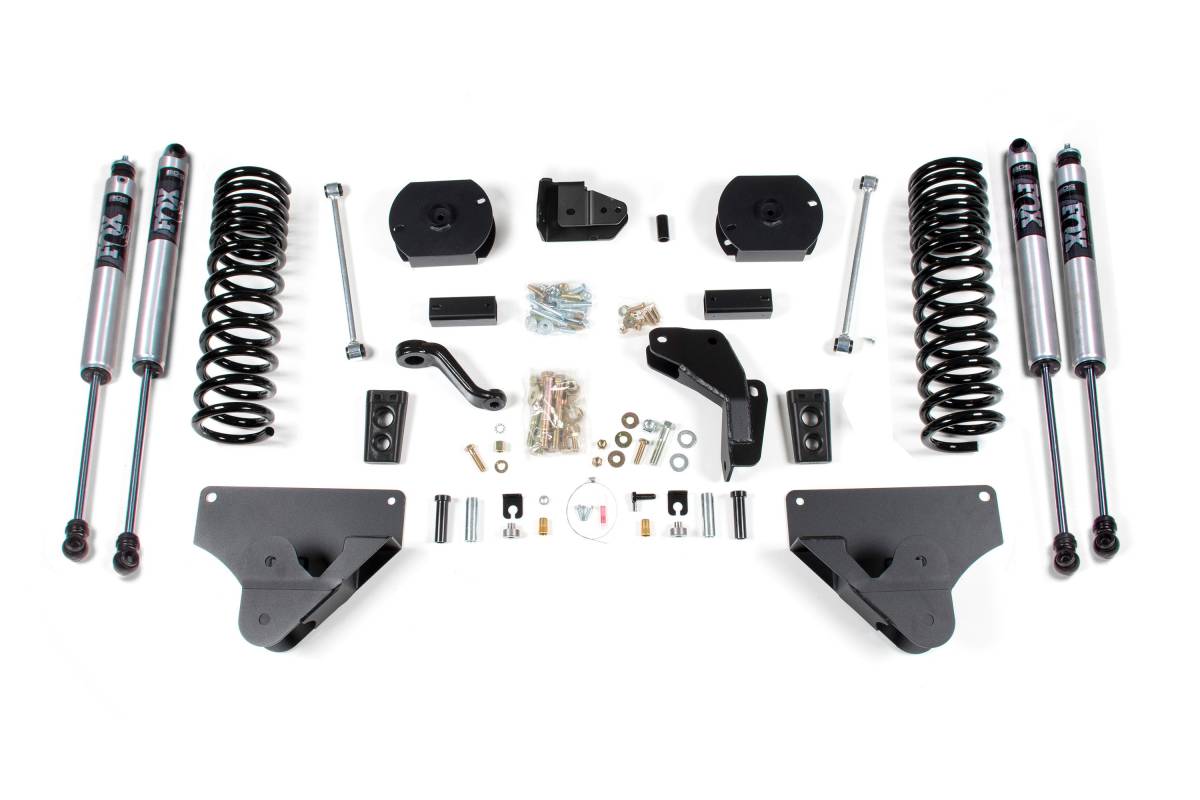

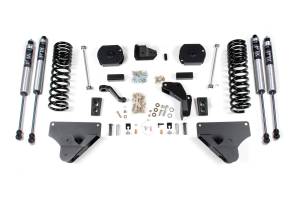

BDS 4 Inch Lift Kit | Ram 2500 Diesel 4WD (2014-2018) | Rear Coil Spacers | FOX 2.0 Performance Series Shocks

Configured with rear coil spacers and FOX 2.0 Performance Series shocks. The FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

This 4-inch lift kit from BDS Suspension is designed for 2014–2018 RAM 2500 diesel-powered 4WD trucks. The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, radius arm drop brackets, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, and brake line brackets. In the rear, the kit utilizes progressive rate Pro-Ride coil springs (or coil spacers, depending on configuration), a track bar relocation bracket, bump stop extensions, sway bar links, and matching shocks. Pro-Ride coil springs are full-length, diesel-specific, and manufactured from high tensile steel as direct OE replacements engineered with properly sized wire diameter for maximum reliability without premature coil bind. A forged drop pitman arm minimizes steering angle, and a heavy duty track bar drop bracket keeps steering geometry in phase through suspension travel while recentering the front axle.

Features

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance

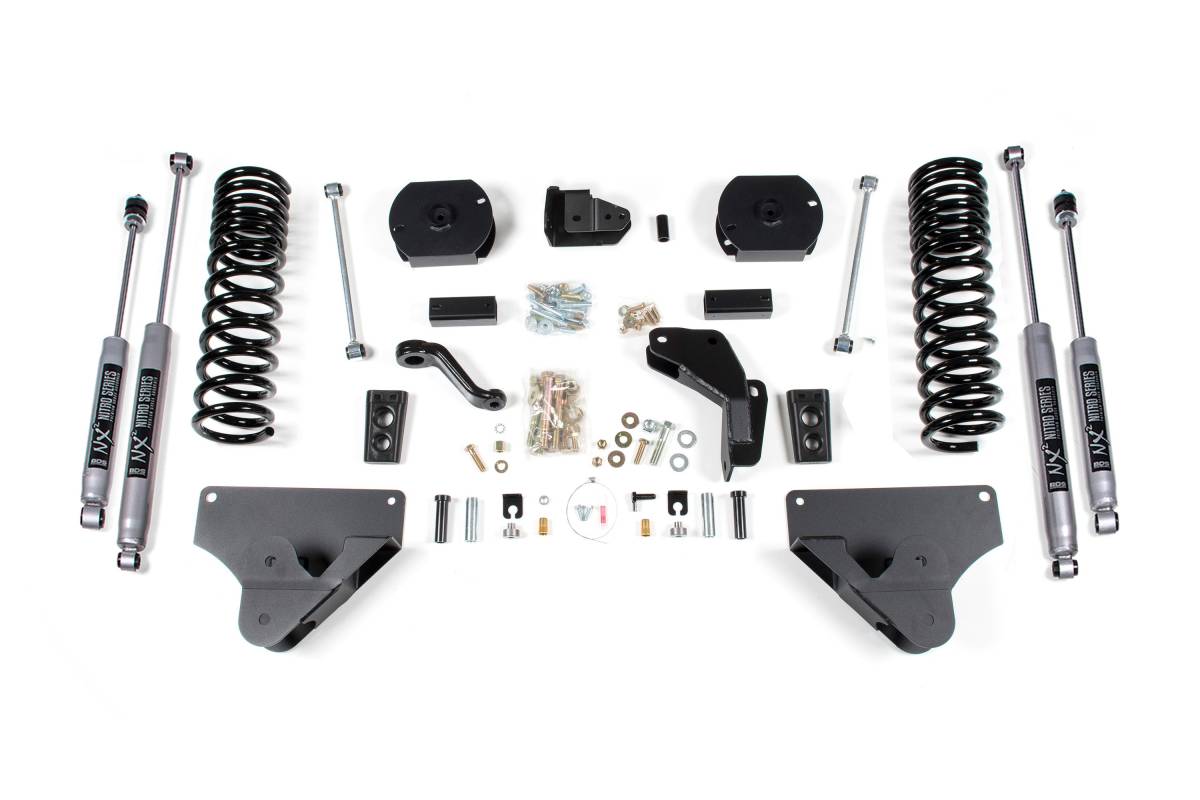

• NX2 Nitro Series or FOX 2.0 Performance Series shocks available to improve ride and off-road performance
• Maintains factory ride quality
• Heavy-duty steel construction with powdercoat finish for long-lasting durability
• Full replacement rear coil springs (on applicable configurations) are progressive rate for a great ride loaded or unloaded
• Built to handle heavy loads without sagging
• Polyester-based powder coat applied for flexibility and durability
• Shot peened to increase tensile strength and maximum wheel travel without sacrificing spring life

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 35 inches
• Vehicle Fitment: 2014–2018 RAM 2500 Diesel 4WD
• Front Springs: Diesel-specific, progressive rate Pro-Ride coil springs; high tensile steel construction
• Rear Lift Options: Full replacement progressive rate Pro-Ride coil springs or coil spacers (varies by SKU)
• Shock Options: NX2 Nitro Series (nitrogen-charged twin-tube) or FOX 2.0 Performance Series (IFP monotube) — varies by SKU
• Steering Components: Forged drop pitman arm, heavy duty track bar drop bracket
• Finish: Powdercoat on structural components

Installation

• Estimated Time: 6–8 hours
• Difficulty: Moderate
• Tools Required: Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

Welding equipment is required for installation. Ensure all components are properly torqued and inspected before operating the vehicle. Verify compatibility with your specific vehicle configuration prior to purchase.
