BDS 3 Inch Lift Kit | FOX 2.5 Coilover Conversion | Dodge Ram 2500/3500 4WD (2003-2013) | 4 Inch Rear Axle

This variant is configured for Dodge Ram 2500/3500 trucks with a 4 inch rear axle tube diameter. Note: Some 4-inch axle models have dual overloads that will require #4063 U-bolts. Measure your rear axle tube before ordering to confirm fitment.

Overview

This 3-inch lift kit from BDS Suspension is designed for 2003–2013 Dodge RAM 2500 and 2003–2012 RAM 3500 4WD diesel trucks. It features a FOX 2.5 Coilover conversion and includes all components needed to improve stance, performance, and capability, with clearance for tires up to 35 inches. The kit uses proprietary FOX 2.5 coilover shocks for bolt-on performance with increased travel and the ability to handle rough terrain while maintaining on-road comfort. BDS-engineered fixed-length, greaseable, heavy-duty round tubular upper and lower control arms correctly position the axle and adjust for proper caster and pinion angles.

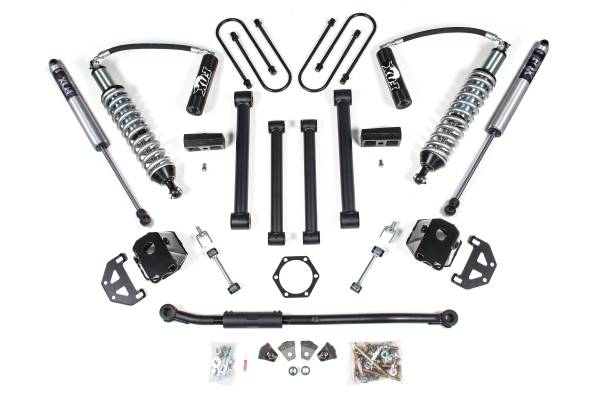

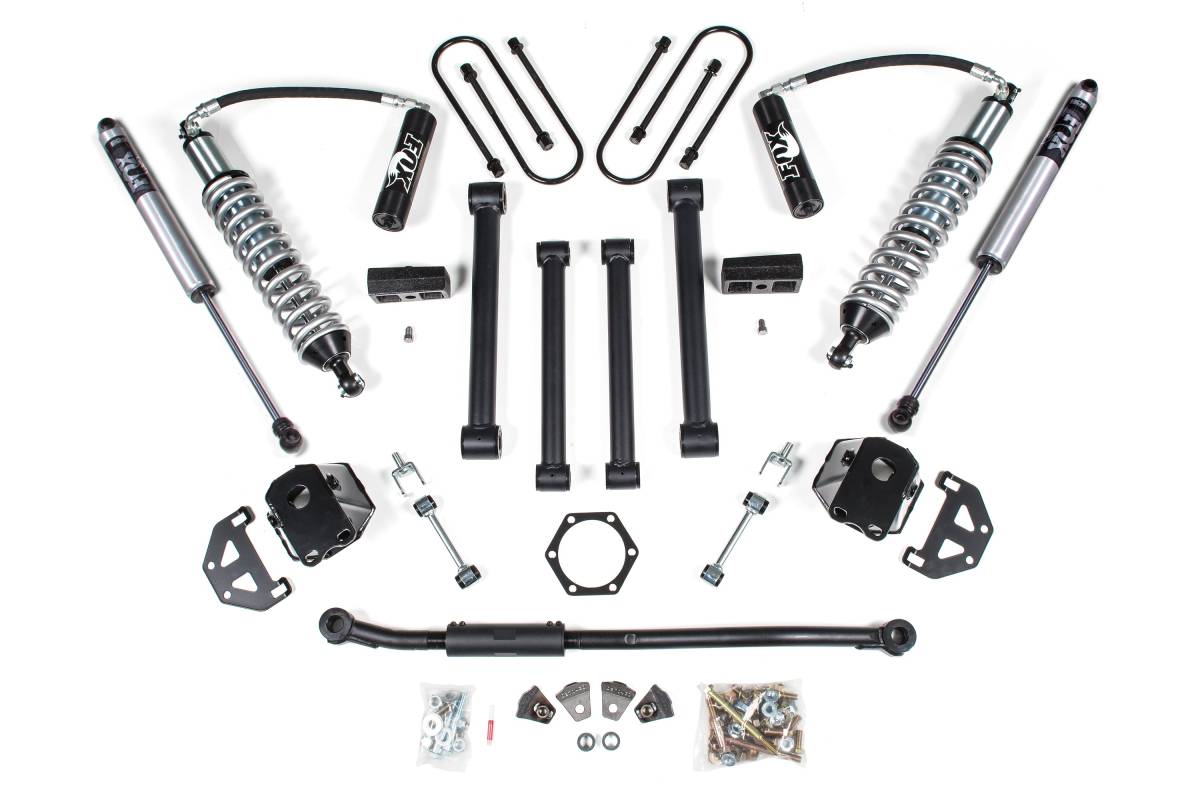

Up front, the kit includes FOX 2.5-inch coilover shocks, coilover mounting brackets, a heavy-duty adjustable track bar, fixed-length tubular upper and lower control arms, fixed-length sway bar links with stud eliminator, and precision-tuned nitrogen-charged rear shocks. In the rear, the kit uses heavy-duty cast-steel blocks, longer U-bolts, and FOX 2.0 Performance shocks.

Features

• FOX 2.5 Factory Race Series coilovers for improved ride quality, performance, and capability
• Heavy-duty tubular short arms for improved strength, handling, and caster control
• Front high-strength progressive rate coil springs for performance on any terrain
• Front HD adjustable track bar to re-center the front axle at lift height
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX Performance Series IFP gas shocks for improved ride and off-road performance

Specifications

• Lift Height: 3 inches
• Tire Clearance: Up to 35 inches
• FOX 2.5-inch diameter coilovers with remote reservoir for additional fluid capacity
• Track bar constructed from 1-3/8 inch solid steel stock; pre-assembled with bushings
• Fixed-length, greaseable, heavy-duty round tubular upper and lower control arms
• Rear: Heavy-duty cast-steel blocks and longer U-bolts

Installation

• Estimated Time: 6–8 hours
• Difficulty: Moderate
• Special Tools Required: Cut Off Wheel or equivalent

Important Notes

• Measure rear axle tube before ordering. Some 4-inch axle models have dual overloads that will require #4063 U-bolts.
• Rear lift options will not fit dually applications.
• Not recommended for Power Wagon models.
• Will not fit commercial chassis (Cab and Chassis) models.
