Configured with 3 Inch Rear Progressive-Rate Coil Springs for a more level stance, paired with FOX 2.5 Performance Elite rear shocks featuring a 2.5-inch impact extruded aluminum body, external reservoir, massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, and DSC Dual Speed Compression Adjuster for maximum off-road performance and full serviceability.
Overview

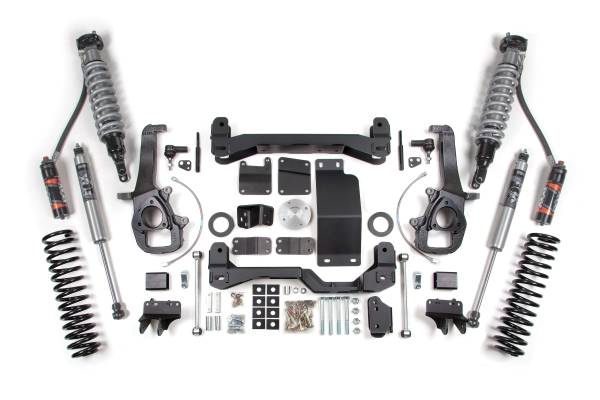

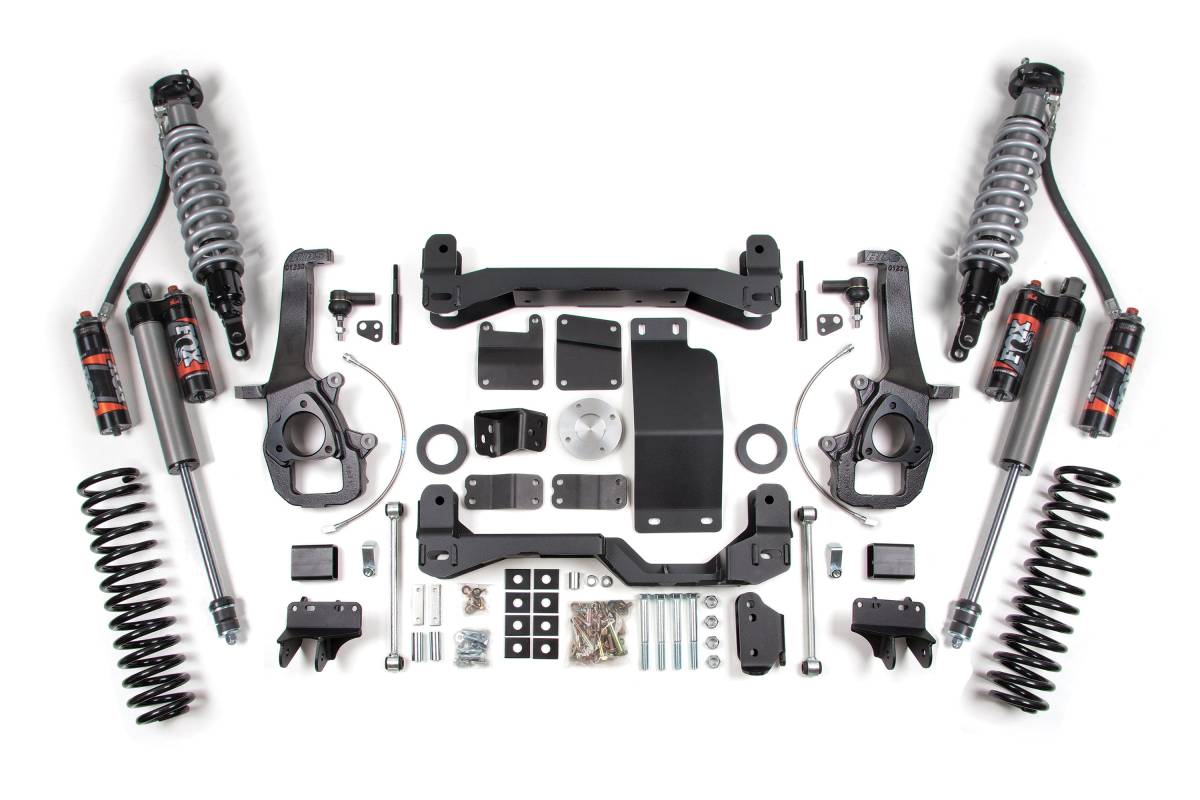

This BDS 6-inch Coilover Lift Kit is designed for performance, stance, and strength on the Ram 1500 (2013–2018) and Ram 1500 Classic (2019–2024) 4WD. The system clears up to 37-inch tires and replaces factory components with heavy-duty, high-clearance parts built to handle any terrain. Up front, FOX 2.5 Performance Elite Coilovers with DSC provide adjustable damping for on- and off-road control, supported by 1/4-inch steel high-clearance crossmembers, HD skid plates, and CNC-machined ductile iron steering knuckles that maintain proper geometry and ESC compatibility. Out back, progressive-rate Pro-Ride coil springs deliver comfort and control, while relocation brackets correct pinion and axle geometry. Rear shock and lift height options allow configuration to suit your preferred stance and performance level.
Features
- High-clearance crossmember design maximizes ground clearance
- CNC-machined ductile iron steering knuckles maintain proper geometry and ESC system compliance
- HD skid plate system for improved off-road protection
- 1/4-inch steel high-clearance crossmembers for added strength
- Multipoint differential relocation brackets secure the front axle and improve CV angles
- FOX 2.5 Performance Elite front coilovers with DSC (Dual Speed Compression Adjuster) for adjustable damping
- Progressive-rate rear coil springs for a blend of comfort and performance
- Choice of FOX 2.0 Performance Series or FOX 2.5 Performance Elite rear shocks
- Clears up to 37-inch tires
- Factory Protection Plus drivetrain warranty included
Specifications
- Front lift: 6 inches via FOX 2.5 Performance Elite Coilovers
- Rear lift options: 5 inches (tail-high stance) or 3 inches (more level stance)
- Crossmember material: 1/4-inch steel, high-clearance design
- Steering knuckles: CNC-machined ductile iron
- FOX 2.5 Performance Elite Shocks: 2.5-inch impact extruded aluminum body, 7/8-inch hard chrome plated heat-treated alloy steel shaft, external reservoir, DSC Dual Speed Compression Adjuster, fully serviceable, 1-year manufacturer's warranty
- FOX 2.0 Performance Series Shocks: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC-machined 6061-T6 aluminum mounting ends, race-developed high-flow piston, application-specific valving, clear anodized finish, 1-year manufacturer's warranty
- FMVSS No. 126 Compliant
Installation
- Estimated Time: 10 hours
- Difficulty: Moderate
- Special Tools Required: Cut-off wheel or equivalent, reciprocating saw
Important Notes
- The rack and pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase tire diameter and/or decrease wheel backspacing, the system becomes more sensitive and can cause minor steering wheel shimmy.
- Not recommended for AWD models.
- Stock 17-inch and 18-inch wheels cannot be re-installed. Stock 20-inch wheels can be reinstalled with a factory tire.
- Will not fit models equipped with adjustable air suspension.
- This kit will bolt on to Eco-Diesel models but will require an aftermarket front drive shaft.
- TRX models will achieve approximately 1 inch of additional lift. This lift is not recommended for TRX models due to possible CV shaft vibration caused by the additional lift. Consider the 4-inch lift system for approximately 5 inches of lift, or replace TRX struts with standard struts for use with this system.
- This kit is FMVSS No. 126 Compliant.
