This variant includes a 2-inch rear coil spacer paired with FOX 2.0 Performance Series rear shocks. The coil spacer maintains the factory spring and ride characteristics. The FOX 2.0 Performance Series shocks feature a 2-inch impact-extruded aluminum body, an internal floating piston (IFP) monotube design, a 5/8-inch hard chrome-plated heat-treated alloy steel shaft, race-developed high-flow piston design, and application-specific valving. Finished with a long-lasting clear anodized coat. Backed by a 1-year manufacturer's warranty.
Overview

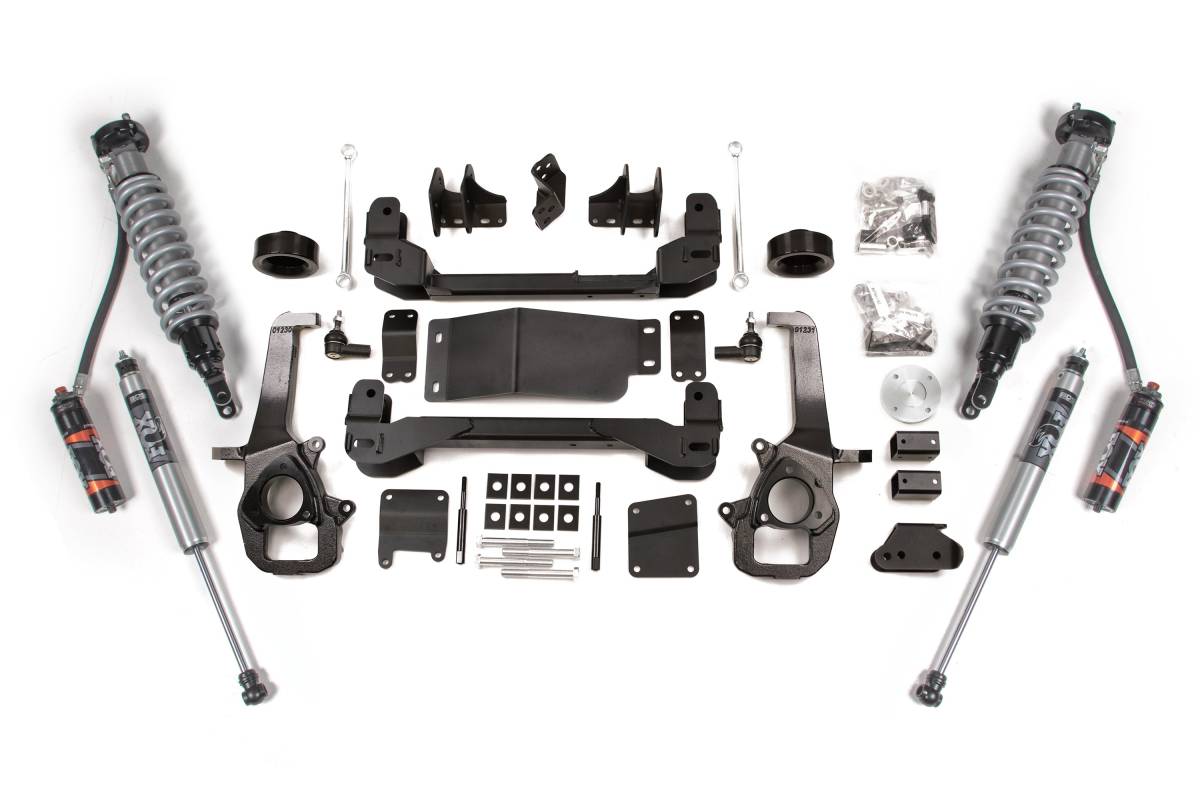

This BDS 4-inch Coilover Lift Kit for the Ram 1500 4WD (2013–2018) and Ram 1500 Classic 4WD (2019–2024) replaces factory components with heavy-duty, high-clearance parts engineered to handle any terrain. The front end is equipped with FOX 2.5 Performance Elite Coilovers with DSC for adjustable damping control on- and off-road, complemented by 1/4-inch steel high-clearance crossmembers, HD skid plates, and CNC-machined ductile iron steering knuckles that maintain proper geometry and ESC system compatibility. The rear lift is available with either a 2-inch coil spacer or 3-inch progressive-rate Pro-Ride coil springs, relocation brackets to correct pinion and axle geometry, and a choice of FOX rear shock. This kit clears up to 35-inch tires and includes Factory Protection Plus drivetrain warranty coverage.
Features
- High-clearance crossmember design maximizes ground clearance
- CNC-machined ductile iron steering knuckles maintain proper geometry and ESC system compliance
- 1/4-inch steel HD skid plate system for improved off-road protection
- Multipoint differential relocation brackets secure the front axle and improve CV angles
- FOX 2.5 Performance Elite Coilovers with DSC (Dual Speed Compression Adjuster) up front
- Choice of FOX 2.5 Performance Elite or FOX 2.0 Performance Series rear shocks
- Choice of 2-inch rear coil spacer or 3-inch progressive-rate Pro-Ride rear coil springs
- Clears up to 35-inch tires
- Factory Protection Plus drivetrain warranty included
- FMVSS No. 126 Compliant
Specifications
- Front lift: 4 inches via FOX 2.5 Performance Elite Coilovers
- Rear lift option: 2-inch impact-extruded coil spacer or 3-inch progressive-rate Pro-Ride coil springs
- Crossmember material: 1/4-inch steel, high-clearance design
- Steering knuckles: CNC-machined ductile iron
- FOX 2.5 Performance Elite Coilover / Rear Shock specs: 2.5-inch impact-extruded aluminum body, 7/8-inch hard chrome-plated heat-treated alloy steel shaft, external reservoir, DSC adjuster, fully serviceable
- FOX 2.0 Performance Series Rear Shock specs: 2-inch impact-extruded aluminum body, IFP monotube design, 5/8-inch hard chrome-plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish, 1-year manufacturer's warranty
- Maximum tire clearance: 35 inches
Installation
- Estimated Time: 10 hours
- Difficulty: Moderate
- Special Tools Required: Cut-off wheel or equivalent, reciprocating saw
Important Notes
- The rack-and-pinion steering system is extremely sensitive to out-of-round or out-of-balance tire/wheel combinations. As tire diameter increases and/or wheel backspacing decreases, the system becomes more sensitive and can cause minor steering wheel shimmy.
- Not recommended for AWD models.
- Stock 17-inch and 18-inch wheels cannot be reinstalled. Stock 20-inch wheels can be reinstalled with a factory tire.
- Will not fit models equipped with adjustable air suspension.
- This kit will bolt on to Eco-Diesel models but will require an aftermarket front driveshaft.
- TRX models will achieve approximately 1 inch of additional lift. This lift is not recommended for TRX models due to possible CV shaft vibration caused by the additional lift. Instead, consider the BDS 4-inch lift system (for approximately 5 inches of lift) or replace TRX struts with standard struts for use with this system.
- This kit is FMVSS No. 126 Compliant.
