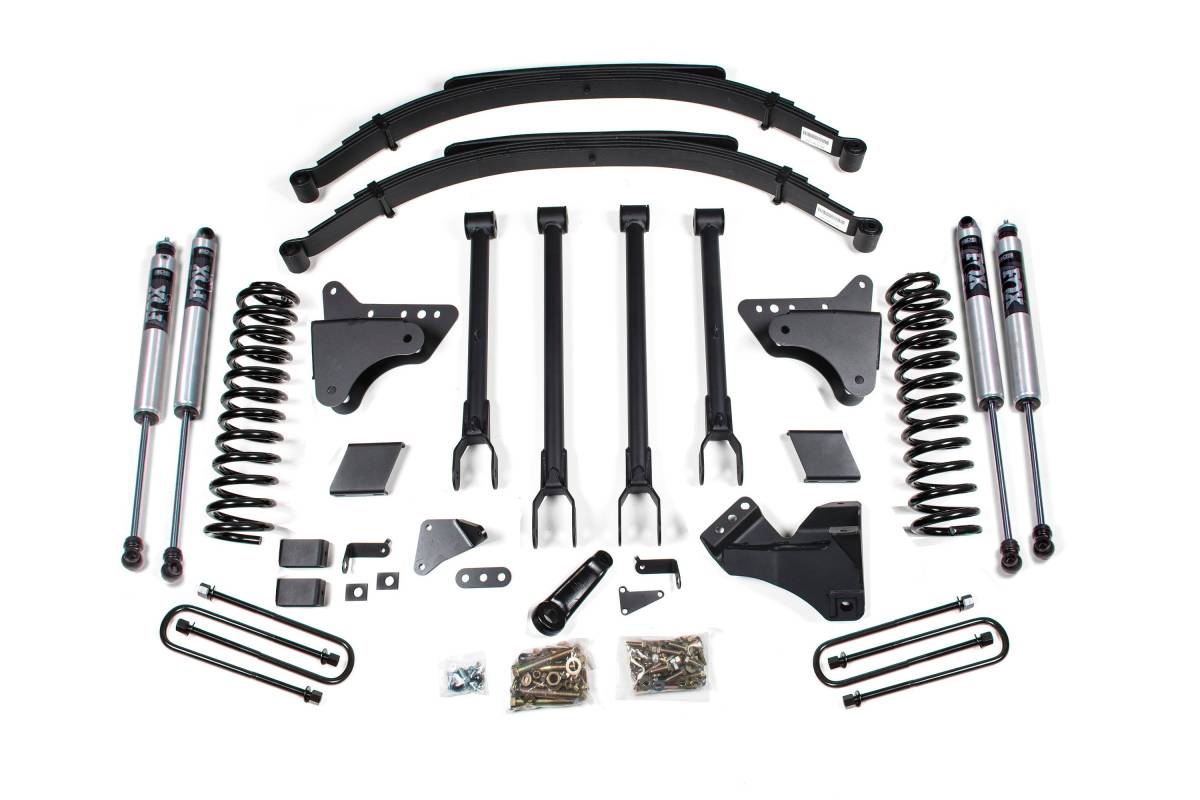

BDS 6 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (2011-2016) 4WD Diesel | Factory 3" Rear Blocks | FOX 2.0 Performance Series

Configured for trucks with factory 3-inch rear blocks. Includes FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

This 6-inch lift kit retains the factory rear blocks with the addition of new BDS leaf springs to achieve a level stance. The leaf spring system operates in three stages: the primary three leafs remain functional under no additional load for everyday ride quality; secondary leafs engage as moderate loads are applied; and the bottom overload engages when the truck is fully loaded for maximum hauling capacity. This setup allows the truck to maintain ride quality when unloaded without sacrificing payload capacity.

Features

• Easy, 100% bolt-on installation
• Pro-Ride coil springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength, and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide a level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Available upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Installation

• Estimated Time: 8 hours
• Difficulty: Difficult
• Special Tools Required: Pitman Arm Puller

Important Notes

• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required. Although extremely rare, front driveline vibration may occur.
• If equipped with rear sway bar, #123009 is required.
• U-bolts will not work on dually models.
