BDS 4 Inch Lift Kit | Ford F250/F350 Super Duty (2011-2016) 4WD Diesel | Leaf Springs | NX2 Nitro Series Shocks

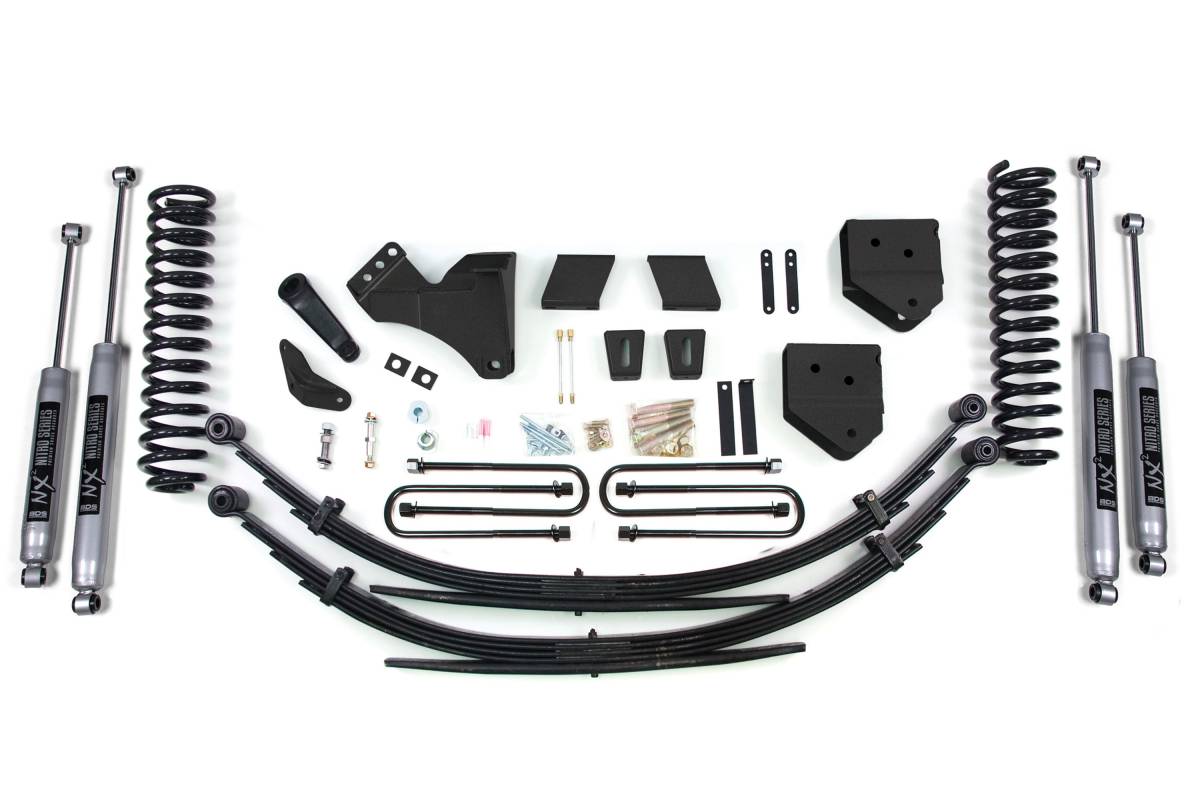

This variant uses a Leaf Springs rear lift configuration paired with NX2 Nitro Series shocks. The multi-leaf progressive design provides a smooth ride while maintaining factory payload weight ratings. NX2 Nitro shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish with vehicle-specific valving for better control.

Overview

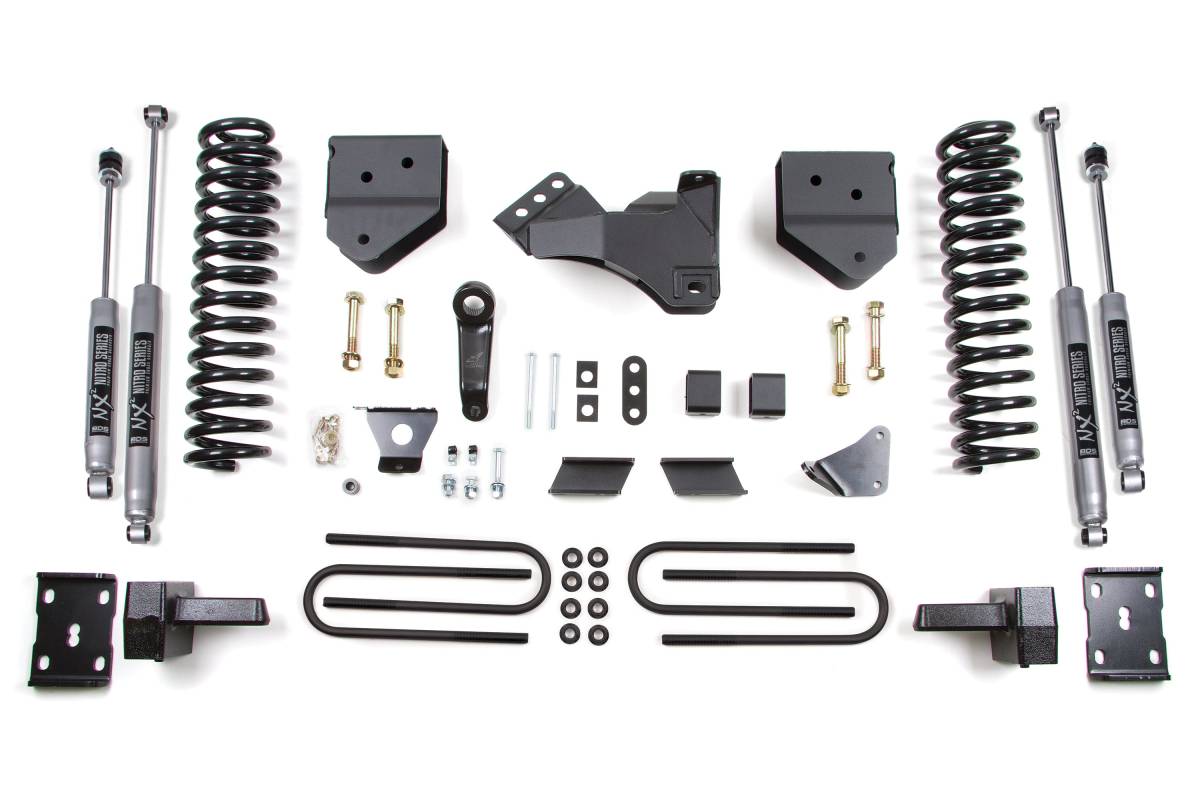

This 4-inch lift kit from BDS Suspension is engineered for 2011–2016 Ford F250 and F350 Super Duty diesel-powered trucks. The kit increases ground clearance, improves stance and capability, and provides clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, a forged drop pitman arm, track bar bracket for steering correction, sway bar relocation, and brake line brackets. In the rear, the kit utilizes a high-strength fabricated lift block or leaf spring option, a u-bolt flip kit for maximum ground clearance, and brake line brackets. Precision-tuned shocks are included in both NX2 Nitro and FOX 2.0 Performance Series configurations.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual-rate coil springs engineered for diesel applications, providing a smooth and predictable ride across various terrains
• Heavy-duty radius arm drop brackets maintain correct caster and stock driving characteristics
• Track bar relocation bracket and forged drop pitman arm maintain proper steering angles for improved handling
• Steel lift blocks with built-in bump stop provide level stance from front to rear
• U-bolt flip kit for maximum rear ground clearance
• Sway bar relocation and brake line brackets included
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Specifications

• Lift height: 4 inches
• Tire clearance: up to 35 inches
• Compatible vehicles: 2011–2016 Ford F250 and F350 Super Duty 4WD Diesel
• Lift blocks: cast iron construction, tapered for correct pinion angle, offset steel pin to restore axle position
• Rear leaf springs (where applicable): multi-leaf progressive design, maintains factory payload weight ratings
• NX2 Nitro shocks: nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, 1-3/8-inch high-flow piston, dual-welded ends, self-lubricating seals, silver powder coat finish
• FOX 2.0 Performance Series shocks: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston, application-specific valving, clear anodized finish

Installation

• Estimated installation time: 8 hours
• Difficulty: Moderate
• Special tools required: Pitman Arm Puller

Important Notes

• Removal of factory block required.
• Rear add-a-leaf is required for models equipped with factory 3-7/8" block for level to tail-high stance. Single add-a-leaf kit #113218 recommended for more level stance. Dual add-a-leaf kit #113209 recommended for tail-high stance. (Add-a-leafs do not apply to rear leaf spring equipped systems.)
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required. Although extremely rare, front and/or rear driveline vibration may occur.
• If equipped with rear sway bar, #123009 is required.
• U-bolts will not work on dually models.
