BDS 4 Inch Lift Kit w/ 4-Link & FOX 2.5 Coil-Over Conversion | Ford F250/F350 Super Duty (2011-2016) 4WD Diesel | Block Kit Rear

This variant includes a Block Kit rear lift option. Cast iron lift blocks are tapered for correct pinion angle, with an offset steel pin and hole to restore axle position. This eliminates the need for an additional lift block, reduces axle wrap, and creates a more controlled and stable feel while maintaining factory payload weight ratings.

Overview

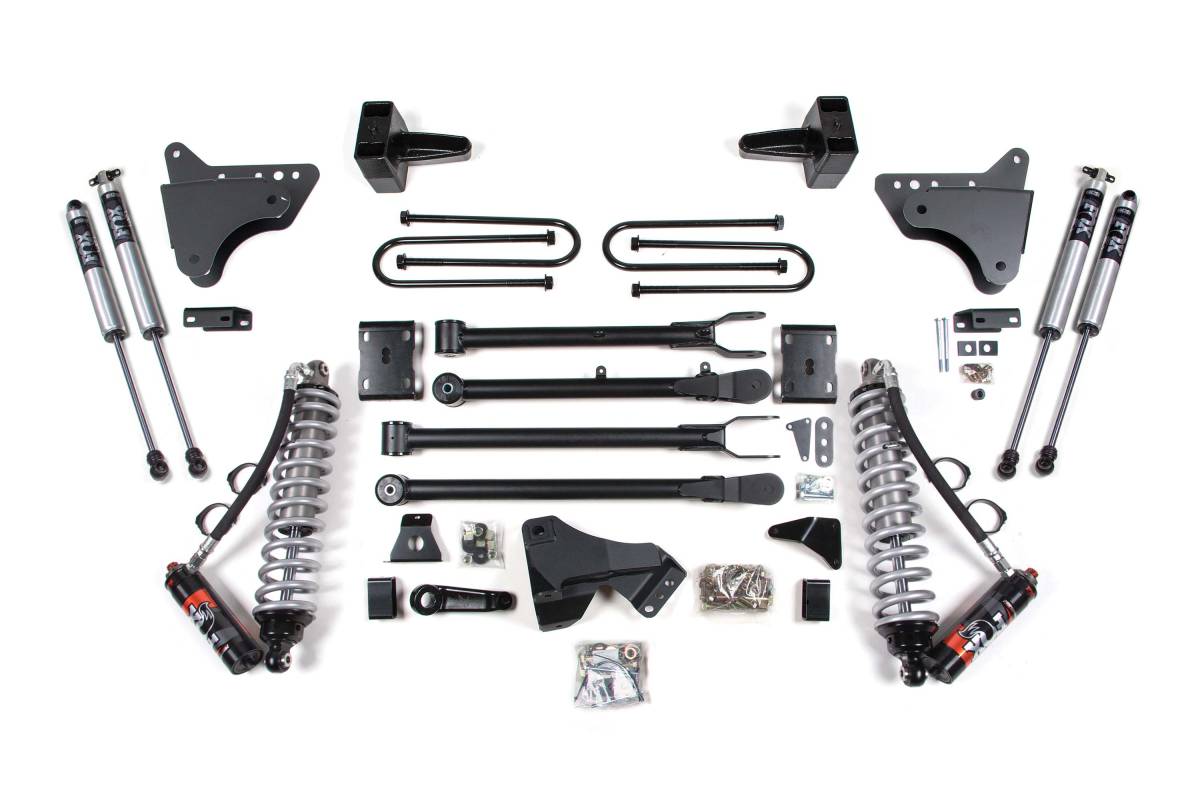

This 4-inch lift kit with FOX 2.5 Performance Elite coil-over and 4-link conversion is designed for 2011–2016 Ford F250 and F350 Super Duty diesel trucks. The kit is engineered to improve stance, performance, and capability, providing clearance for up to 35-inch tires. Up front, the kit includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty 4-link control arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned FOX secondary shocks. In the rear, the kit utilizes a high-strength fabricated lift block, a u-bolt flip kit for maximum ground clearance, brake line brackets, and a matching set of FOX Performance shocks.

FOX 2.5 Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks are tuned and ready to install out of the box. These bolt-on 2.5-inch diameter shocks include a remote reservoir for additional fluid capacity to keep shocks running cool in rough terrain. The DSC adjuster provides 10 separate low-speed and 12 high-speed compression levels via two adjuster knobs. A black anodized aluminum reservoir increases cooling efficiency.

4-Link Conversion

The BDS 4-link conversion replaces the factory stamped steel radius arms to optimize suspension geometry for improved handling, strength, and stability. This bolt-on upgrade uses high-strength 1/4-inch steel brackets with HD upper and lower control arms to correct axle positioning and limit caster change throughout wheel travel.

Steering Correction

A forged drop pitman arm minimizes steering angle change once lifted. A heavy-duty track bar drop bracket keeps steering components in phase through suspension travel while recentering the front axle.

Features

• FOX 2.5 coil-over mounts in factory coil bucket location
• Additional secondary FOX 2.0 shock for maximum performance
• Eibach coil springs for smooth ride through rough terrain
• Heavy-duty 4-link control arms for improved handling, stability, strength, and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles
• Fabricated steel blocks provide level stance front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specifications

• Lift Height: 4 inches
• Vehicle Fitment: 2011–2016 Ford F250/F350 Super Duty 4WD Diesel
• Front: FOX 2.5 Performance Elite coil-over shocks with remote reservoir and DSC adjuster
• Front Secondary: FOX 2.0 shocks
• Rear: FOX Performance shocks with fabricated lift block and u-bolt flip kit
• 4-Link brackets: High-strength 1/4-inch steel construction
• Tire clearance: Up to 35 inches

Installation

• Estimated Time: 9 hours
• Difficulty: Moderate

Important Notes

• Removal of factory block required.
• Rear add-a-leaf is required for models equipped with factory 3-7/8" block for level to tail-high stance. Single add-a-leaf kit #113218 recommended for more level stance. Dual add-a-leaf kit #113209 recommended for tail-high stance. (Add-a-leafs do not apply to rear leaf spring equipped systems.)
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required. Although extremely rare, front and/or rear driveline vibration may occur.
• If equipped with rear sway bar, #123009 required.
• U-bolts will not work on dually.
