BDS 4 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (2011-2016) 4WD Gas | Leaf Springs | NX2 Nitro Series Shocks

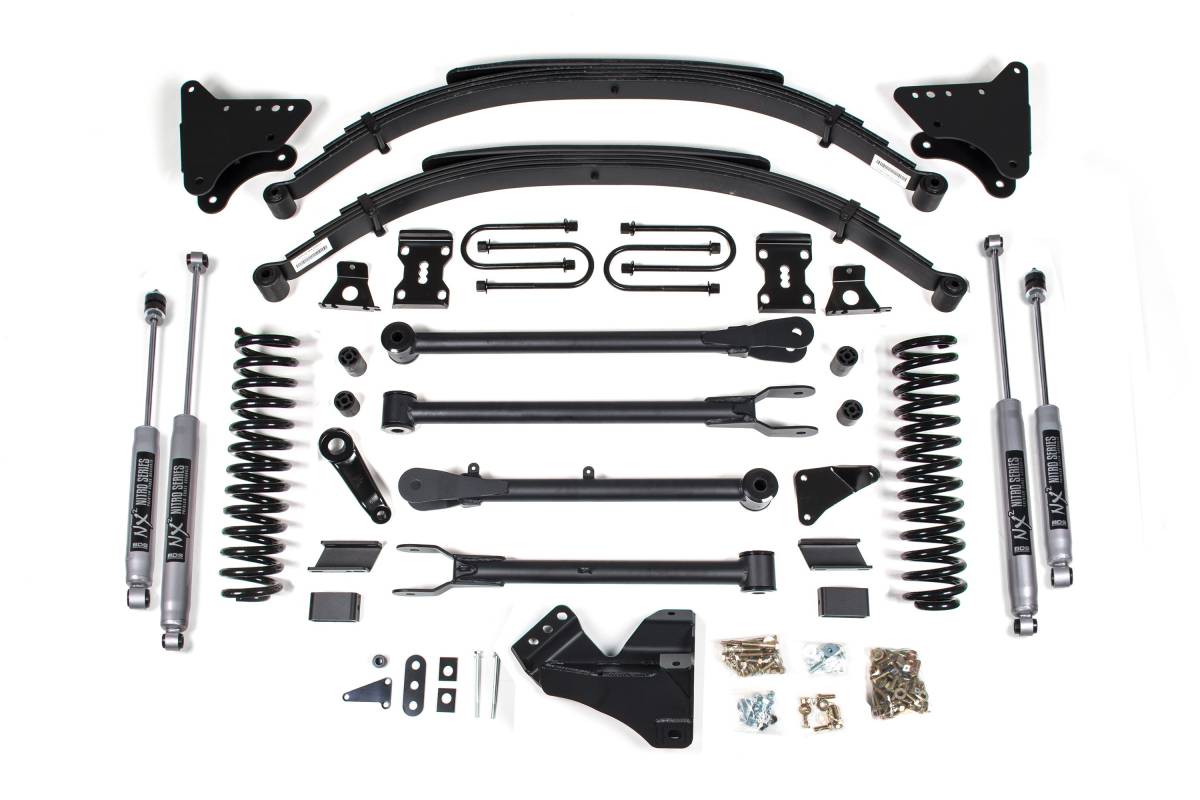

This variant uses a Leaf Springs rear lift configuration, providing a smooth, progressive ride while maintaining factory payload weight ratings.

Equipped with NX2 Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish. Vehicle-specific valving provides better control on and off-road.

Overview

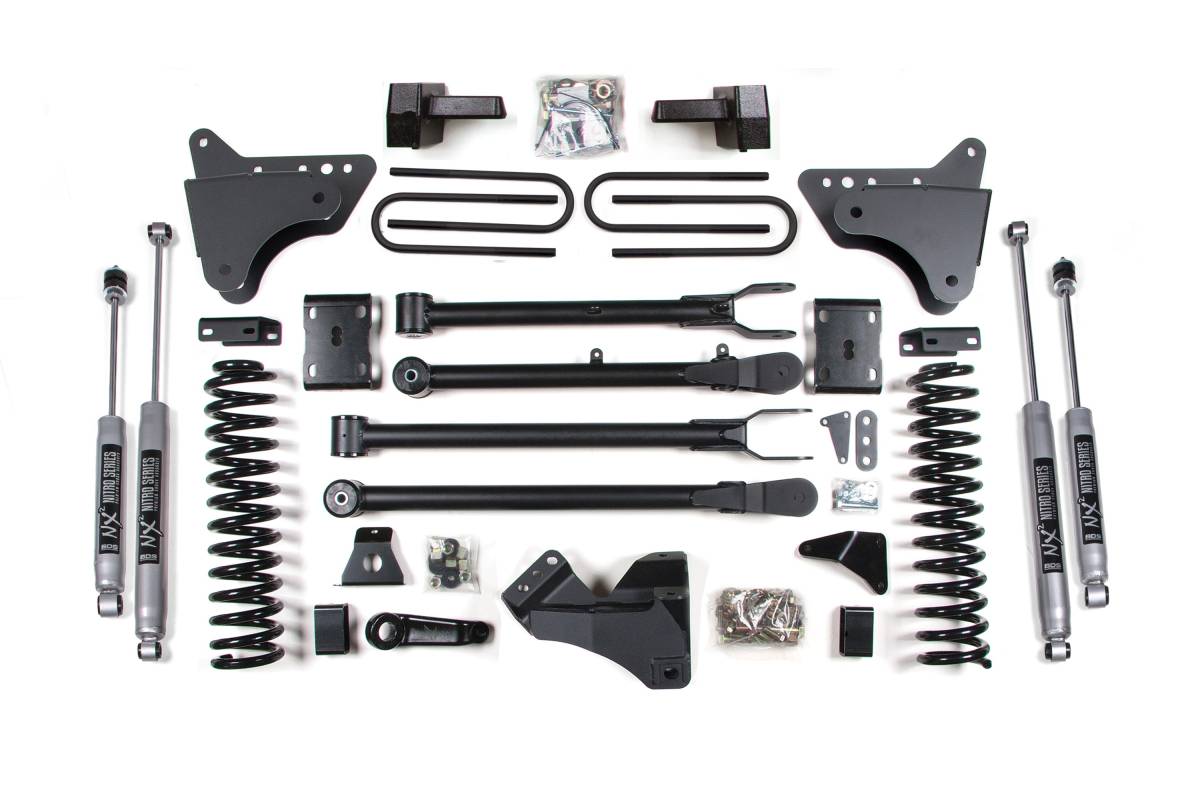

This 4-inch lift kit with 4-Link conversion from BDS Suspension is designed for 2011–2016 Ford F250 and F350 Super Duty gas-powered trucks. The kit is engineered to improve stance, performance, and capability, providing clearance for up to 35-inch tires. Up front, it includes gas-specific Pro-Ride coil springs, 4-Link control arms with conversion brackets, a forged drop pitman arm, track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned nitrogen-charged shocks. In the rear, the kit utilizes a high-strength fabricated lift block or leaf springs (depending on variant), a u-bolt flip kit for maximum clearance, and brake line brackets.

4-Link Conversion

The BDS 4-Link conversion replaces the factory stamped steel radius arms to optimize suspension geometry for improved handling, strength, and stability. This bolt-on upgrade uses high-strength 1/4-inch steel brackets to mount HD upper and lower control arms, correcting axle positioning and limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, gas-specific Pro-Ride coil springs provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

A forged drop pitman arm minimizes steering angle, paired with a heavy-duty track bar drop bracket to keep steering geometry in phase through suspension travel while recentering the front axle.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual rate coil springs for smooth ride across any terrain
• Heavy-duty 4-Link control arms for improved handling, stability, strength, and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide a level stance from front to rear (Block Kit variants)
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Available upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Specifications

• Lift Height: 4 inches
• Vehicle Fitment: 2011–2016 Ford F250 / F350 Super Duty 4WD Gas
• Tire Clearance: Up to 35 inches
• 4-Link brackets: High-strength 1/4-inch steel construction
• Rear lift blocks (Block Kit): Cast iron, tapered for correct pinion angle, offset steel pin and hole to restore axle position
• Rear lift blocks: Multi-leaf progressive design; maintains factory payload weight ratings
• NX2 Nitro Shocks: Nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, silver powder coat finish
• FOX 2.0 Performance Series Shocks: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Special Tools Required: Cut-off Tool, Pitman Arm Puller

Important Notes

• Removal of factory block required.
• Rear add-a-leaf is required for models equipped with factory 3-7/8" block for level to tail-high stance. Single add-a-leaf kit #113218 recommended for more level stance; dual add-a-leaf kit #113209 recommended for tail-high stance. (Add-a-leafs do not apply to rear leaf spring equipped systems.)
• Front exhaust modification may be required to clear front drive shaft (gas only).
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
• Although extremely rare, front and/or rear driveline vibration may occur.
• If equipped with rear sway bar, #123009 is required.
• U-bolts will not work on dually models.
